MECHANI
CAL INSTALLATI
ON
40
AV7000 LINEAR CAMERA
MIRROR BRACKET PRE-ASSEMBL
Y
Mounting br
acke
ts are designed for quick and simple mounting. These brack
ets can be
mounted in all configur
ations. Re
ference slots f
or all
s
tandard mounting angles can be
made without the use of special tools.

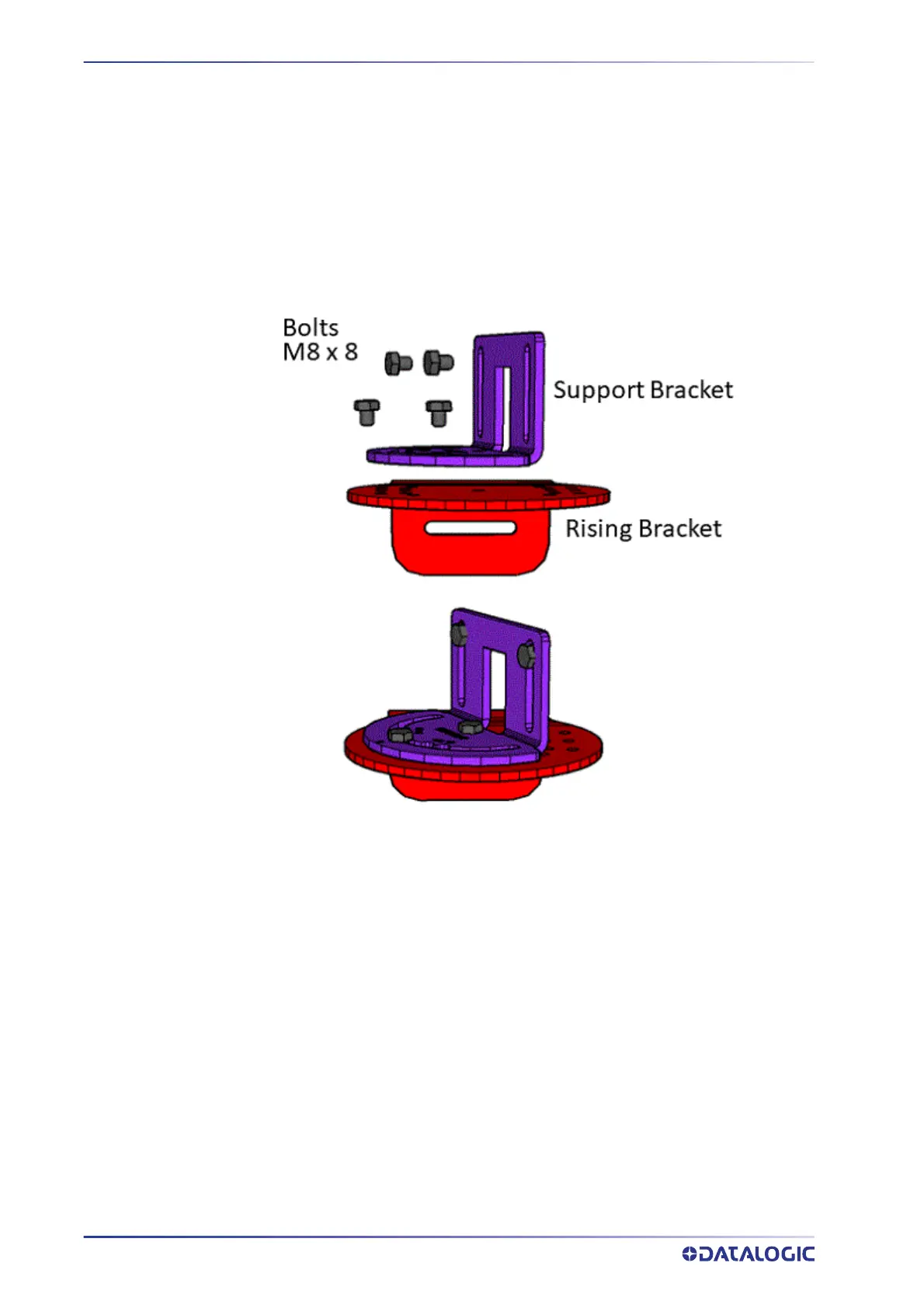

The Mirror Br
acke
t kit included
with the Camera c
ontains all you need.
T
op or side mount mirror positions
require the f
ollowing pre-assembly of the br
acket.
59
61
