PRODUCT REFERENCE GUIDE
161
Logical Combination

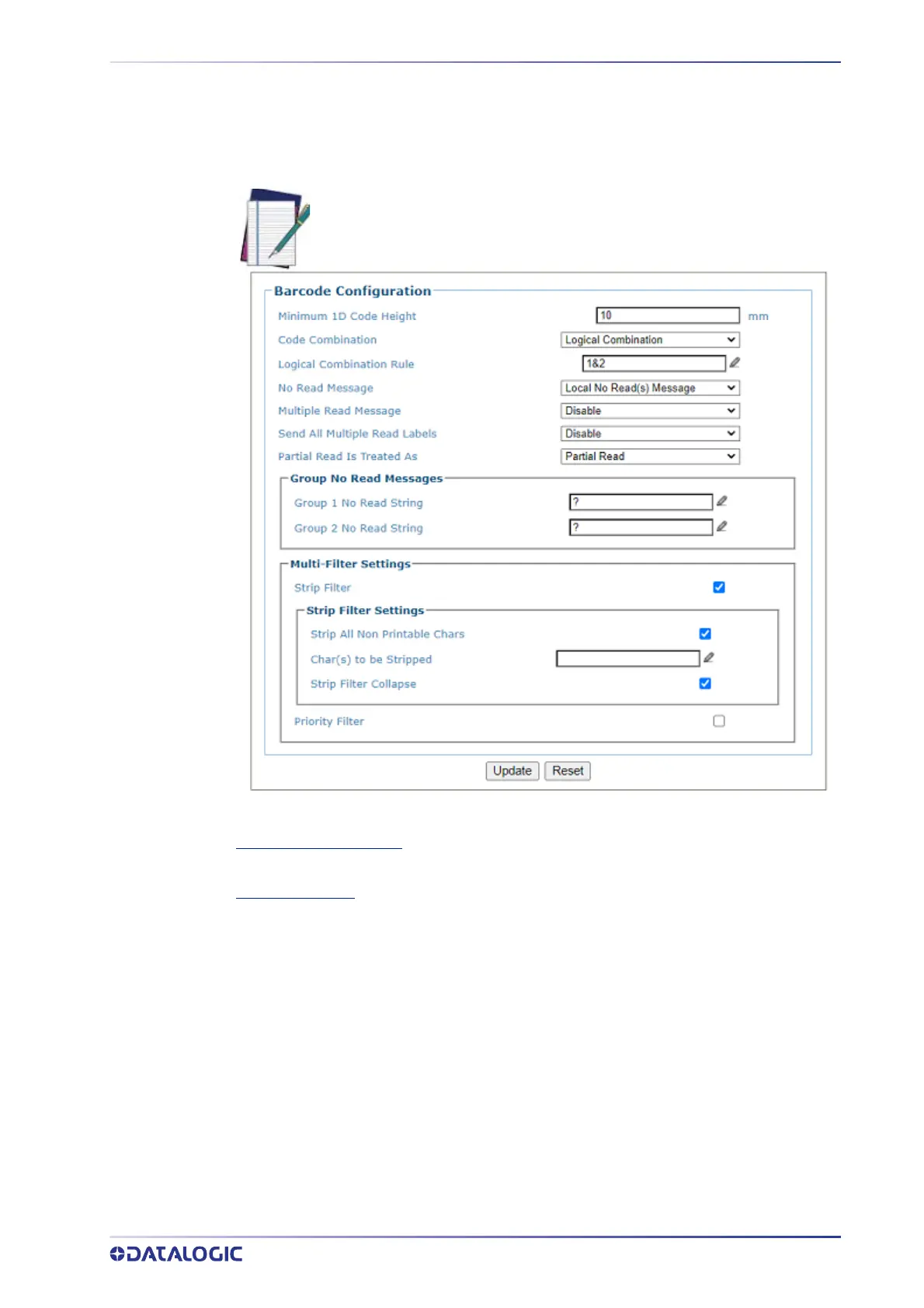

When Logical Combination has been selected from the Code Combination drop-down
list, the Barcode Configuration window reveals related input fields. In Logical Combina-
tion, you can define groups of codes from the c
odes set in the Barcode Setting Table
which can be read within a trigger cycle. You can define up to 15 groups.
1. Enter the appropriate information in the form as described below:
Minimum 1D Code Height
Enter the minimum code height in the field provided (mm [in]).
Code Combination
Logical Combination has been selected.
NOTE: The Logical Combination option is only available when two or more
codes are enabled in the Barcode Settings Table.
To Next Page
