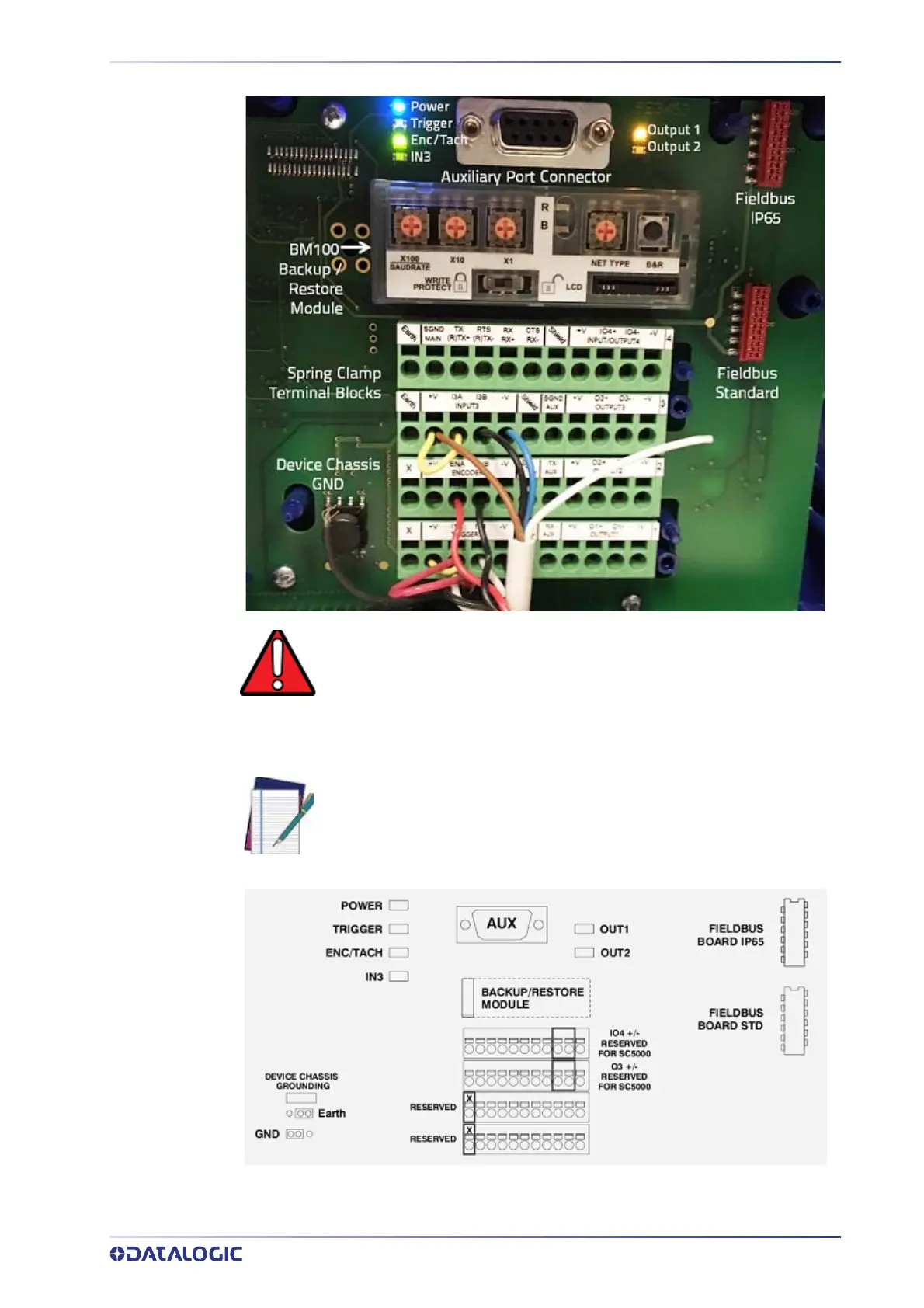

CBX 510 Interior Diagram
WARNING: If you are terminating more than one wire in a single terminal,
cut off any tinned ends and twist the wires together before inserting them
into the terminal.
NOTE: If you are terminating more than one wire in a single terminal, cut
off any tinned
ends and twist the wires together before inserting them into
the terminal.
