AV7000 TIMING AND DISTANCE DIAGRAMS
PRODUCT REFERENCE GUIDE 129
AV7000 TIMING AND DISTANCE DIAGRAMS
Positioning and timing are critical to your system operations. Here we identify the dis-
tance/timing between the photo sensor, position sensor, and AV7000 camera in several
typic
al installations. It includes:
• Distance from trigger source to position sensor
• Distance from position sensor to AV7000
• DM3610/Dual Headed scan line to DM3610 focus data transmit point
• AV7000 look-ahead distance for corner search

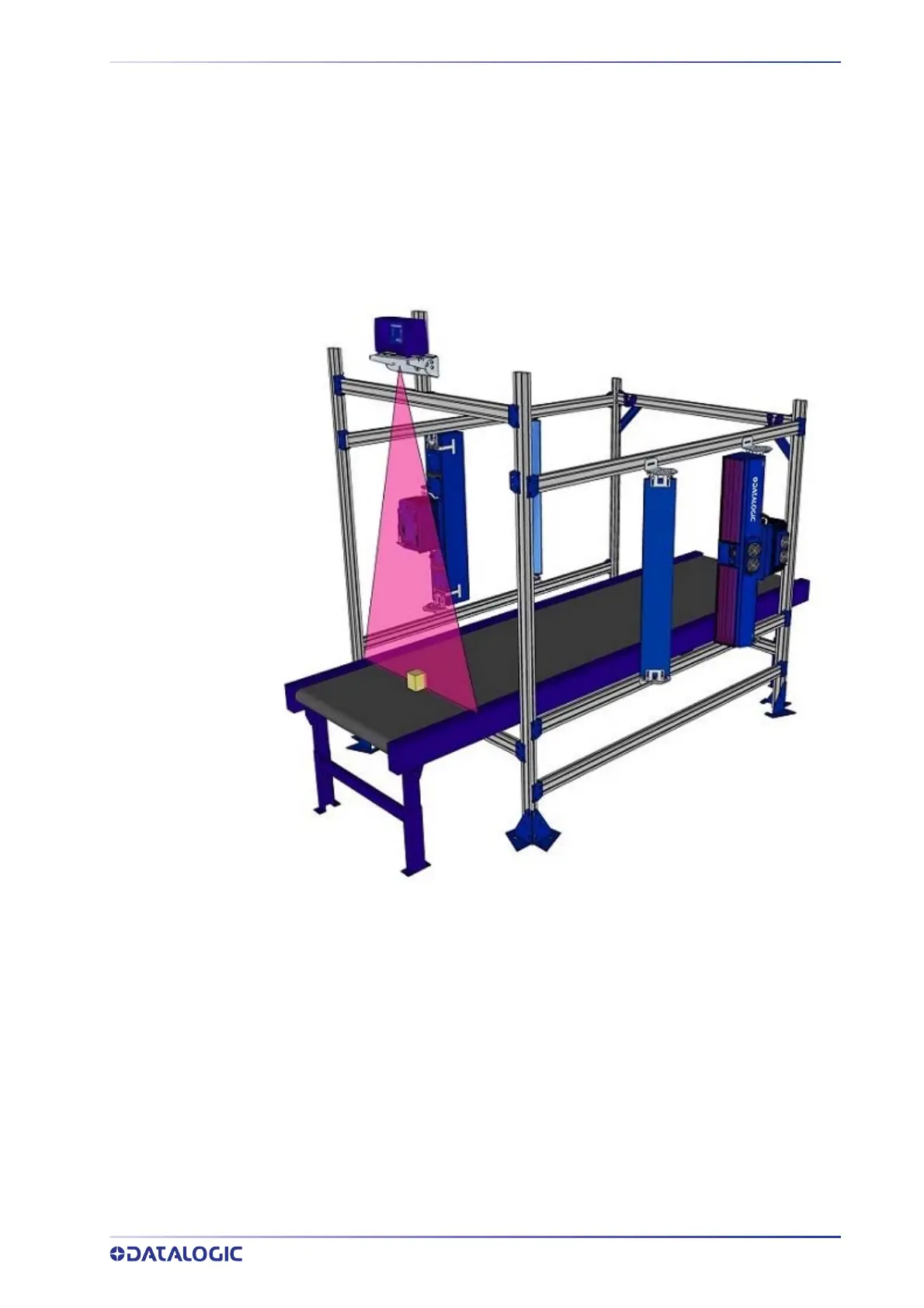

Two Side Mounted AV7000 and a Single DM3610
