MAINTENANCE
410
AV7000 LINEAR CAMERA

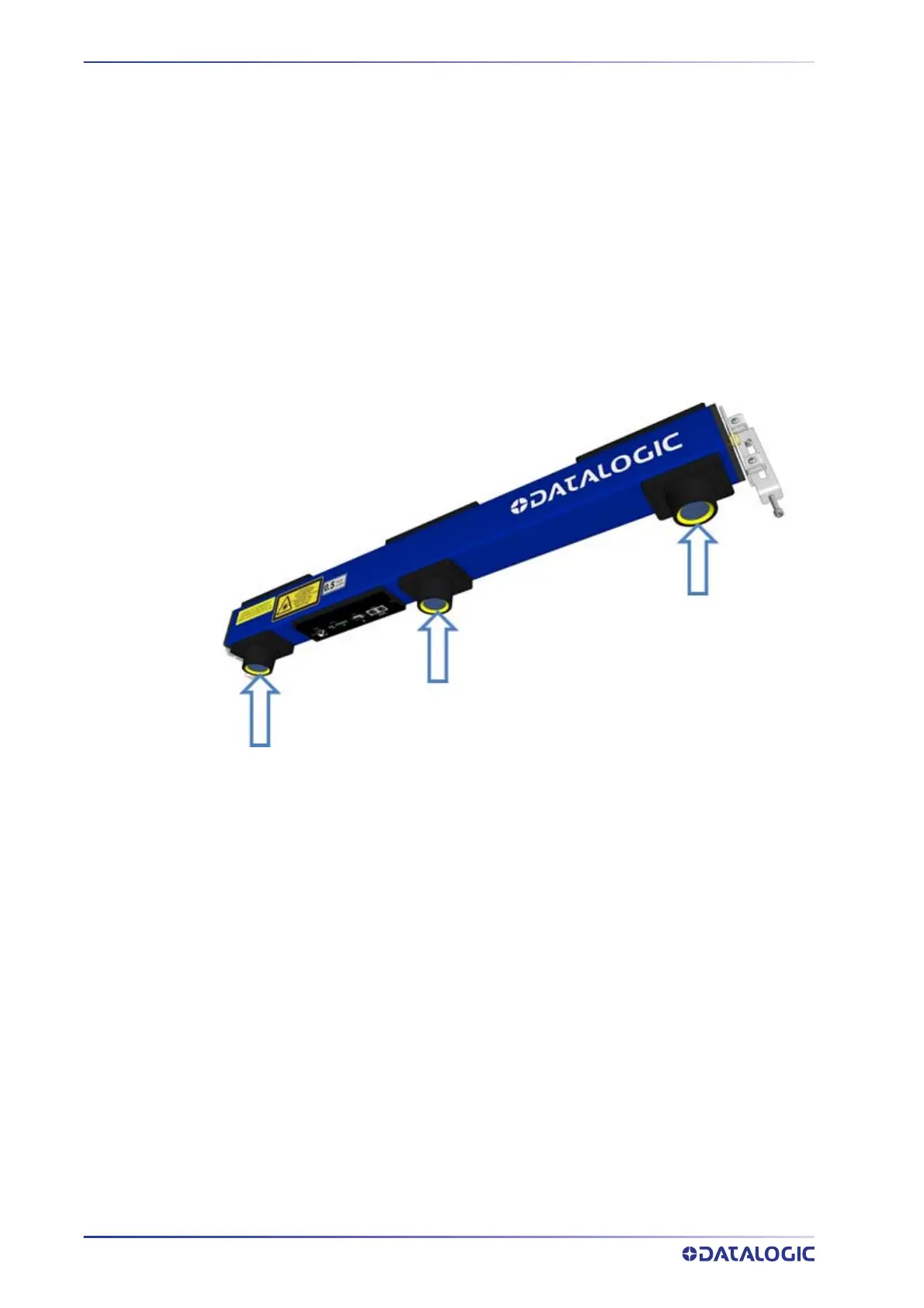

4. Check the windows for any dust, dirt, or smudges. If the window needs to be
cleaned.
5. Use a dry, soft, lint-free cloth to remove accumulated dust.
6. If the windows are particularly dirty or smudged, make a solution of seven parts
dena
tured alcohol and three parts water. (Many over-the-counter solutions will
leave deposits/smudges that can affect performance.)
7. Apply the cleaning solution to a cotton swab or lint-free cloth.
8. Apply the cleaning solution to the windows.
9. Remove any streaks or remaining moisture with a dry, soft, lint-free cloth or lens
pap
er.
10. Verify RangeFinder operation.
Cleaning the Photoelectric Sensor
If your application uses the photoelectric sensor option as a hardware trigger, be sure to
clean the photoelectric sensor periodically as outlined below.
1. Switch off the conveyor.
2. Switch off the camera system.
3. Clean the photoelectric sensor’s lens using
the denatured alcohol solution and a
cotton swab or lens paper.
4. Clean the reflector using the denatured alcohol solution and a cotton swab or lens
pap
er.
5. Verify photoelectric sensor operation.
