PRODUCT REFERENCE GUIDE
265
Select 1 or 2 from the drop-down list. Stop Bits is a parameter indicating the number of stop
bits in the data packet of the communication protocol frame.
Serial Communication Type
Select RS422 Full Duplex or RS232 from the drop-down list.
3. When you have finished making changes, click Update to save or click Reset to
revert to the previously saved values.

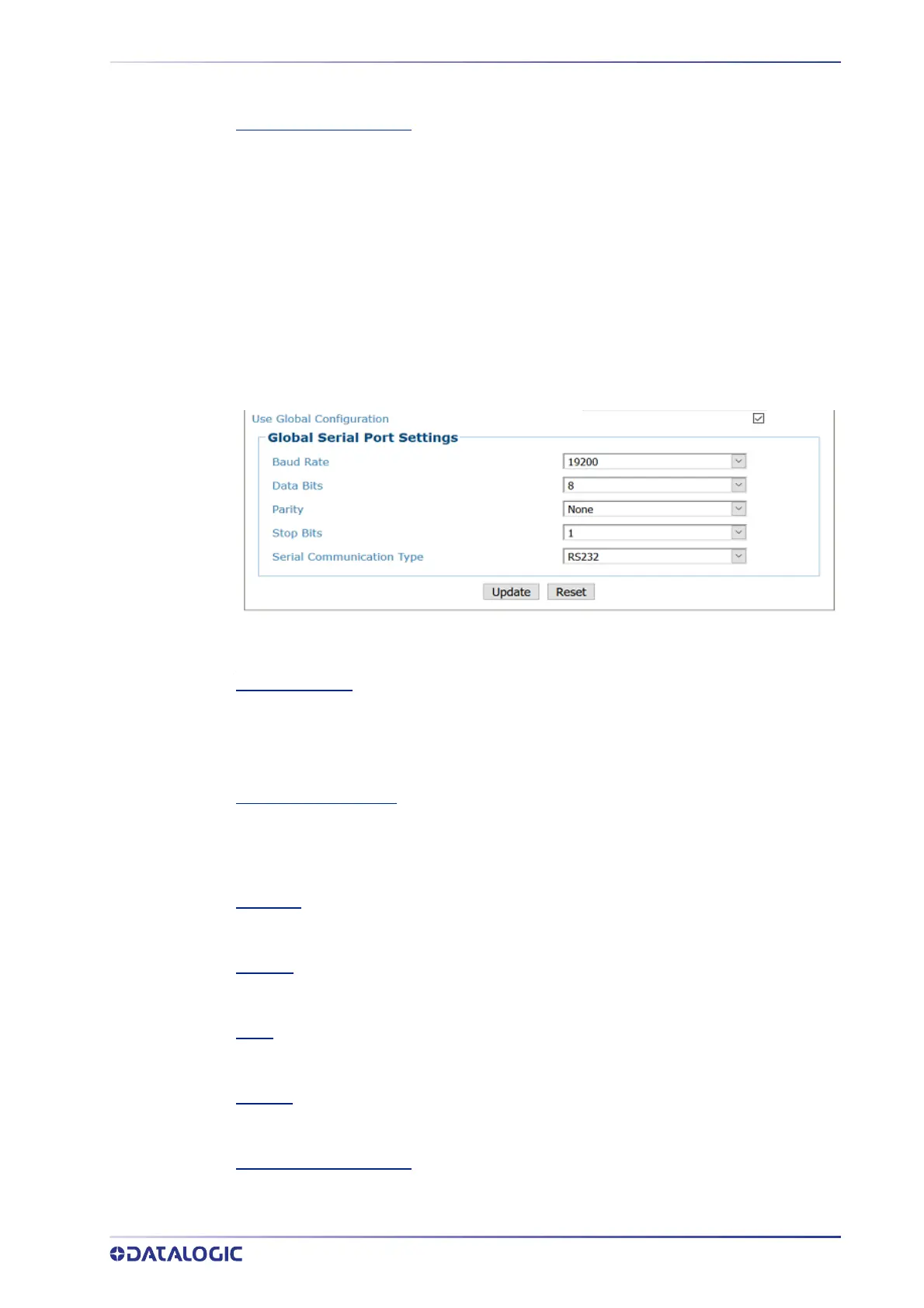

Host Port Settings
Use the Host Port window to configure communication between the camera and the
focusing device. The focus port is only used to match the focus device’s communication
configuration (light curtain, DM3610).
To edit the Host Port settings:
1. In the menu tree under Modify Settings, navigate to Modify Settings | Device
Settings | Camera N | Host Port Settings. The Host Port Settings window opens.
2. Enter the appropriate information in the form as described below:
Use Serial Port for
Select one of the following from the drop-down:
Host Interface: The Host Interface is used to communicate with the customers serial
interface. The AV700 can either communicate RS232 or RS422.
Focus Input: The Focus Input is used to communicate with the focus device.
Use Global Configuration
Select the check box when using a serial focus device for one or more cameras. When the Use
Global Configuration is selected all 's in the array can identify the Serial message from the
Host/Focus input.
When it is not selected the menu will give the option of selecting a single AV7000 in the array.
Baud Rate
Select a value from 1200 to 115200 from the drop-down list. Baud Rate is the transmission
speed in a communication line.
Data Bits
Select 7 or 8 from the drop-down list. Data Bits is a parameter indicating the number of bits
composing the data packet of the communication protocol frame.
Parity
Select None, Odd, or Even from the drop-down list. Parity is a parameter indicating the
presence of a control bit in the communication protocol frame.
Stop Bits
Select 1 or 2 from the drop-down list. Stop Bits is a parameter indicating the number of stop
bits in the data packet of the communication protocol frame.
Serial Communication Type
Select RS422 Full Duplex or RS232 from the drop-down list.
