PRODUCT REFERENCE GUIDE
293

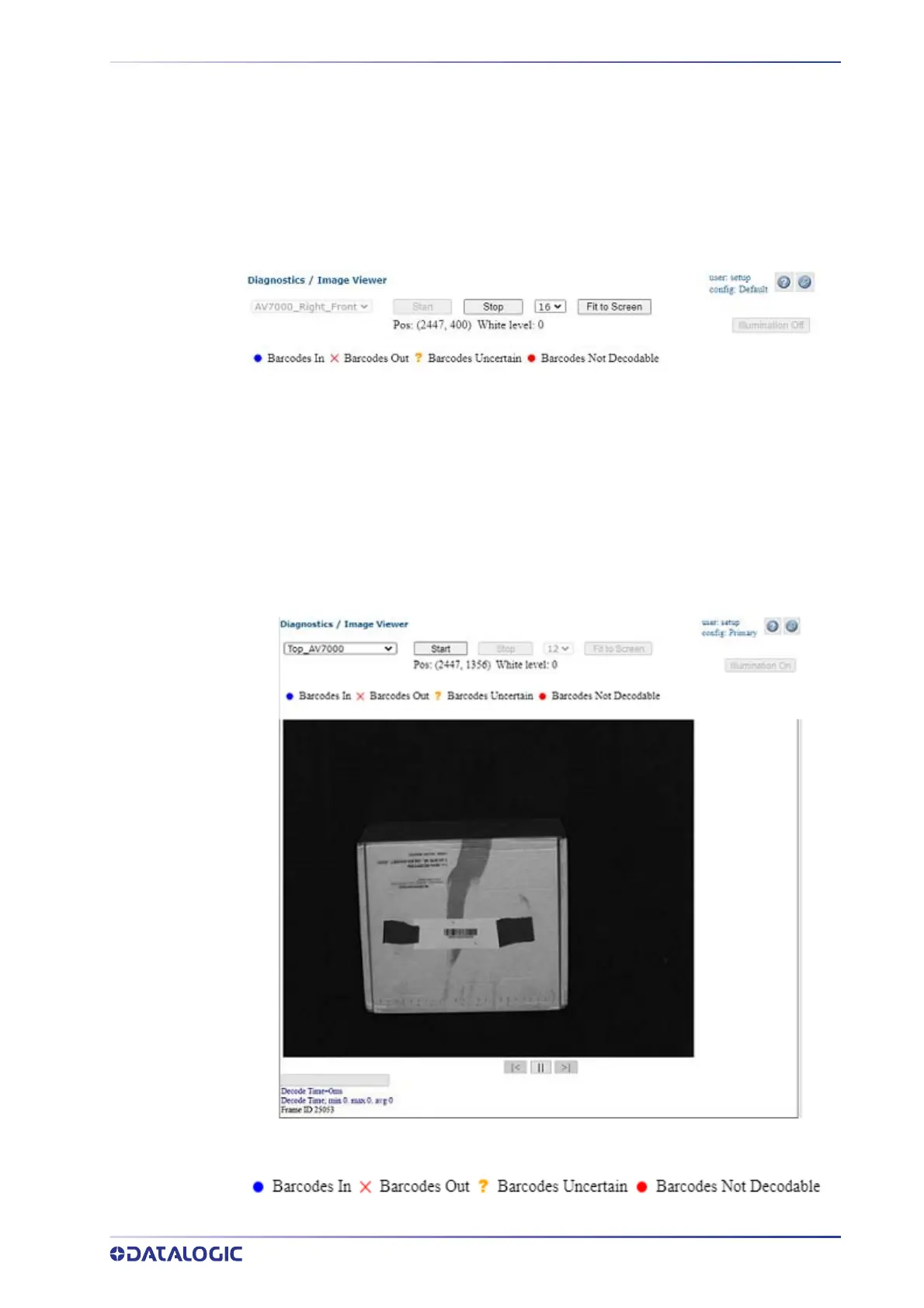

Diagnostics | Image Viewer
Use the Image Viewer window to view and assess image quality and verify the Pack-
Track calibration.
To access the Image Viewer window:
1. In the menu tree under Diagnostics, click Image Viewer. The Image Viewer win-
dow opens.
2. Select a
device (named camera) from the drop-down list.
3. Select whether to view:
•Live
•Processed: Used to view live product flow
•
Verify: Used to test the PackTrack calibration. Place a code on the conveyor
within the camera read area. The camera will post what it perceives as the XYZ
position.
4. Select
Live and click Start to view live captured images. The Image Viewer cap-
tures an image of the box. The White Level is displayed based on where the cursor
is posi
tioned. Toggle the
Illumination On/Off.
5. Each package is labeled with its sequence number and read status:
