198 AV7000 LINEAR CAMERA
7. Enter a Header and Terminator for the incoming message from the scale in the
fields provided. Use the
to “Enter Text with the Text Entry Tool” on
page 92 to create the Header and Terminator, in this example <STX> and <ETX>.
8. Select a length for the message from the Length Type drop-down list. In this
example
Variable Length is selected.
9. Enter
NoScale for the No Index String. This means “NoScale” will be attached to
the outgoing host message if nothing is received from the scale.
10. Select
Trailing from the Reference Edge drop-down list. This indicates the back/
trailing edge of the box is the reference point. Trailing is the normal setting for a
message from scale.
11. In the
Distance to Trigger Line, enter the measured distance from the trigger to
the expected scale transmission location on the conveyor belt. This distance will
have been set up in the scale configuration. This parameter specifies the distance
from the Trigger Line (Trigger Source) to the expected receiving point of the Proto-
col Index. It is used together with the Minimum Distance between Two Consecu-
tive Parcels parameter to assign the Protocol Index information to the correct
pack.
12. Select
Upstream or Downstream from the Distance to Trigger Line State.
13. Enter a distance in the
Min Distance between Two Consecutive Objects text field.
This specifies the minimum distance (in mm) between two consecutive packages.
It is used to compensate for imprecision in the Distance from Protocol Index to
Trigger Line parameter by virtually lengthening the package.
Configuration Host Message with Protocol Index

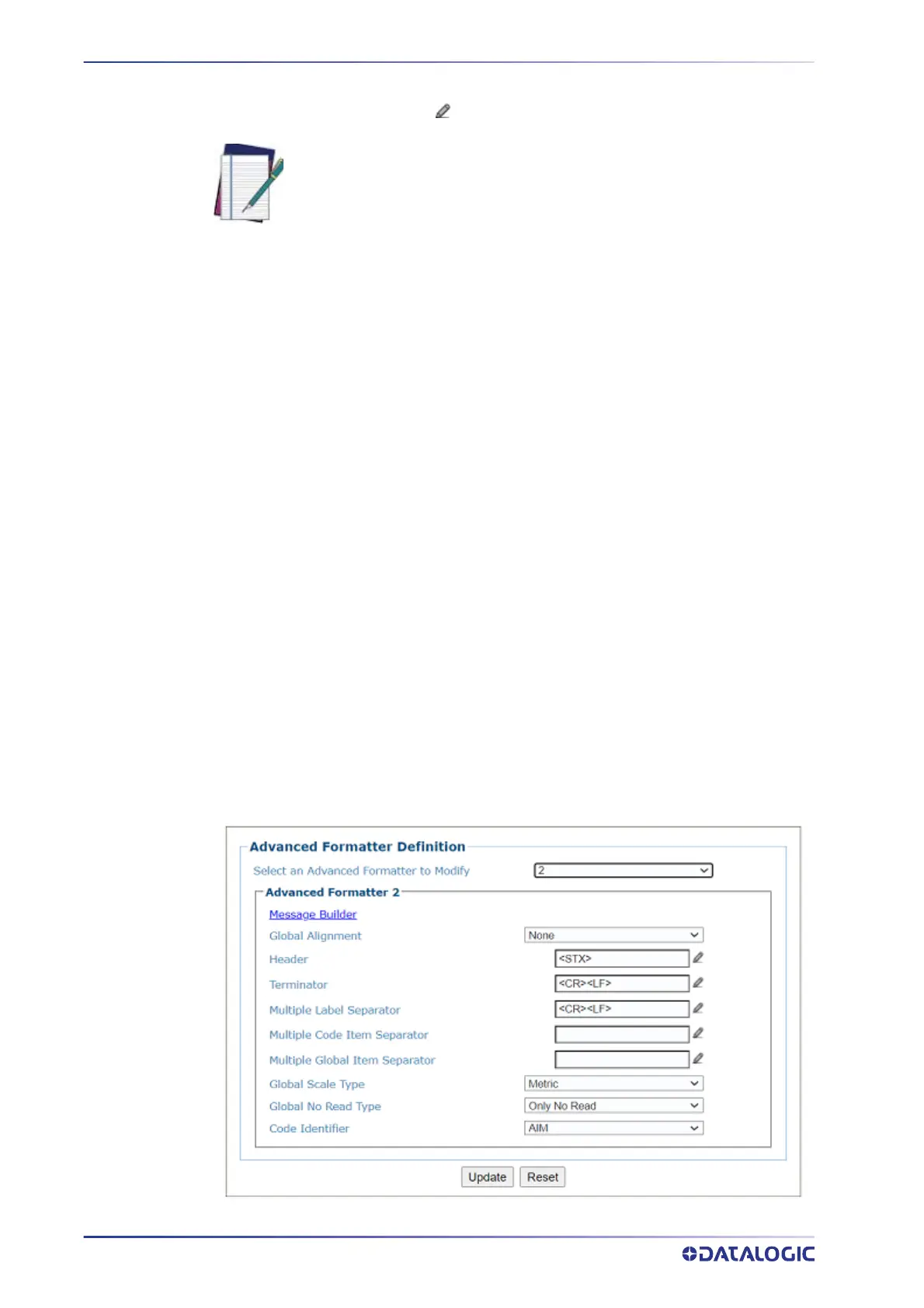

Navigate to Modify Settings | Global Settings | Output Format | Advanced Formatter.
the Advanced formatter window opens
NOTE: The header and terminator must match the Protocol Index source, in
this case, the scale structures.
