AV7000 LINEAR CAMERA
ALIGNING THE AV7000 WITH DEFLECTION MIRRORS
When using deflection mirrors with the AV7000 reader, which is typical, the mirrors
must be mounted parallel to the reader and at the correct distance to allow for proper
focus and the highest read rate. Reference the system’s application drawing.

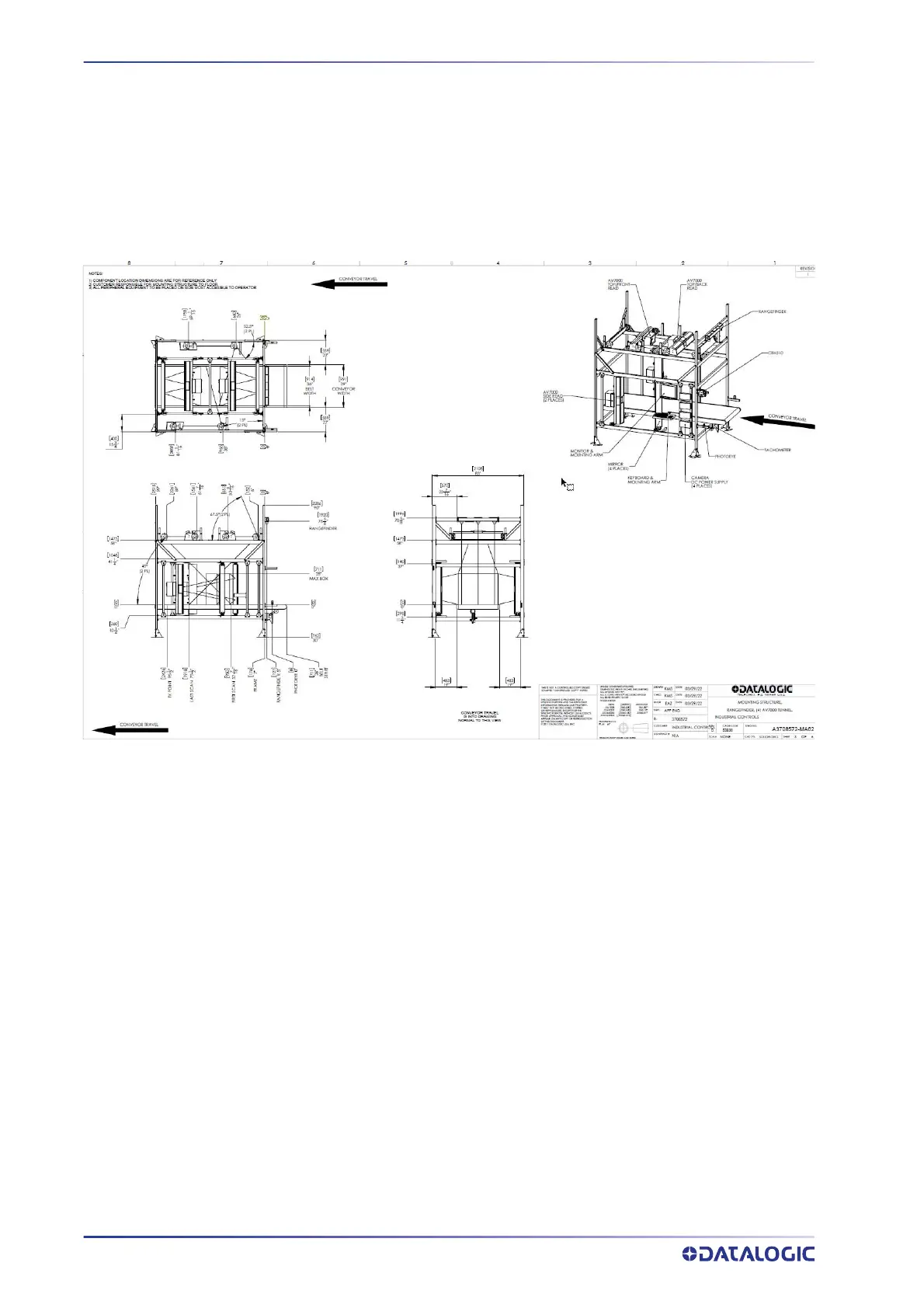

Below is a sample of one of the many diagrams that come with your application specific
dr
awing package.
When mounting the readers and mirrors, make sure:
• the structure is centered and squared to the conveyor
• deflection mirrors and readers are perpendicular to the structure rails
• deflection mirrors are parallel to their AV7000
• deflection mirror does not twist when mounted
