AV7000 LINEAR CAMERA
Device Settings | Camera #n | Serial Port
Use the Serial Port menu selections to set up communications through the serial Port.
If necessary, you can later make modifications to the device settings using the same
menu selections, including:
• “Focus Port Settings” on page 264
• “Host Port Settings” on page 265
• “Aux Port Settings” on page 266
Focus Port Settings

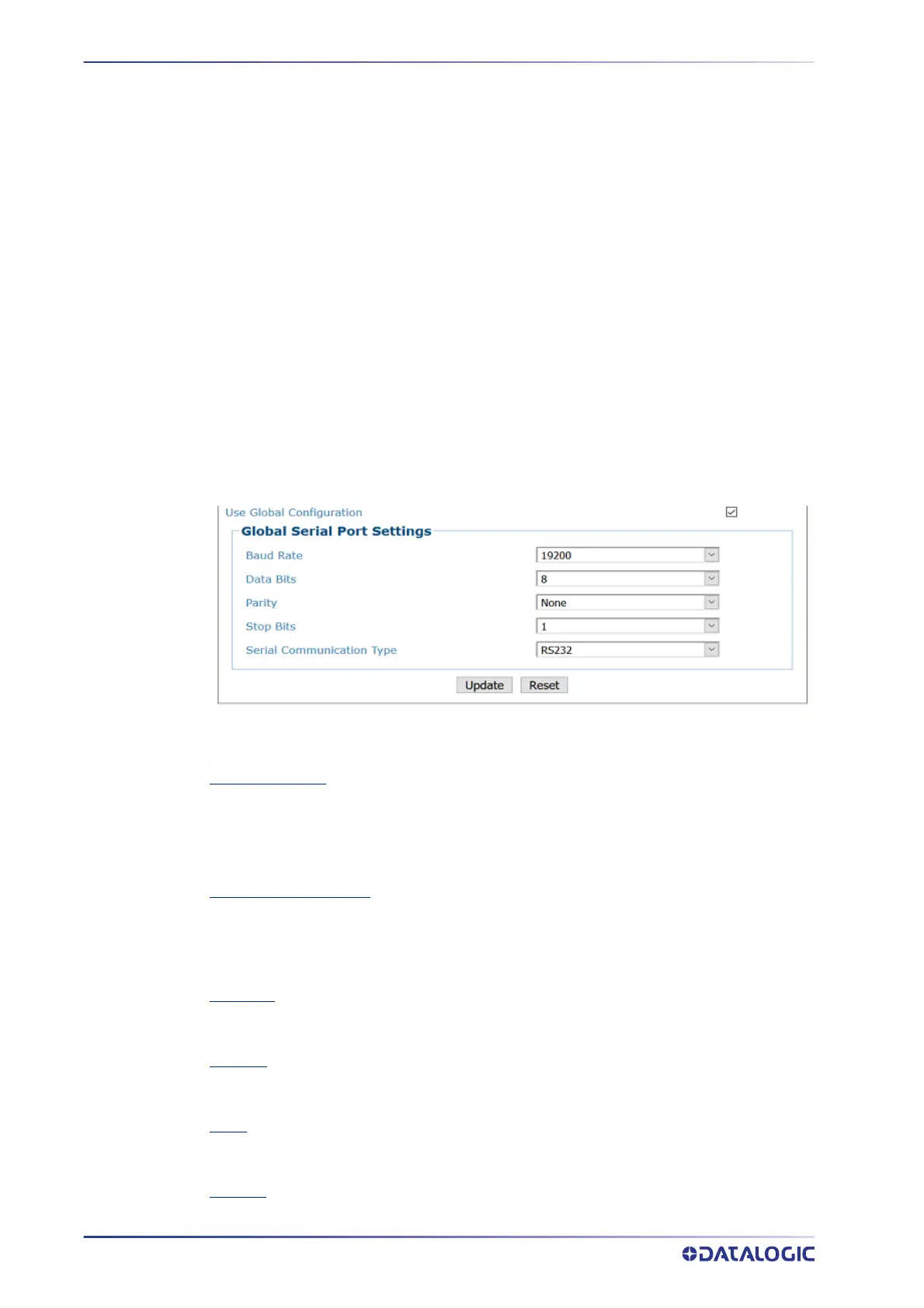

Use the Focus Port window to configure communication between the camera and the
focusing device. The focus port is only used to match the focus device’s communication
configuration (light curtain, DM3610).
To edit the Focus Port settings:
1. In the menu tree under Modify Settings, navigate to Modify Settings | Device
Settings | Camera N | Focus Port Settings
. The Focus Port Settings window
opens.
2. Enter the appropriate information in the form as described below:
Use Serial Port for
Select one of the following from the drop-down:
Host Interface: The Host Interface is used to communicate with the customers serial
interface. The AV7000 can either communicate RS232 or RS422.
Focus Input: The Focus Input is used to communicate with the focus device.
Use Global Configuration
Select the check box when using a serial focus device for one or more cameras. When the Use
Global Configuration is selected all 's in the array can identify the Serial message from the
Host/Focus input.
When it is not selected the menu will give the option of selecting a single AV7000 in the array.
Baud Rate
Select a value from 1200 to 115200 from the drop-down list. Baud Rate is the transmission
speed in a communication line.
Data Bits
Select 7 or 8 from the drop-down list. Data Bits is a parameter indicating the number of bits
composing the data packet of the communication protocol frame.
Parity
Select None, Odd, or Even from the drop-down list. Parity is a parameter indicating the
presence of a control bit in the communication protocol frame.
Stop Bits
