FOCUSING SETUP AND CALIBRATION
380
AV7000 LINEAR CAMERA
• set_gain (this command will return with the current gain setting)
Setting the RangeFinder Gain
1. Place white printer paper across the conveyor under the RangeFinder
2. Open the RangerOScope application to view the signal.
3. Select the left pattern generator and compar
e its signal to the right pattern gener-
ator. Both signals should be symmetrical.
The RangerOScope and CodeWord Viewer allows for turning on/off the dis-
play for

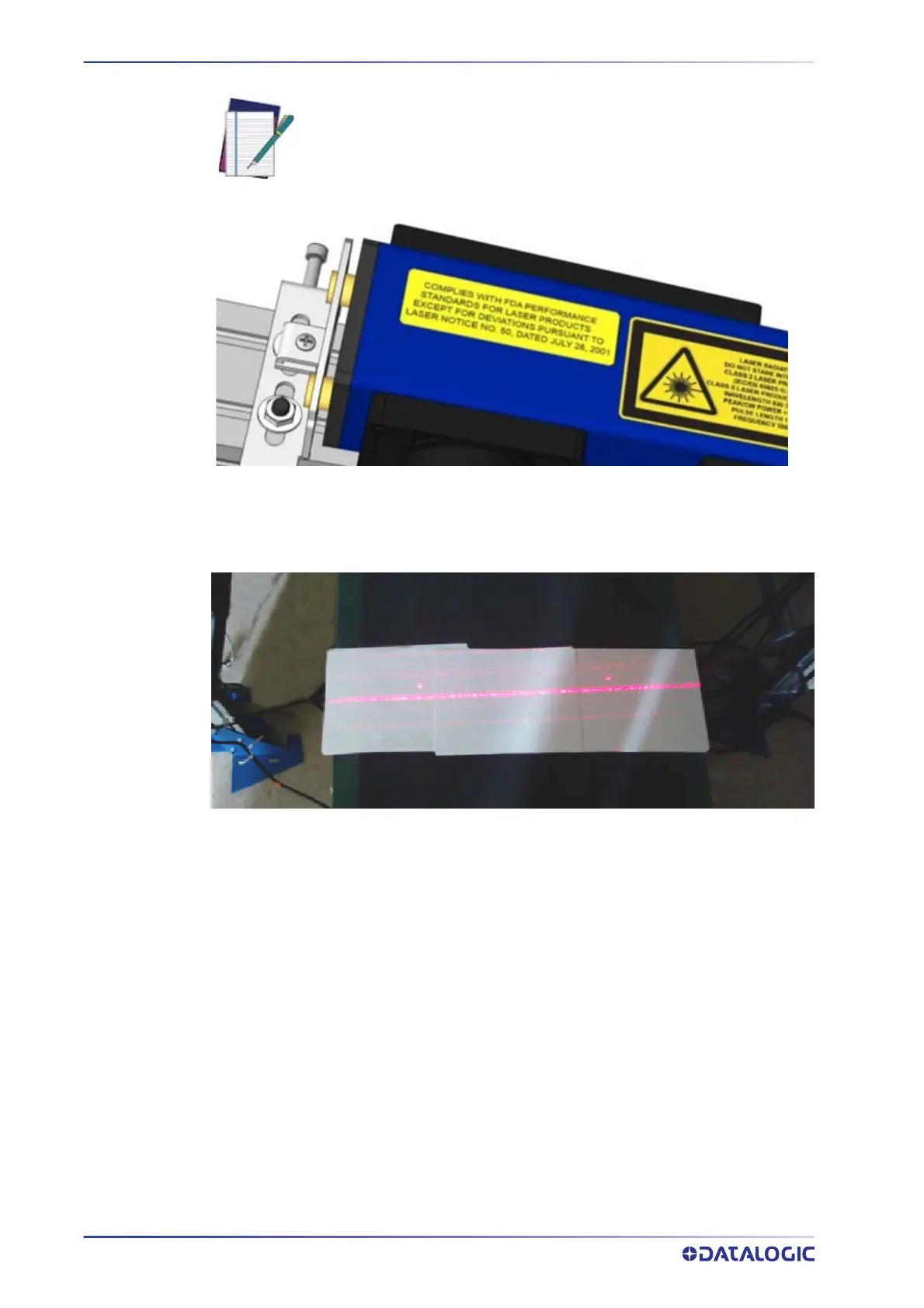

each laser. The image below identifies the right and left laser posi-
tions on the RangeFinder:
