MOUNTING THE AV7000 CAMERA TO THE AI7000 ILLUMINATOR
PRODUCT REFERENCE GUIDE
37
Mounting the AV7000 Camera to the AI7000 Illuminator
The AV7000 can be installed to operate in any position and the AI7000 Illuminator can
be used for any installation; refer to reading diagrams any application drawings for cor-
rect positioning of the camera with respect to the reading zone and camera orientation.
T
ypically, the illuminator is mounted to the system mounting structure, and then the
camera is bolted to the illuminator.
Mounting the Camera to the Illuminator
After the cooling fan has been installed on the camera housing, the camera can be
moun
ted to the illuminator as follows:
1. Make sure the illuminator is firmly mounted to the mounting structure.

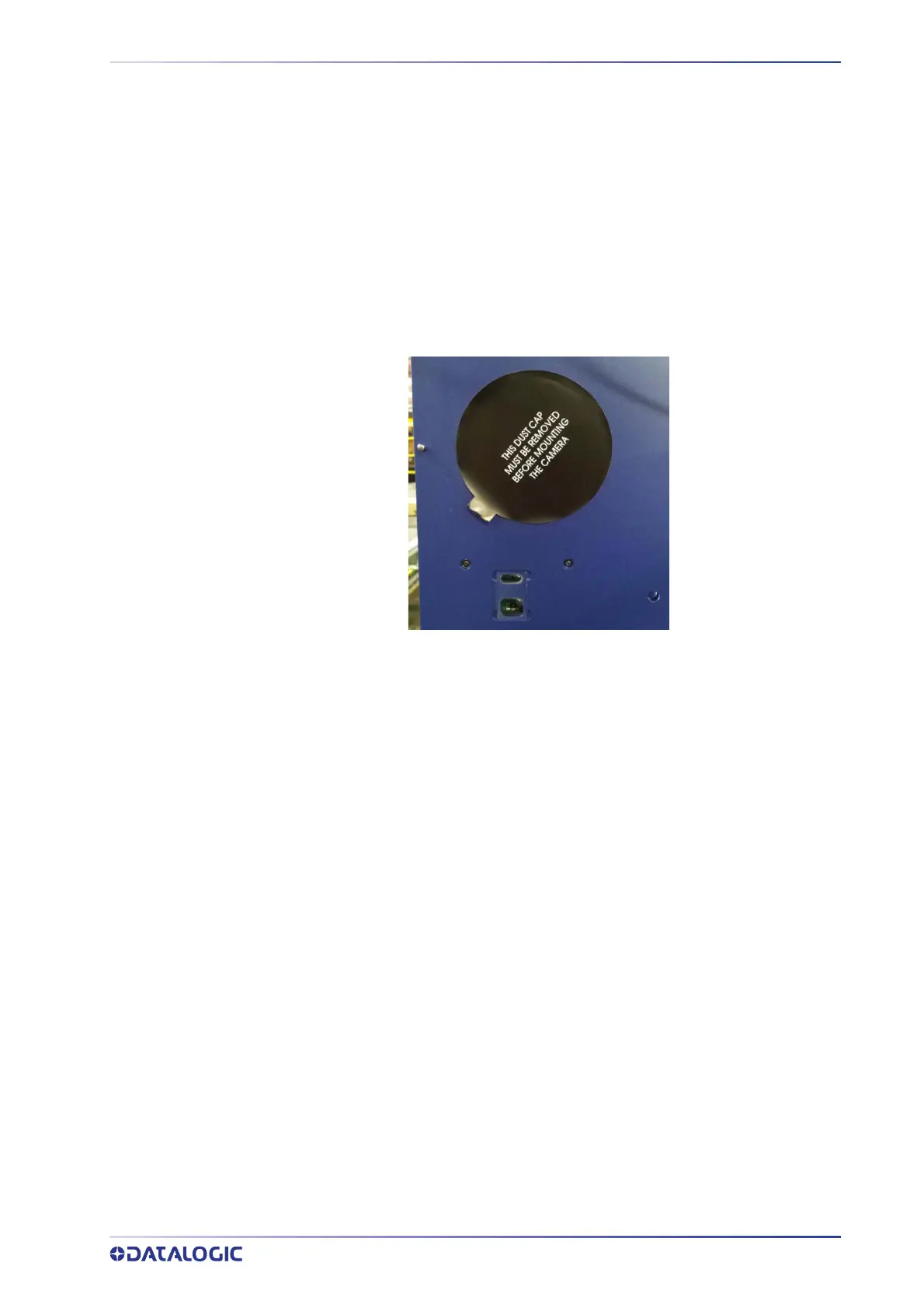

2. Remove the dust cap from the lens access on the back of the illuminator.
3. Lift the camera into place, inserting the lens through the lens hole and the Locater
Pin into the Locater Pin Hole.
See illustration below.
