MECHANICAL INSTALLATION
38
AV7000 LINEAR CAMERA

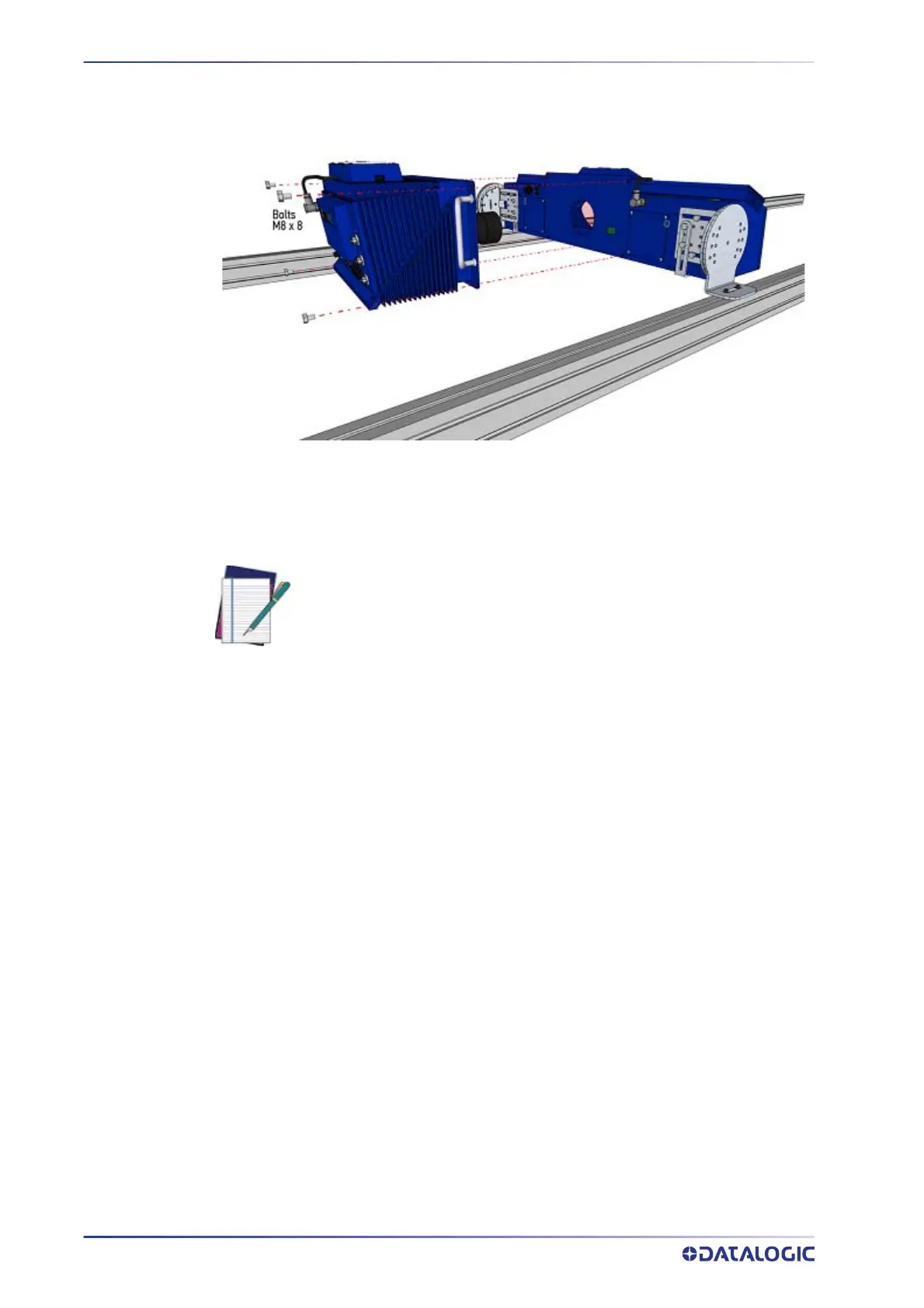

4. Push the camera in place against the back of the illumination and secure it by
turning a mounting bolt through the camera housing and into one of the mount
-
ing holes in the illuminator. Finger-tighten the bolt for now to secure the camera
and pr
event it from slipping out of the illumination.
5. Add the remaining bolts, and securely fasten the camera to the illuminator.
Check camera angle positions against application diagrams.
When you are sure all cameras are in the correct angled position, tighten all bolts.
NOTE: The spring-loaded Focus Lock will
push against the illuminator cre-
ating some resistance. As the bolts are tightened, the Focus Lock is pushed
in to release the focusing mechanism.
