POWER SUPPLIES AND SUPPLY CAPACITY WHEN WIRING TO AI7000S
PRODUCT REFERENCE GUIDE
59
POWER CONNECTIONS
The CBX connection boxes provide flexible connectivity to a range of I/O devices as well
as serial hosting. The AV7000 connects to the CBX via its I/O port using a single 19-pin
M16 to 25-pin D cable.
Power Supplies and Supply Capacity When Wiring to AI7000s
There are two Datalogic power supply options.
A
PG-600 is able to power:
One AI7000 illuminator (including the AV7000 c
amera which is powered via this unit
and one CBX510 with all the standard sensors)

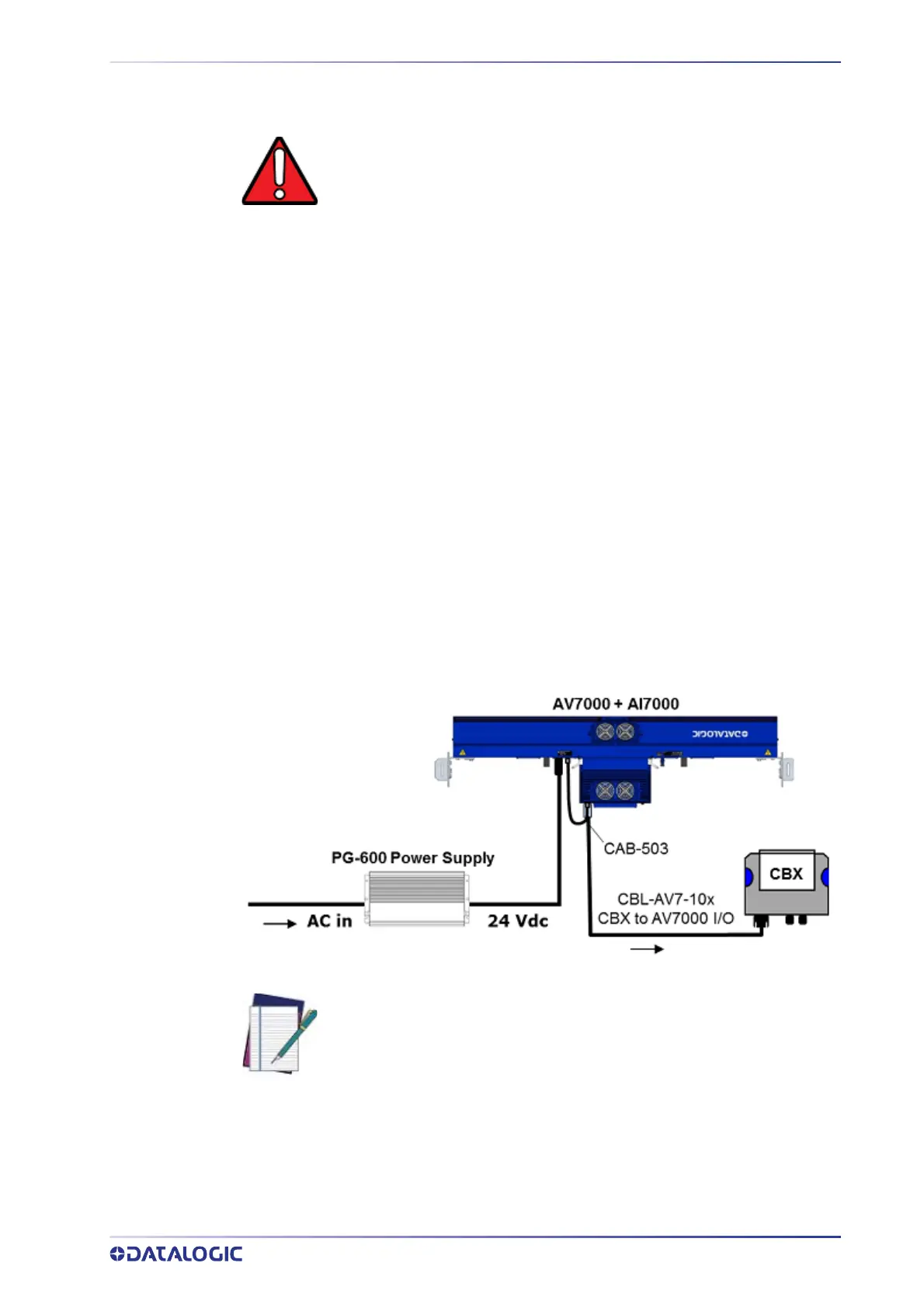

The power supply unit is connected to the camera illuminator according to the following
diagr
am (power supply side):
WARNING: When planning your installation wiring, remember all power
connections must be quick-disconnect. The socket-outlet must be installed
near the
camera. The outlet must be a readily accessible disconnect
device.
While performing the following wiring
connection procedures, be sure to
follow all safety procedures regarding high-voltage as outlined in the
Introduction to this manual. No power should be applied to any device until
all wiring is completed and checked for accuracy.
NOTE: If the PG-600 is mounted further than 1 M [3 ft] from the AV7000/
AI7000, use the CVL-2389 power extension cable include in the illuminator
package.
