FOCUSING SETUP AND CALIBRATION
364
AV7000 LINEAR CAMERA

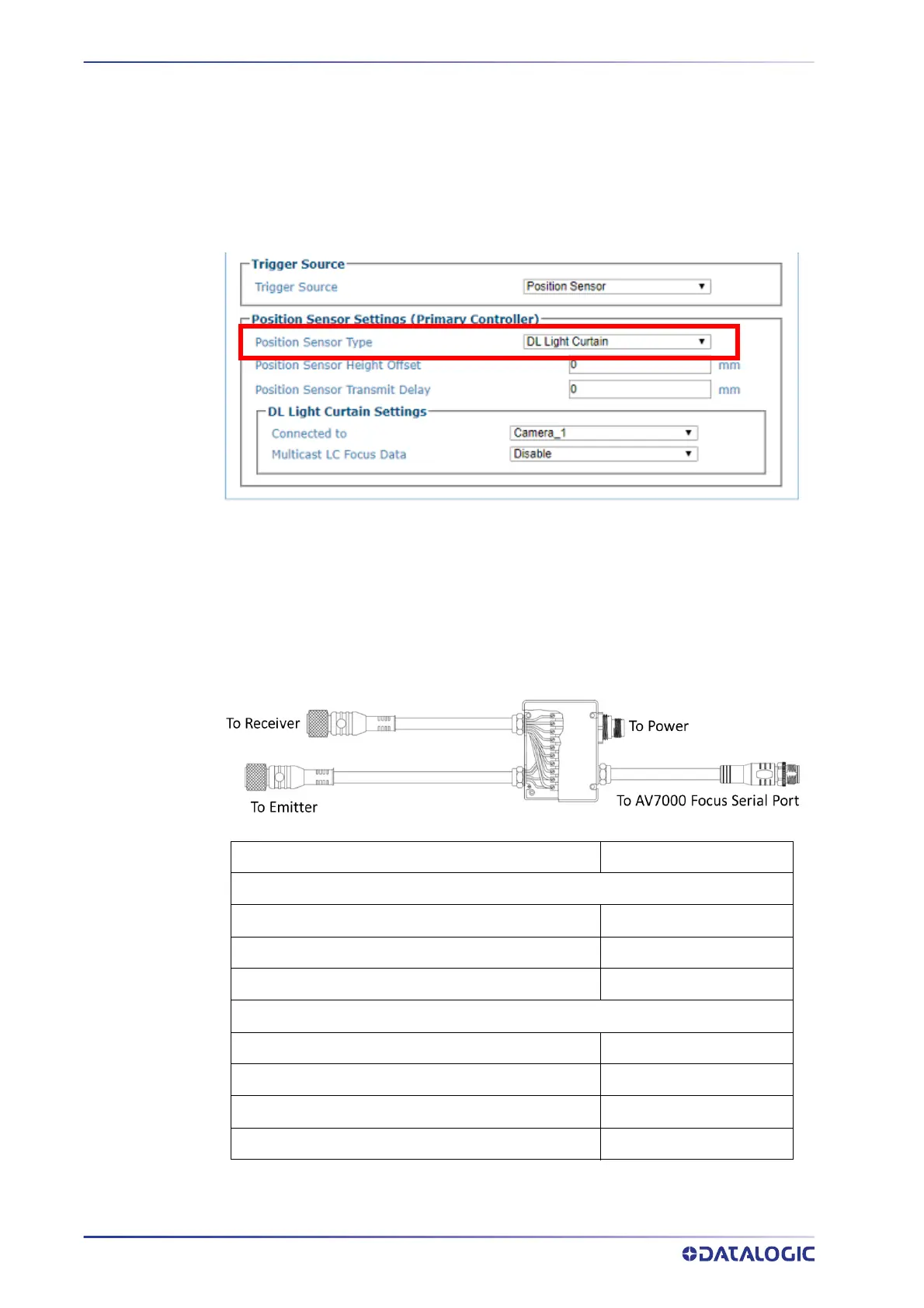

SETTING UP THE DS2 LIGHT CURTAIN
Reference the DS2 Instruction Manual available at www.datalogic.com for complete
information on connecting and aligning the Light Curtain. Make the following selections
in the AV7000 e-Genius application
Operating Mode. The baud rate of the DS2 light
curtain is 19200.
Make sure the baud rate for the Focus Serial port in the AV7000 is set
to match.
Connecting a DS2 Light Curtain to the AV7000
A special CVL-2403 Connection Cable is provided to attach the DS2 Light Curtain emitter
and receiver to the AV7000 and a power source. See “Focusing with a Light Curtain”
on page 132.
Power Options:
If requiring an external Power Supply there are three options:
PG-100-K01 POWER SUPPLY 60W KIT (EU) 93ACC0059
PG-100-K02 POWER SUPPLY 60W KIT (UK) 93ACC0060
PG-100-K03 POWER SUPPLY 60W KIT (US) 93ACC0058
If receiving power from a CBX box, use cable 95ACC2110 and connect as follows:
CBX box terminal
Brown and White twisted together Power Vdc
Blue and Black twisted together Power GND
Grey Earth
Verify the following
Receiver (CBX Box) DIP Switches:
