SETTING UP THE RANGEFINDER
PRODUCT REFERENCE GUIDE 379

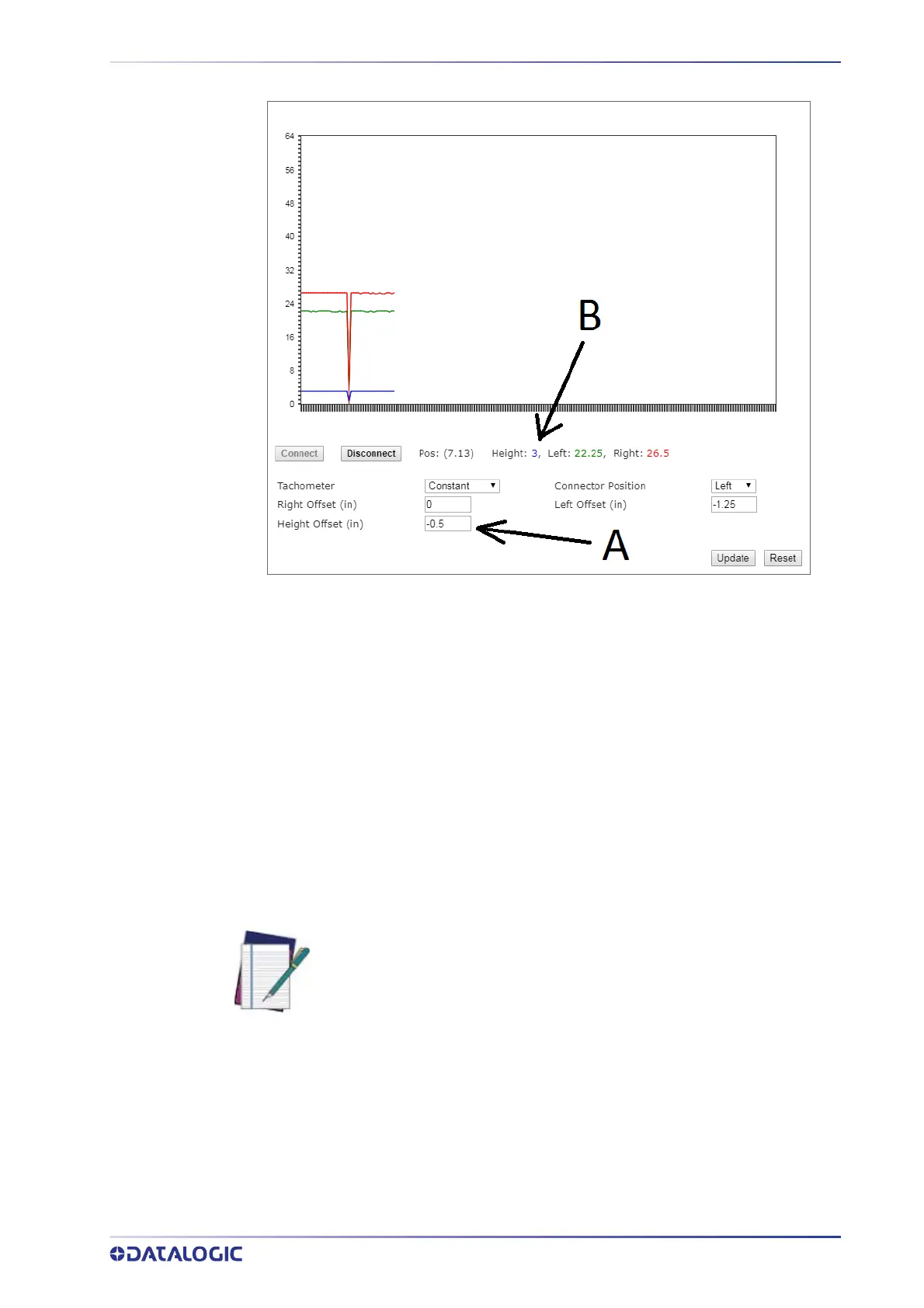

6. Click Update to save your changes.
7. Click on the “Tachometer” pull down menu and select “Hardware”, then click
“Update”
.
8. Test the system by induct a series of application objects and barcodes.
9. Use the AV7000 / NVS9000 / AV6010 imaging utility to verify that the cameras are
f
ocusing properly over the width and height of the conveyor
.
SETTING UP THE RANGEFINDER
This process calibrates the Rangefinder focus data for AV7000 camera systems. The
RangeFinder provides focus data for Datalogic cameras. See “RangeFinder” on
page 362.
1. Make sure the RangeFinder is mounted at the
correct height (typically 1924 mm
[75.75 in] from the left and right laser housings to the conveyor belt.
2. Attach an RJ45 cable from your PC to the SY
NC port of the RangeFinder.
3. From a command prompt enter: (start>run>cmd) 0.
• telnet 192.168.0.40
• Free Scale login: ro
ot
• Password: ro
ot
NOTE: These steps require downloading of the AV7000 tools.
