ALTERNATIVE DEFLECTION MIRROR MOUNTING BETWEEN RAILS
PRODUCT REFERENCE GUIDE
43
Alternative Deflection Mirror Mounting Between Rails

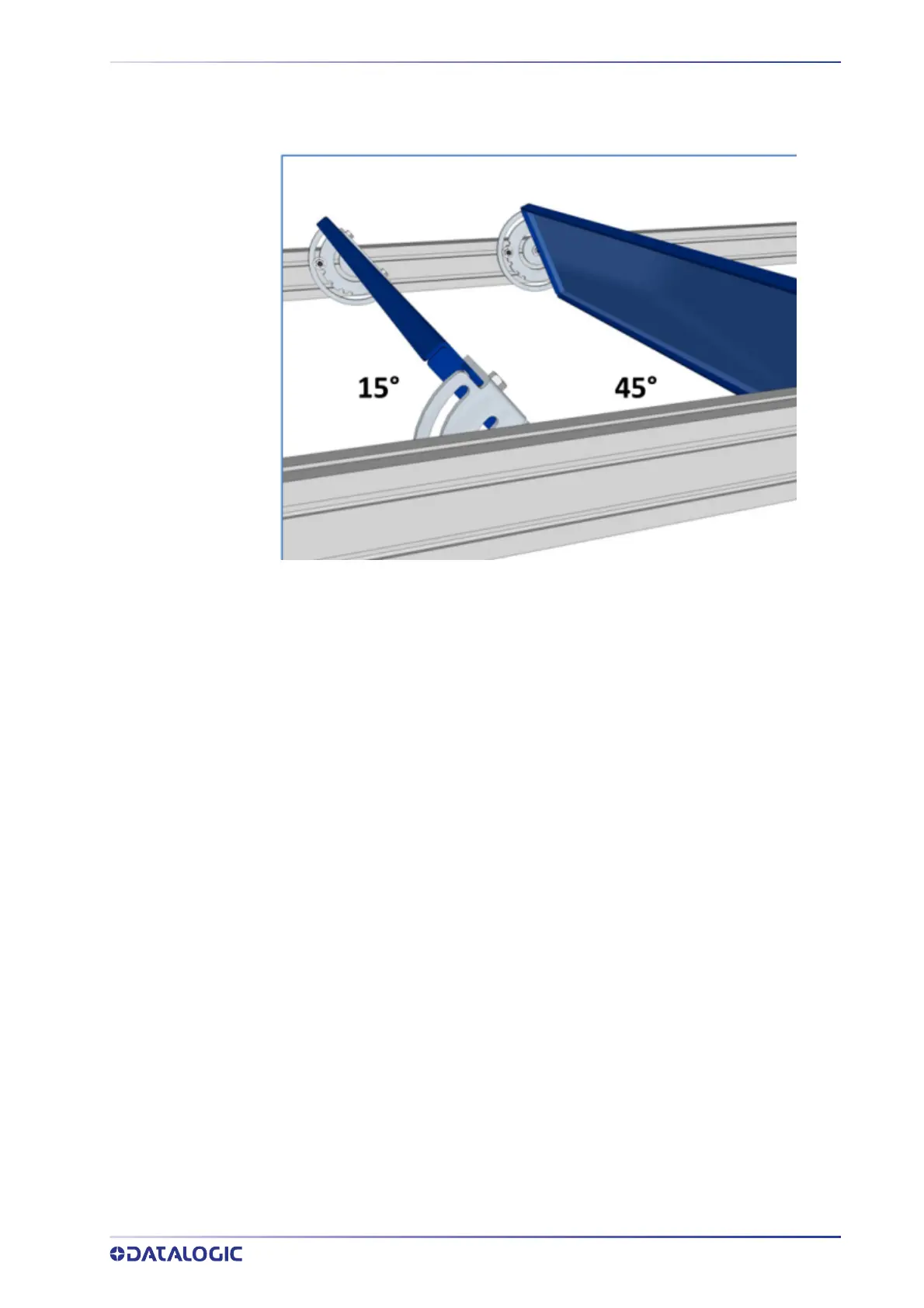

Like the AV7000 Camera, the deflection mirror can also be mounted between the
mounting structure rails, as illustrated below.
