ELECTRICAL INSTALLATION
76
AV7000 LINEAR CAMERA

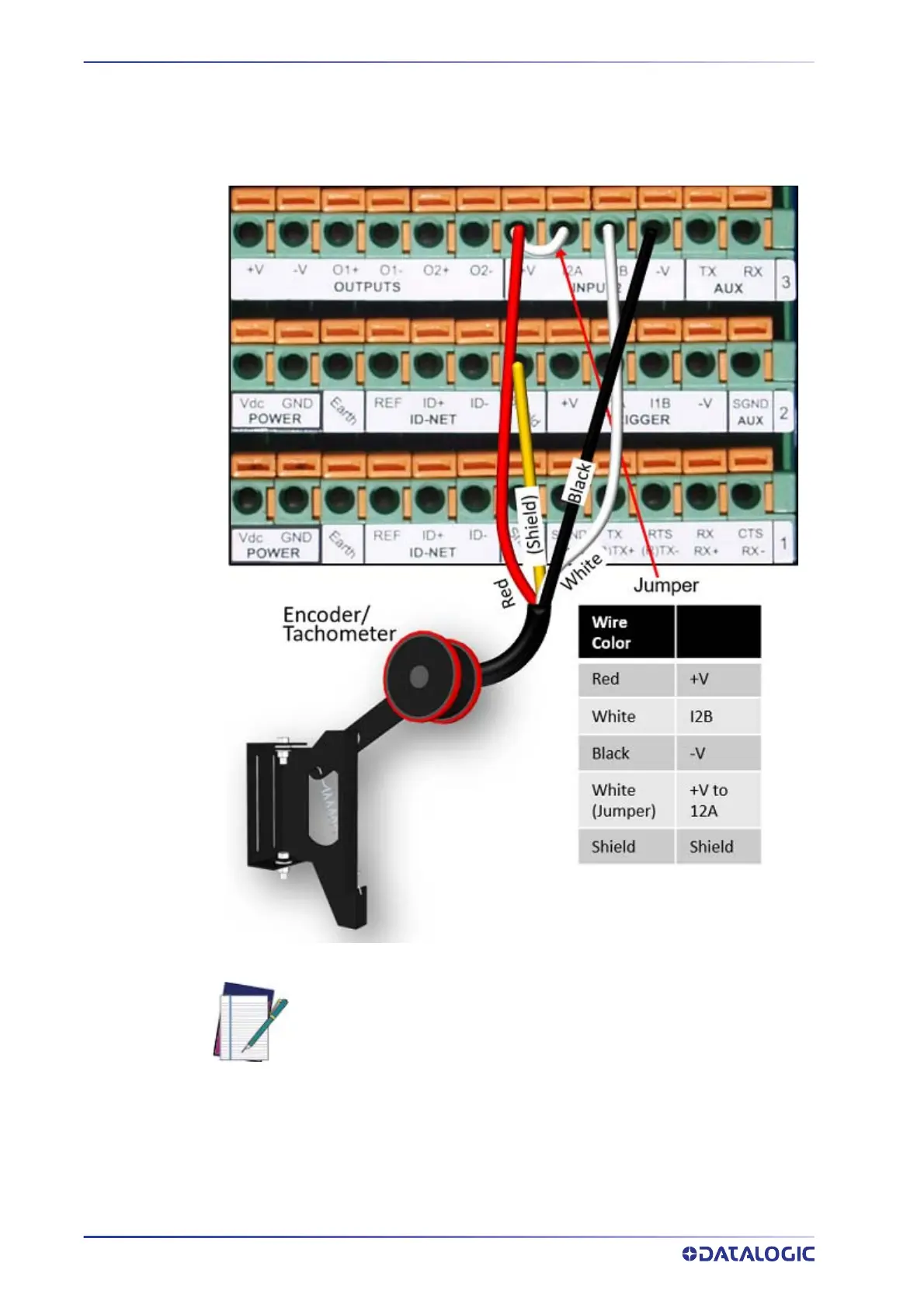

Encoder/T
achometer W
iring to CBX100/CBX800
Encoder/T
achometer Wi
ring for NPN Output to CBX100/CBX800
NOTE: Some Photocr
aft tachometers
may
hav
e a different color coding:
(+V) Red or White/Or
ange
(Signal) White or White/Blue
(Ground)
Black
or
Or
ange/White
95
97
