SERIAL COMMUNICATION WIRING TO CBX100/CBX800
PRODUCT REFERENCE GUIDE 79
Serial Communication Wiring to CBX100/CBX800
The AV7000 provides serial RS232/RS422 communications to other devices through the
CBX100/CBX800.
• RS232 provides point-to-point communications at distances up to 15 M [50 ft].
• RS422 provides point-to-point communications at distances up to 1200 M [3940
ft]
The following wiring diagrams illustrate the different types of serial communications
a
vailable via the CBX100 pin block. It is very important that you make the proper pin
connections.
RS232 with No Handshaking
Use RS232 for a direct connection to a controller, personal computer, or other device.
RS232 provides point-to-point communications at distances up to 15 M [50 ft]. If longer
cable lengths are needed, use RS422.

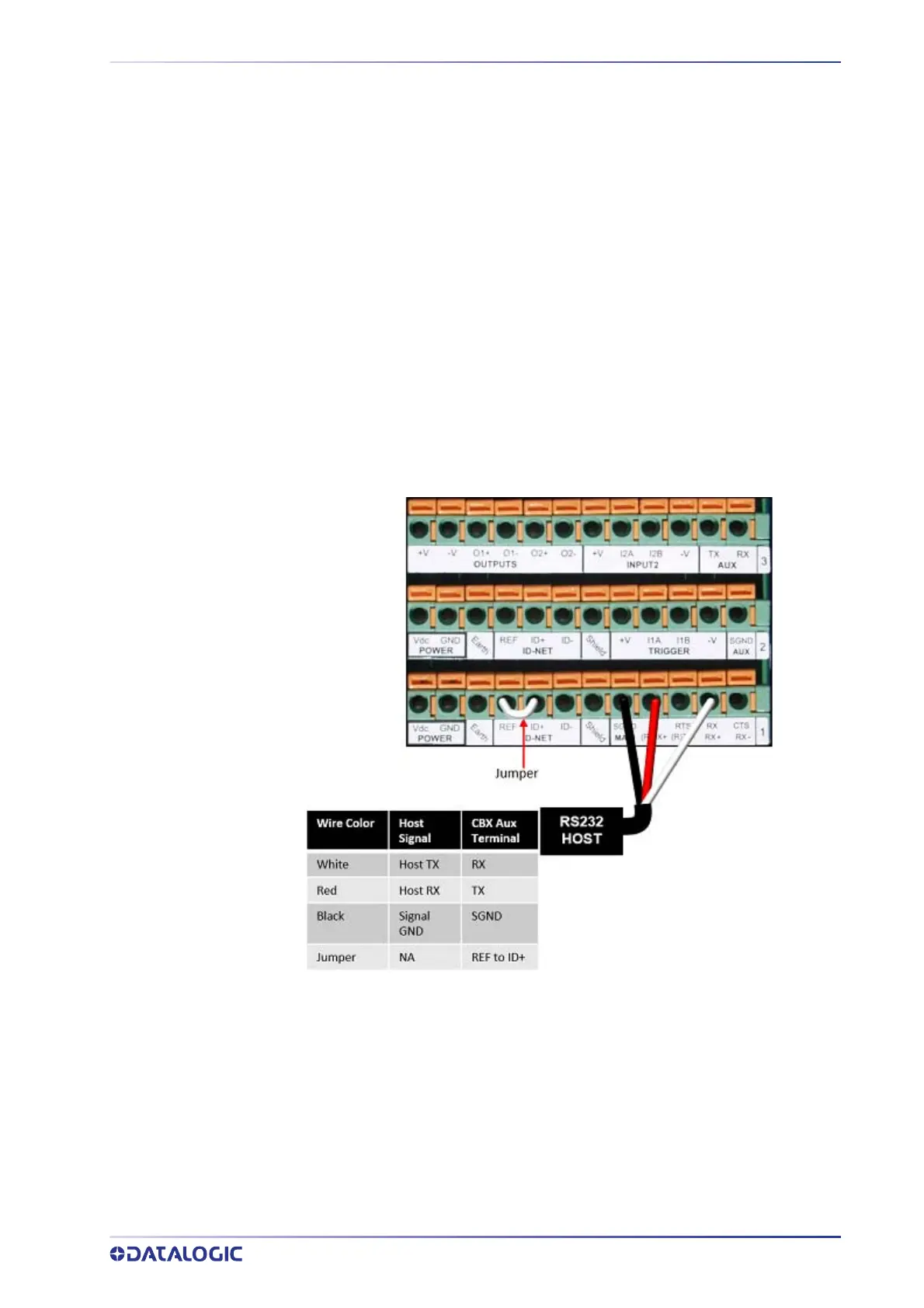

Use the following illustration as a guide when you want to connect your system to a
de
vice using RS232 communication with no handshaking.
