ELECTRICAL INSTALLATION
66
AV7000 LINEAR CAMERA

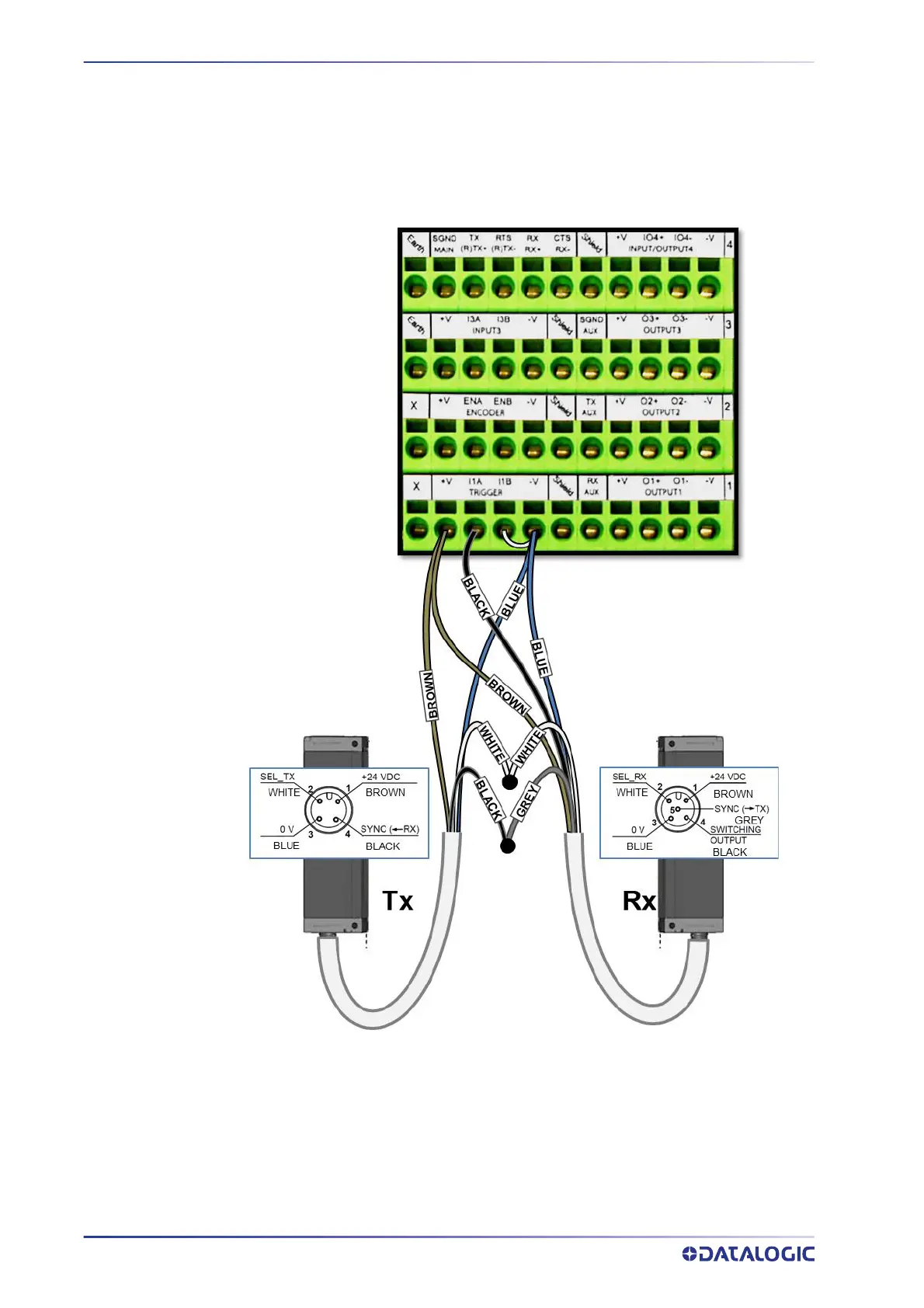

AS1 Area Sensor to CBX510 Connections
The AS1 area sensors can detect and provide trigger for very small or irregularly shaped
objects.
AS1 Area Sensor (PNP Output)
