AUTOMATED MOUNTING CALIBRATION
PRODUCT REFERENCE GUIDE
233

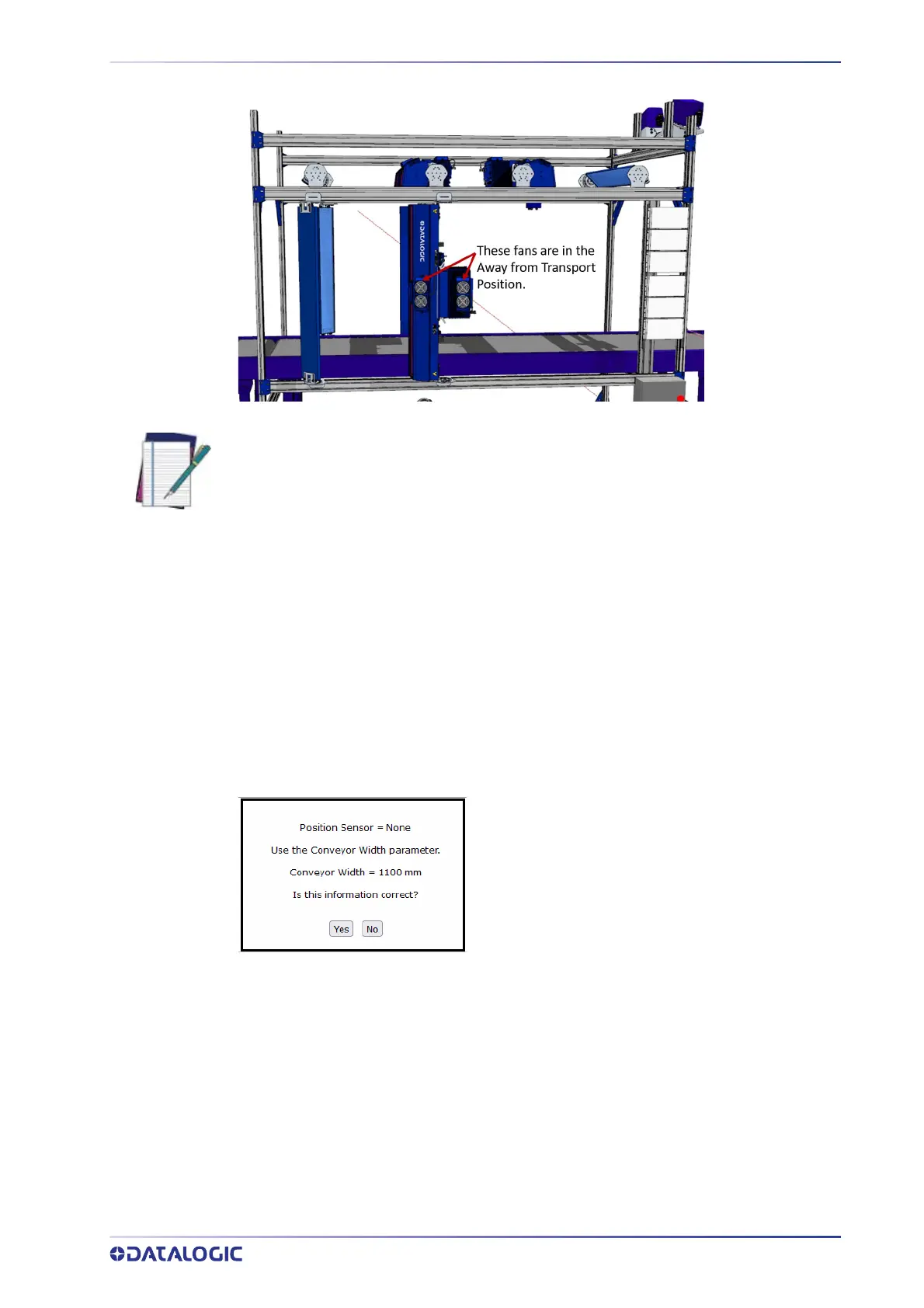

Calibrating Top Side by Side Cameras
You will need to run the calibration process multiple times, based upon your camera
configuration.
First, enable and calibrate any side cameras in a single calibration step.
Next, enable and calibrate each top camera individually.
1. Click
Start Dynamic Calibration to get started.
2. Position Sensor verification is performed. One of the following pop-ups is dis-
played based upon the position sensor enabled in
Operating Mode.
• No Position Sensor – verify the Conveyor Width parameter setting (rep-
resents the measured conveyor width)
• Dimensioner – parameters are extracted from the dimensioner and dis-
played for verification.
NOTE: Click the Blink button to identify a camera.
