SETTING UP THE DM3610 DIMENSIONER
PRODUCT REFERENCE GUIDE
373
Adjusting DM3610 Left Focus Offset

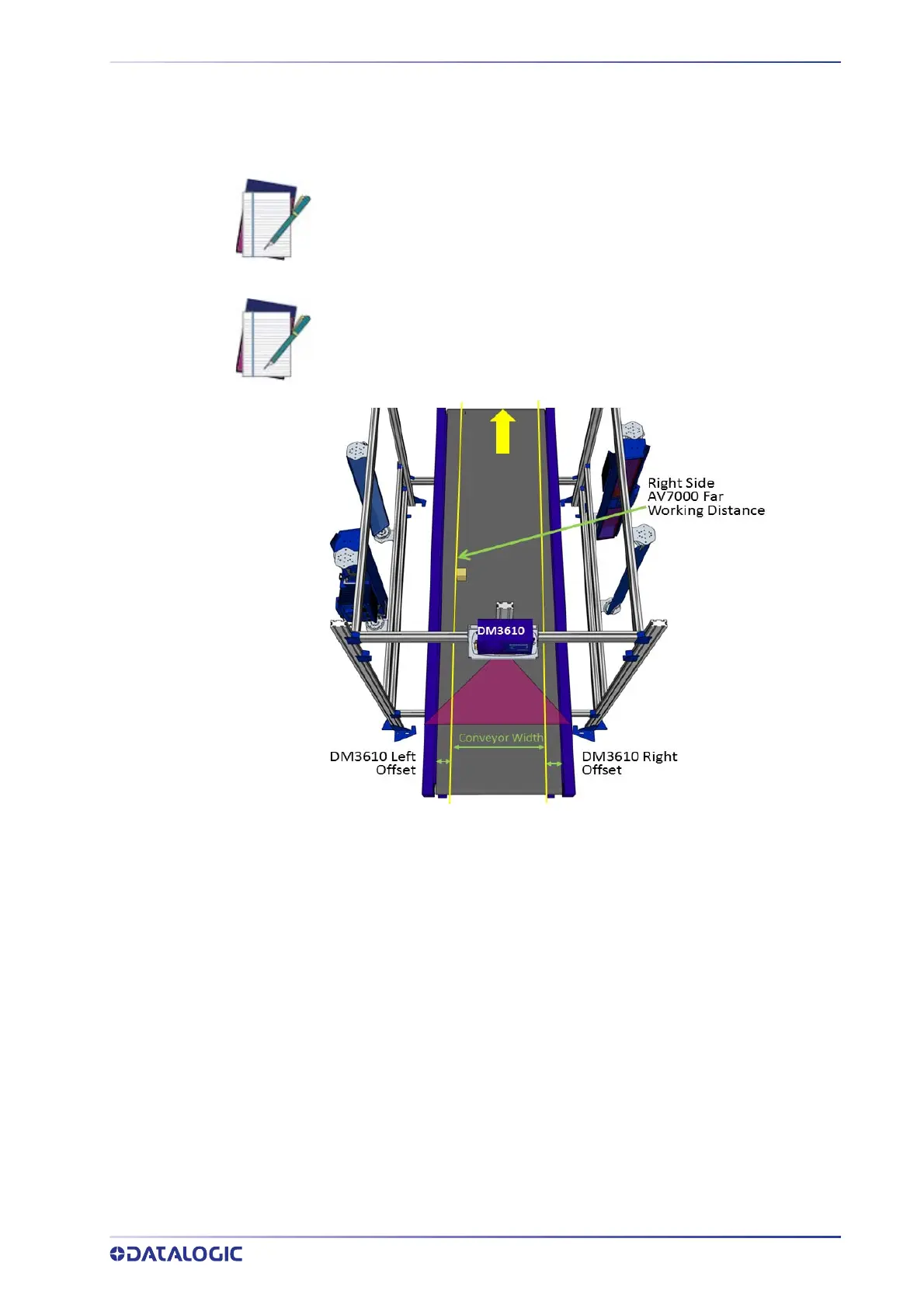

1. Position a test box with a known width in the dimensioner line(s) so the side of the
box is at the RIGHT side AV7000 far working distance as specified by the applica-
tion’s installation drawing. In this example we will
be using a box with a 3” width.
When working with a DC3000 multi-head system, the text box must inter-
cept all dimensioning lines
When working with a DC3000 based Dimensioning system,
please allow
time for the constant tach signal to synchronize between the Master and
Slave units.
