FOCUSING SETUP AND CALIBRATION
374 AV7000 LINEAR CAMERA

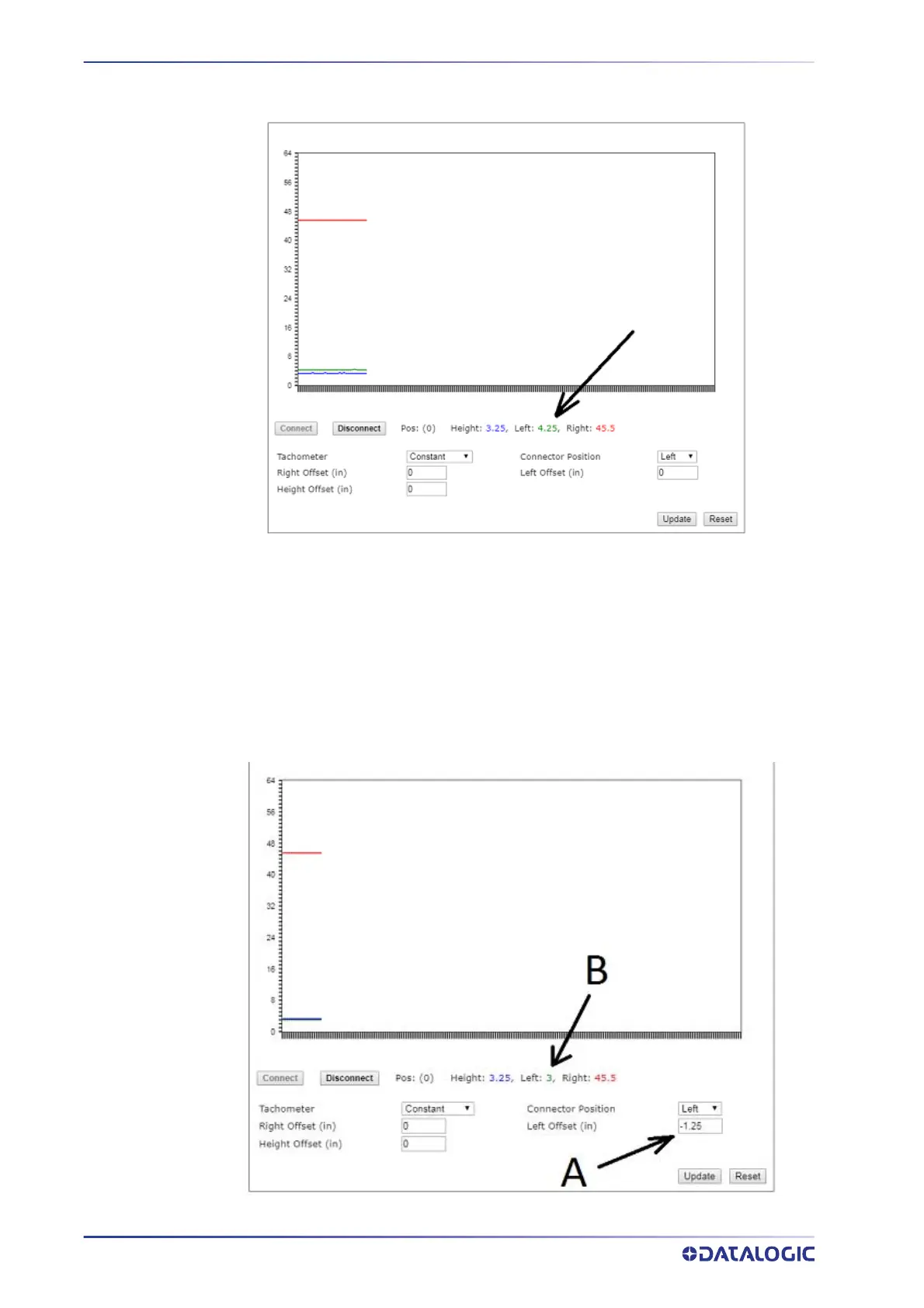

2. In the menu tree under Diagnostics, click Focus Setup. The Focus Setup Window
opens.
3. View the displayed data and determine what the left value is. In the displayed
example above, the value is 4.25”.
4. Subtract the width of the test box, in our example it is 3”, from the value displayed
fo
r Left.
4.25 – 3 = 1.25
5. Enter the result as a NEGATIVE value in the Left Offset field. In this case you will
enter -1.25.
