Datalogic AV7000 User Manual

INTRODUCTION
14 AV7000 LINEAR CAMERA
LCC-75xx Kit with DS2 Light Array

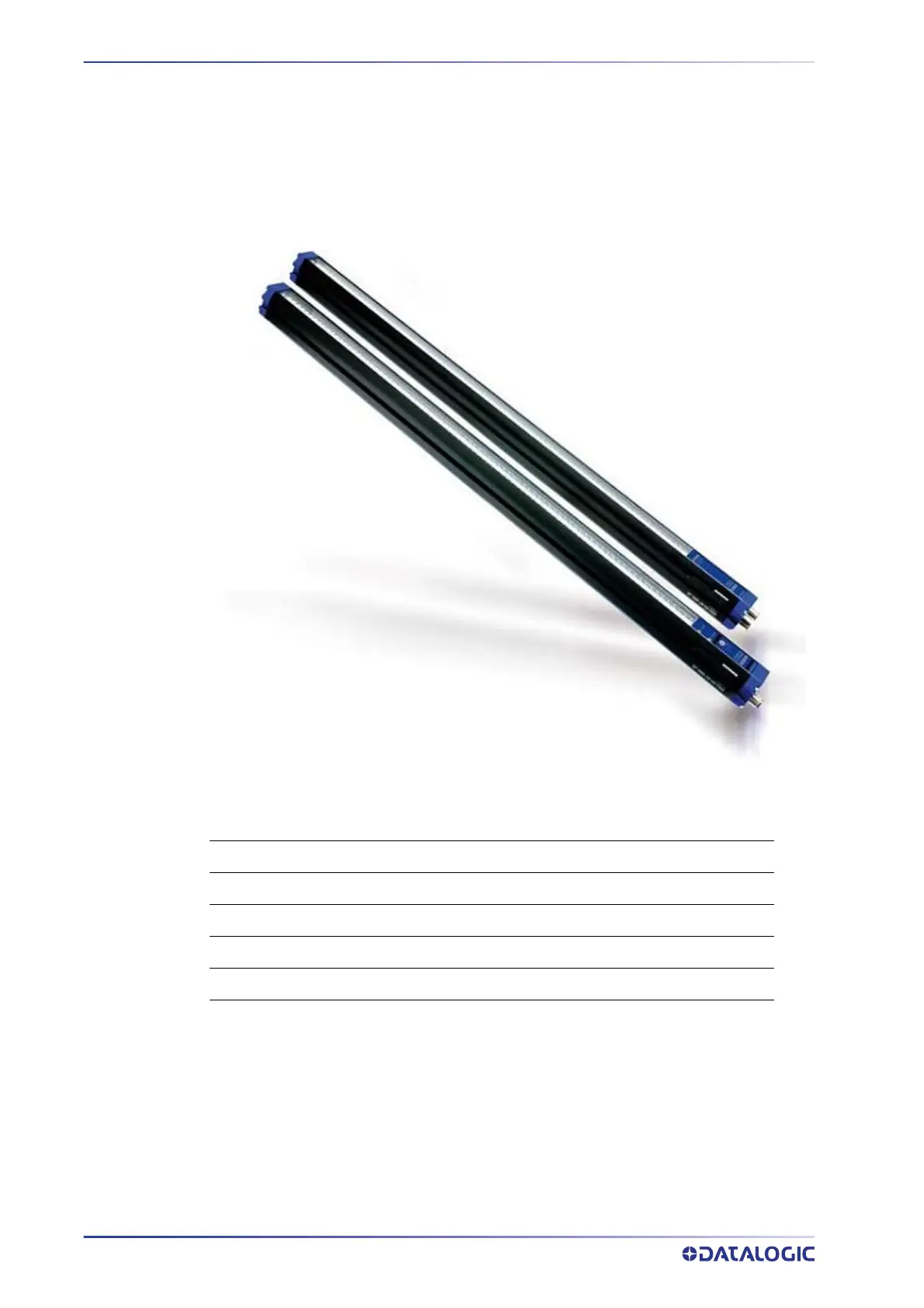

The DS2 Light Array (Light Curtain), part of the LCC-75xx kit, is used to detect the pres-
ence of products as they enter the scanning ar
ea as well as report the package heights
to the system Master. The AREAscan™ family of the DS2 series covers controlled heights
ranging from 150 to 2500mm, with 5m operating distances for high resolution versions,
or 10m for low resolution versions. Digital resolution is 12mm or 35mm while relative
measurement precision is ±6mm or ±22.5mm. See
“Setting Up the DS2 Light Curtain”
on page 374
.
Light Curtain Focusing
FOCUS CONTROL 5MT CABLE (M12-FREE WIRES) 93A201203
LCC-7501 AV7 LIGHT CURTAIN 150MM+CAB 10M 93ACC0170
LCC-7506 AV7 LIGHT CURTAIN 600MM+CAB 10M 93ACC0171
LCC-7509 AV7 LIGHT CURTAIN 900MM+CAB 10M 93ACC0172
LCC-7512 AV7 LIGHT CURTAIN 1200MM+CAB 10M 93ACC0173
