MANUAL MOUNTING CALIBRATION
PRODUCT REFERENCE GUIDE
241

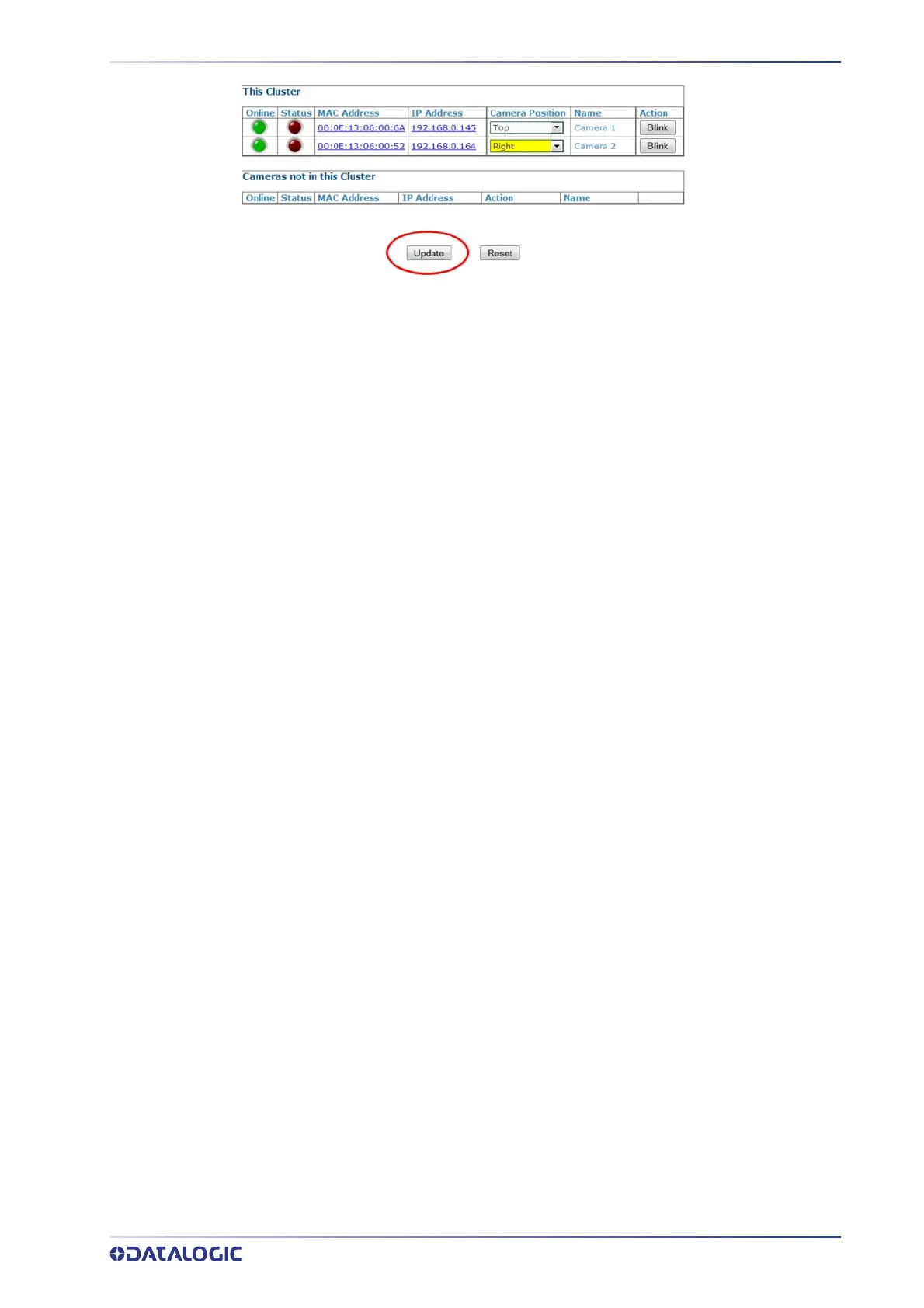

Operating Mode
In the menu tree under Modify Settings, navigate to Global Settings | Operating Mode.
The Operating Mode window opens. See section for an explanation of the Operating
Mode options.
The following parameters are important to be set to match the application:
1. Encoder Settings - Enc
oder Step Settings: See section Modify Settings | Global
Settings | Operating Mode > Encoder Step. Conveyor speed: Enter the conveyor
speed (Formula:
Max conveyor speed x 1.05). This is needed so the AV7000 sets the
exposure time parameter during calibration.
2. Con
veyor width: Enter the width of the conveyor (the distance between left and
right focus offsets; See section
3. Tr
igger Source: Make sure the Trigger Active State is set correctly, To test this, nav-
igate to Diagnos
tics | Device Tracking. Run two boxes through the system. Con-
firm that the start and end trigger corresponds to the correct Seq N
umber.
4. Transmit Point Settings
Device Settings
In the menu tree under Modify Settings, navigate to Device Settings. Due to the mount-
ing differences among the AV7000 cameras in the system, each camera will be cali-
brated separately.
There will be a different Device Set
tings branch in the menu tree for each camera in the
array. See section for an explanation of the Device Settings options.
1. In the menu tree, navigate to Modify Se
ttings | Device Settings | Camera N |
Device Info. The Device Info window opens.
2. Enter a unique name for the camera. The new name will appear in the Name co
l-
umn on the Sy
stem Info window, and also in the menu tree under Device Settings.
To Next Page
