SETTING UP THE STI LIGHT CURTAIN
PRODUCT REFERENCE GUIDE
365
1 = OFF (down)
2-8 = ON (up)
Emitter Trimmer is set fully clockwise (maximum gain)

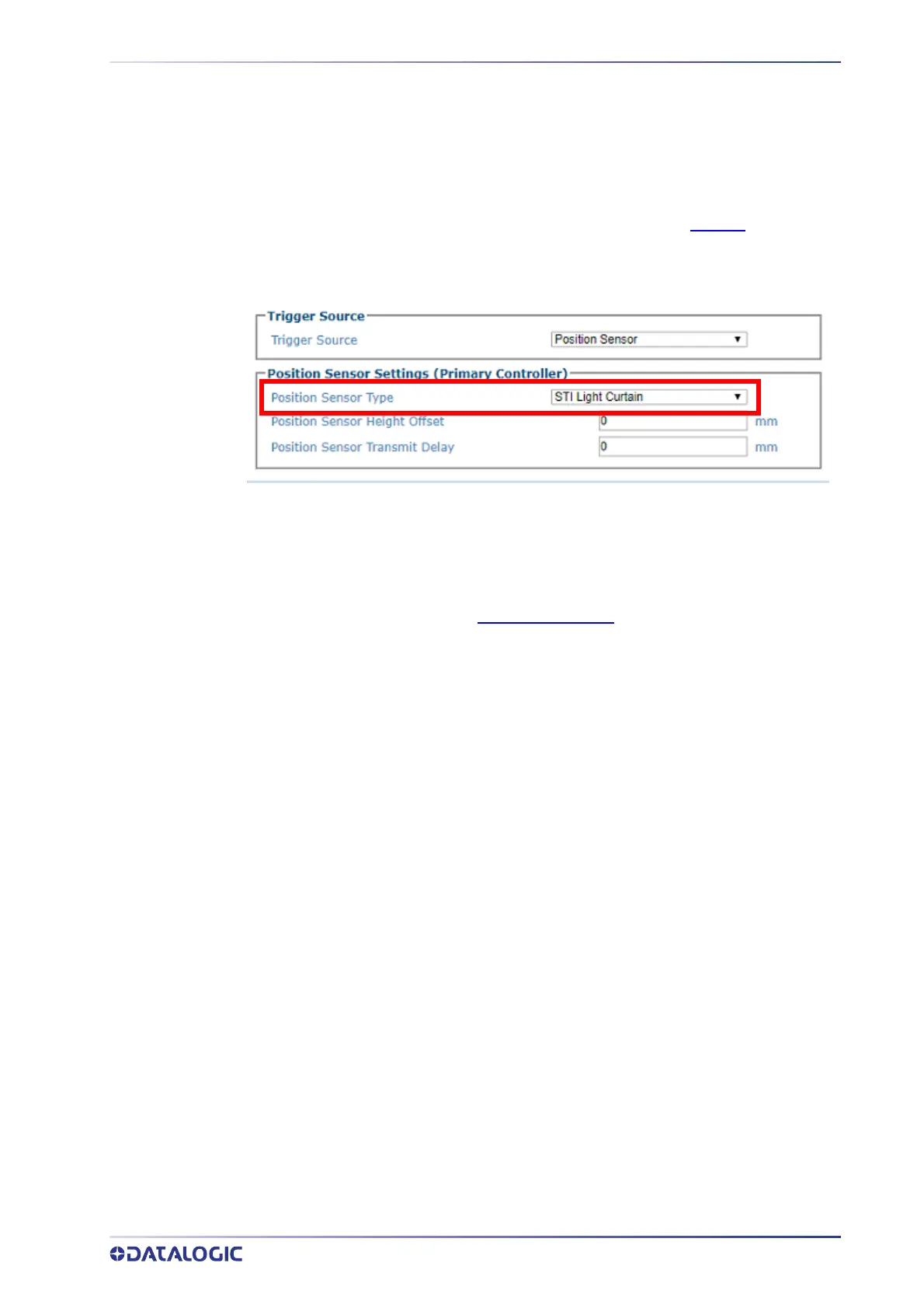

SETTING UP THE STI LIGHT CURTAIN
Reference the STI Light Curtain Instruction Manual available at STI.com for complete
information on connecting and aligning the Light Curtain. Make the following selections
in the A
V7000 e-Genius application Operating Mode.
SETTING UP THE DK502 (S85) DISTANCE KIT
Reference the DK-502 Distance Kit Installation Manual for mounting and connecting the
S85 Distance Sensor available at
www.datalogic.com for information about the S85
position sensor.
Mounting the S85 in an AV7000 System
In an AV7000 system, the S85 Distance Sensor must be mounted perpendicular to the
conveyor. If there is more than one, the first S85 must be mounted at least 127mm (5
inches) downstream from the trigger photoeye. The trigger photoeye and downstream
most S85 or Light Curtain must be mounted at least 127mm (5 inches) a part. The down-
stream most S85 or Light Curtain must be mounted at least 305mm (12 inches)
up
stream from the first camera scan line. There is no required distance between each
S85/Light Curtain. See
“Focusing with an S85 For a Side Read AV7000” on page 134
or “Focusing with a Light Curtain and S85 (Software version 2.16.0.0 or later)” on
page 133
.
