All configurations use a photo sensor as the trigger source. The position sensors identi-
fied in the document include:
• “Bottom Upstream AV7000 Configuration” on page 130
• “Fixed Focus (NONE)” on page 131
• “Focusing with an S85 For a Side Read AV7000” on page 134
• “Focusing with a Light Curtain” on page 132
• “Focusing with a Light Curtain and S85 (Softwar
e version 2.16.0.0 or later)” on
page 133
• “Focusing with a Single DM3610” on page 136
• “Focusing with a Dual DM3610 System” on page 137

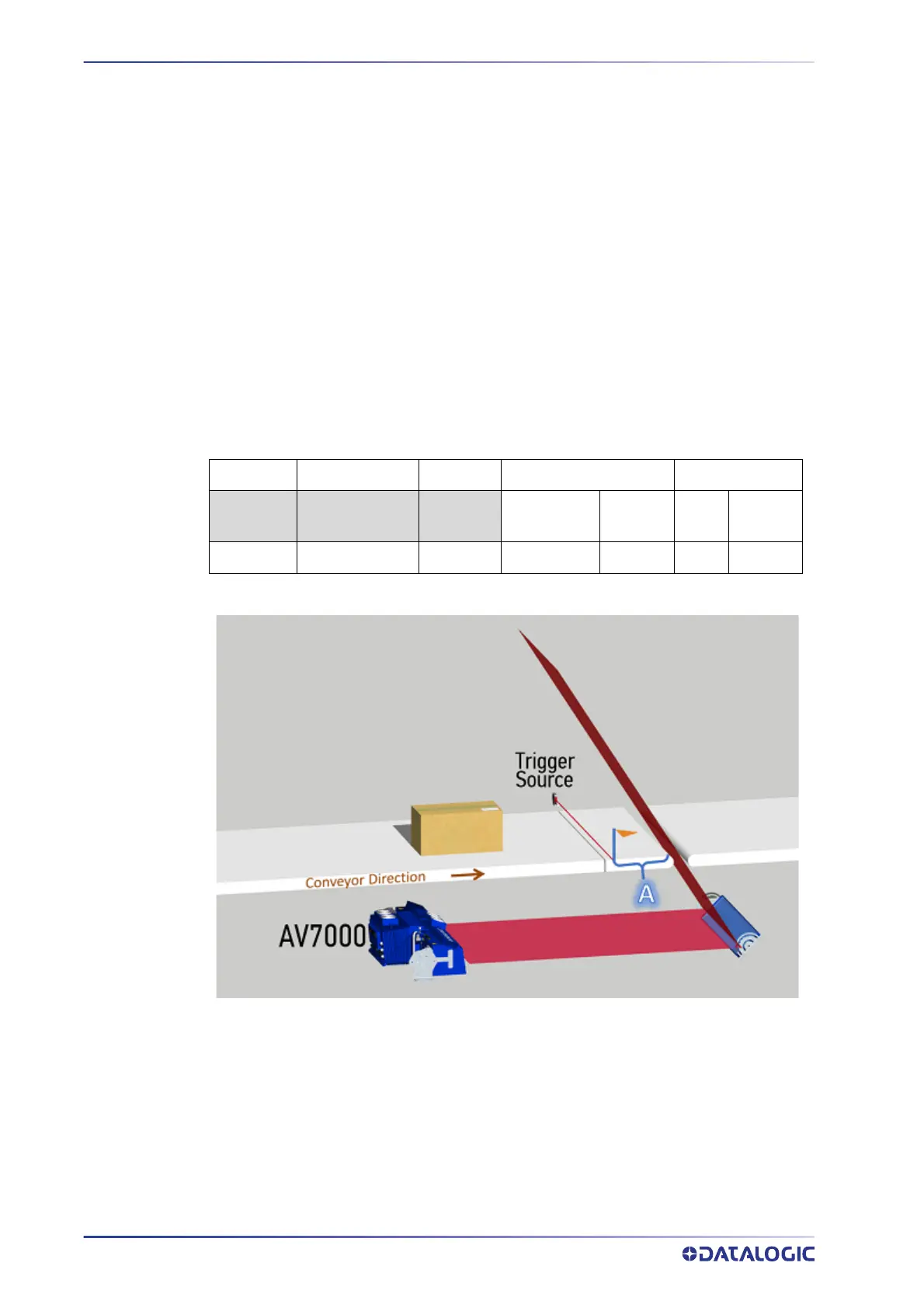

Bottom Upstream AV7000 Configuration
In a bottom mounted AV7000 the camera and mirror must be mounted so that the
beam is reflected by the mirror through a space between conveyors.
Identifier Item 1 Item 2 Distance Time
Standard
(in.)
Metric m/s f/m
A Trigger Source AV7000 10 254
