ELECTRICAL INSTALLATION
64
AV7000 LINEAR CAMERA
Photoelectric Sensor Connections to CBX510
Barcode scanning applications may use a Datalogic photoelectric sensor as a trigger
device. The photoelectric sensor is wired directly into the CBX510 terminal block.
If your application uses a trigger other than the
one specified by Datalogic, follow the
appropriate wiring diagram to assure proper wiring.
The following diagrams illustrate standard recommended wiring of the Photoelectric
Sensor to the CBX510 terminal block.

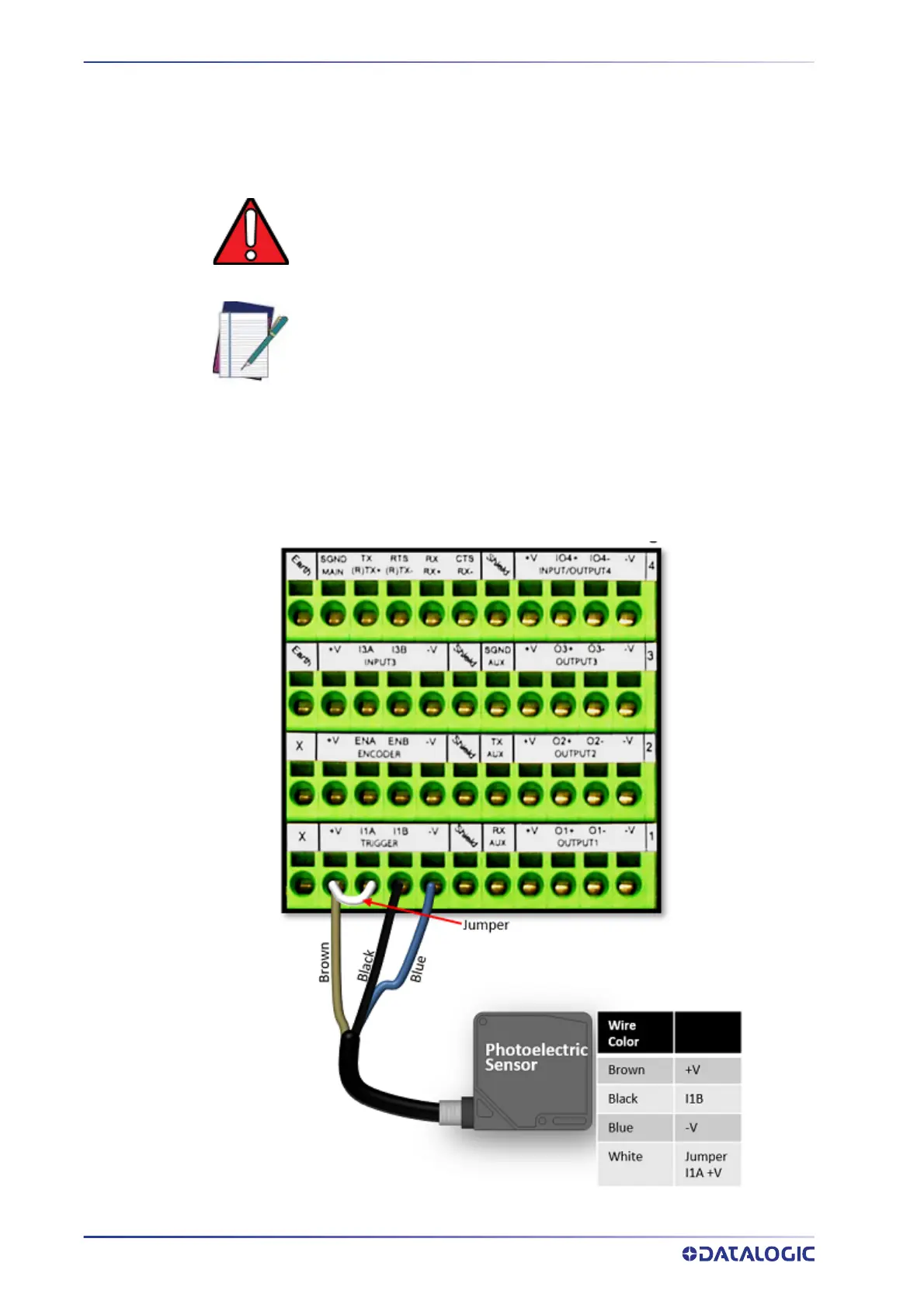

Photoelectric Sensor to CBX510 (NPN)
WARNING: You must use shielded interface cables with this product. To
maintain FCC compliance, the cable shield must make a 360-degree con-
nection to the shielded mating connector.
NOTE: To confirm the photoelectric sensor is functioning
properly, watch
the TRIGGER LED in the CBX and also on the camera while the photoelectric
sensor’s beam is blocked. The Datalogic photoelectric sensor also includes
a status LED.
