MECHANICAL INSTALLATION
30
AV7000 LINEAR CAMERA
AV7000 Mounting Sequence
Since the brackets are mounted directly to the body of the illuminator and the camera is
mounted directly to the body of the illuminator, no matter what standard mounting
position is used, (Top, Side, or Bottom), the basic sequence is the same:
1. Mount the cooling fan to the AV7000 camera (Se
e section Mounting the AV7000
Camera to the AI7000 Illuminator).
2. Pre-assemble the Illuminator brackets according to the application.
3. Mount the brackets to the mounting frame.
4. Mount the Illuminator to the bracket.
5. Mount the Camera to the illuminator.
AV7000 Bottom Mounting

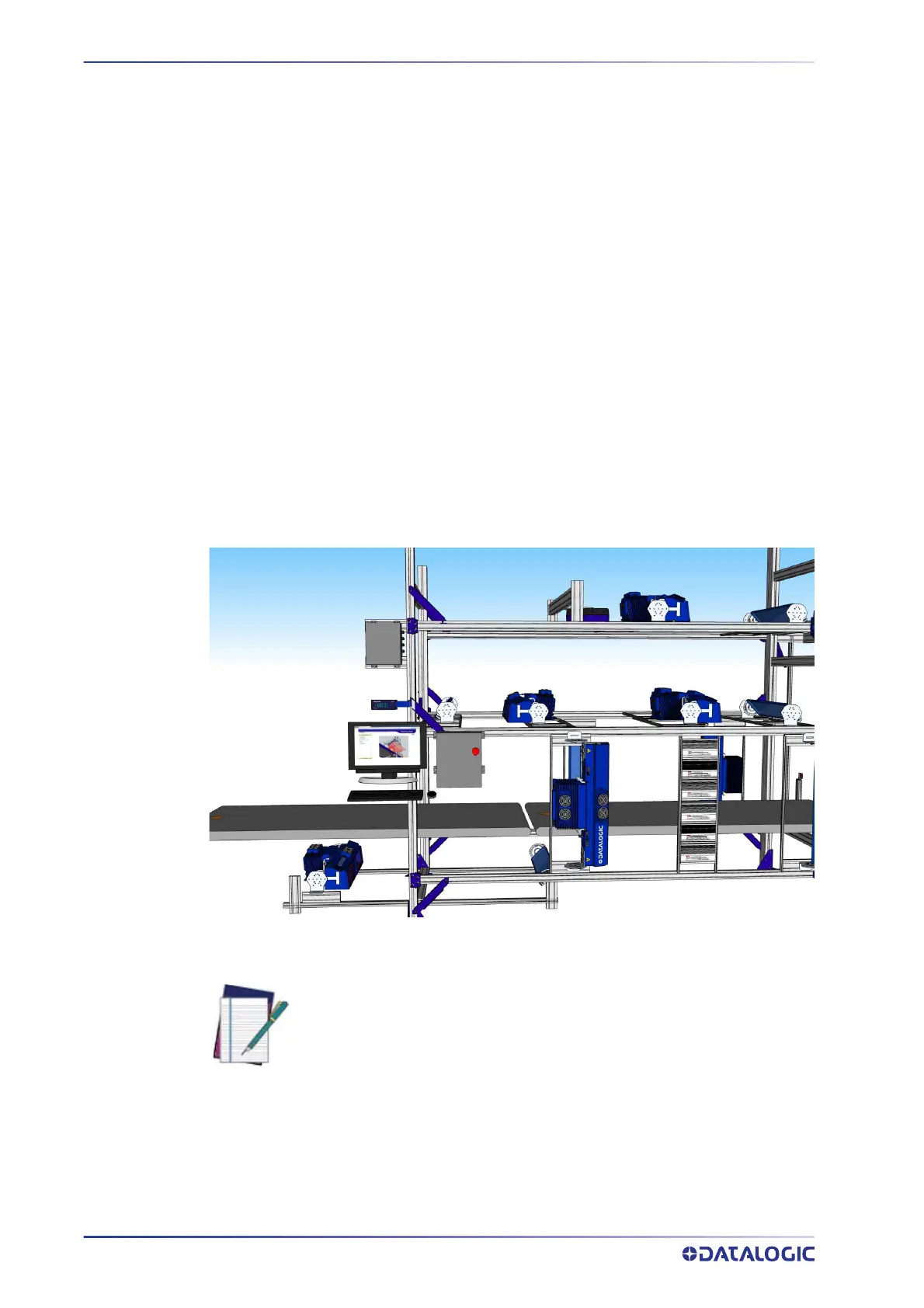

In some applications it is beneficial to mount an AV7000 under the conveyor. When
mounting a bottom read AV7000, it must be done so under a break in the conveyor.
NOTE: This illustration does not show the current brackets.
