MANUAL MOUNTING CALIBRATION
242
AV7000 LINEAR CAMERA
3.
Click
Update
t
o save the new name. Repea
t this for each camer
a in
the s
ystem.

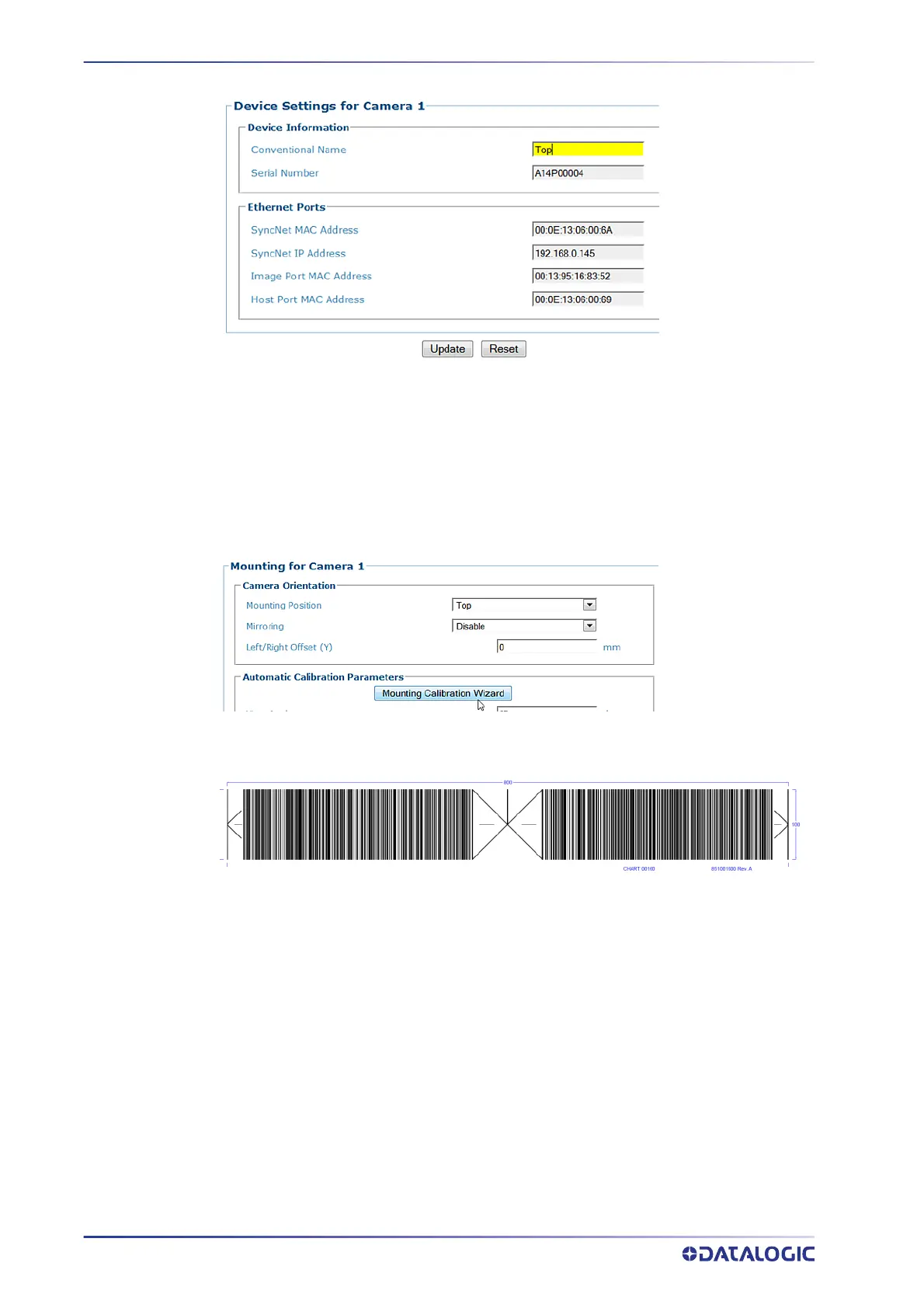

Calibr
ating A
V7000: Static Calibration
1.
Navi
gate to
Modify Se
ttings | Device Settings | Camer
a N | Mounting
. The
Mounting
window opens.
2.
Place
the CH-3 Autof
ocus T
est Chart on the conv
eyor within the im
aging area f
or
the selected camera
.
261
263
