ILLUMINATOR BRACKET PRE-ASSEMBLY AND MOUNTING
PRODUCT REFERENCE GUIDE
29
Illuminator Bracket Pre-Assembly and Mounting
The mounting brackets have been designed specifically to quicken, simplify and facili-
tate vision system mounting.
These brackets have universal mounting configurations and reference slots for all stan-
dard mounting angles allowing all of the s
tandard Camera mounting positions to be
made without the use of special tools.

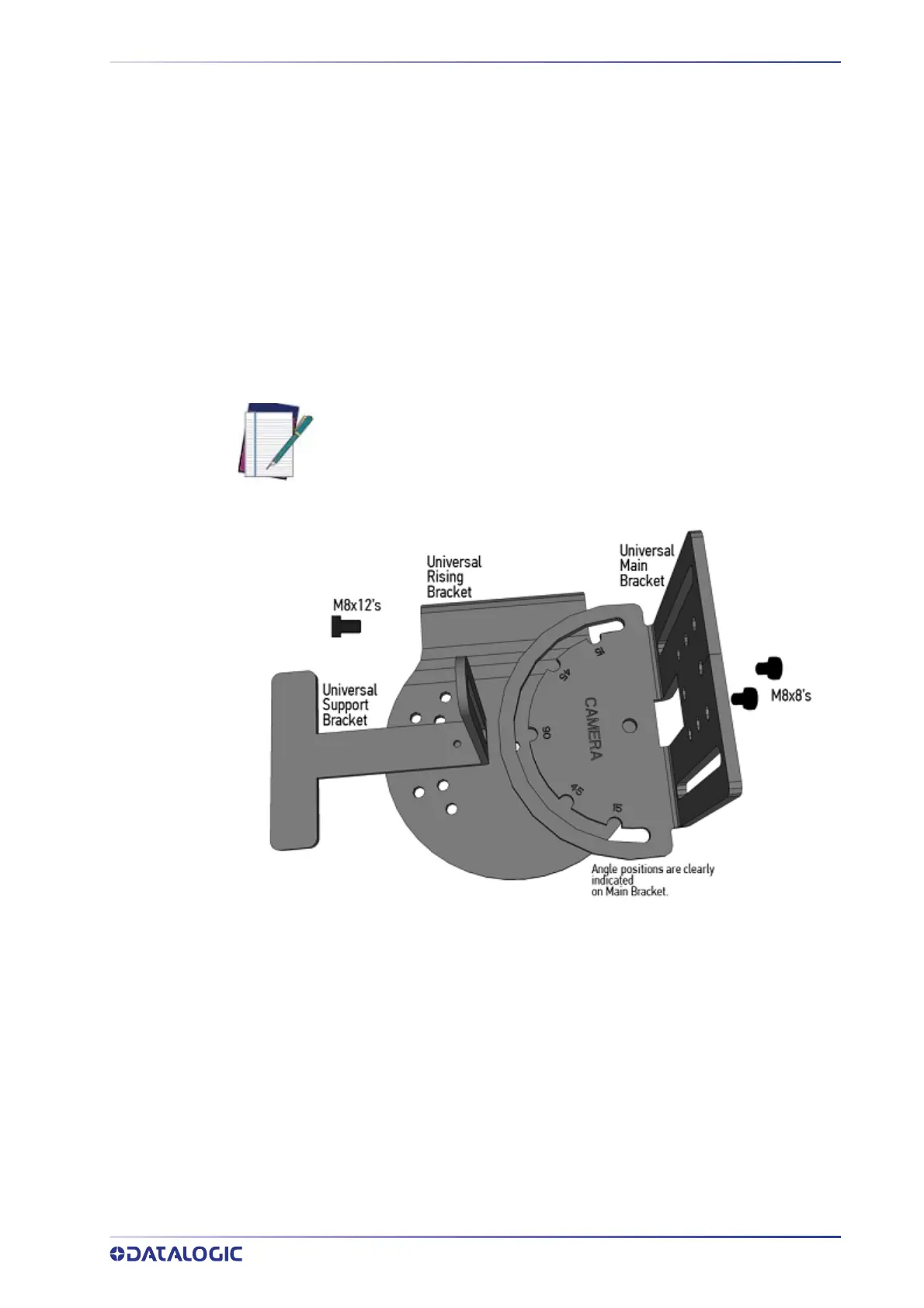

The Illuminator Bracket kit included with the Camera contains:
(2) ST-0871 universal main brackets
(2) ST-0326 universal support brackets
(2) ST-0872 universal rising brackets
(4) M8x8 bolts (for support t
o main bracket assembly)
(8) M8x12 bolts (for illuminator to main bracket assembly)
NOTE: Be sure to use the M8x8 (short) bolts when mounting the support
brackets to the main bracket. Longer bolts will pass through the other side
of the main bracket, interfering with the illuminator body.
