E-GENIUS
314
AV7000 LINEAR CAMERA
Once button is pressed, the cycle of LEDs activation is as follows:
Test Mode

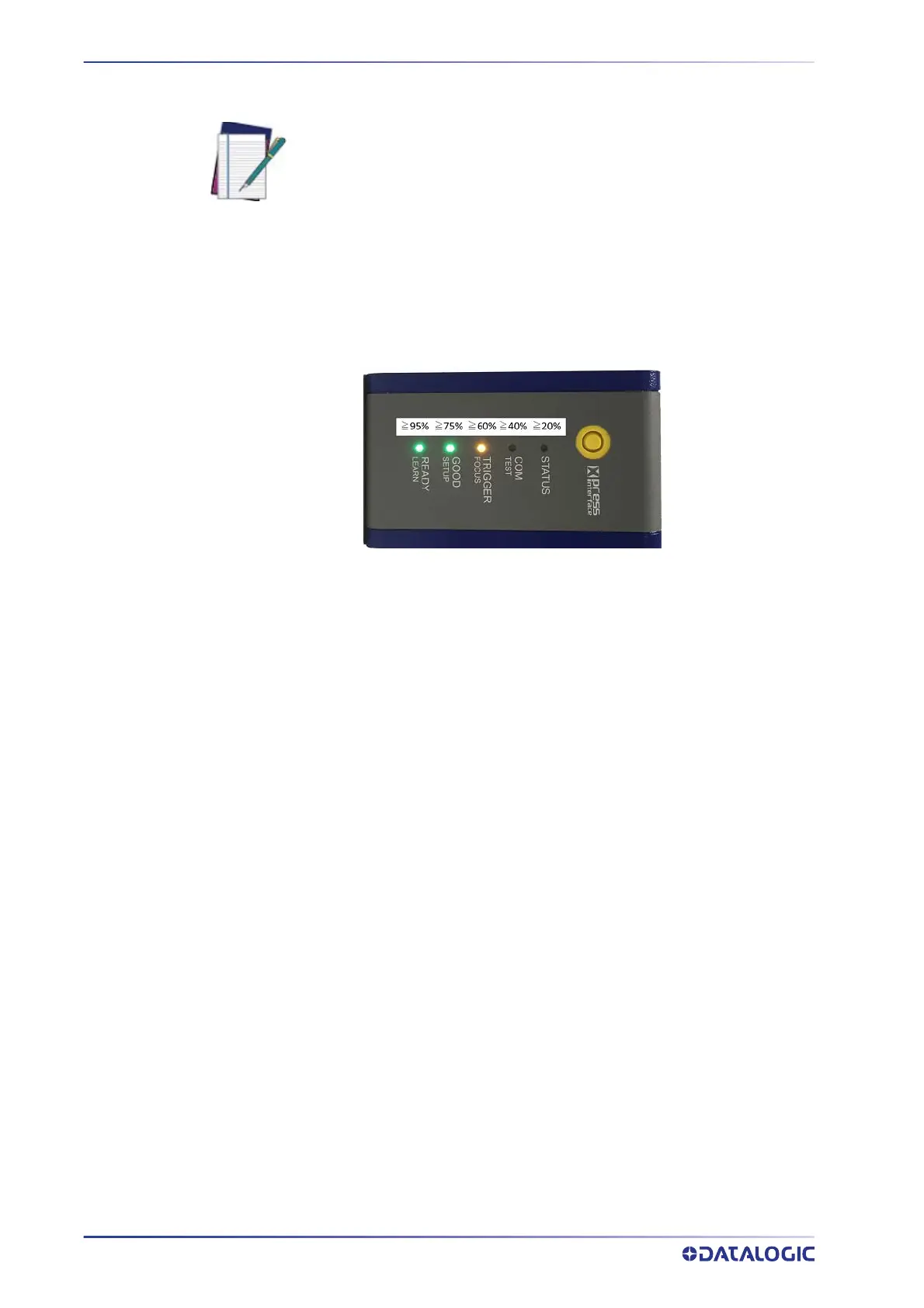

Once entered, the Bar Graph on the five LEDs is activated and if the camera starts read-
ing codes the Bar-Graph shows the Good Read Rate. The Bar Graph has the following
m
eaning:
In case of a NO READ, only the Status LED is on and it is blinking. To exit the Test Mode,
press the X-PRESS push button once.
Test Mode will timeout in 4.5 minutes after the last barcode is decoded and revert back
t
o Operating Mode.
If the Xpress web interface is active, the LEDs will flash four times indicat-
ing
it is disabling the active interface. The hardware interface returns to its
initial state for regular access.
