BOLT THE BRACKET TO TH
E MOUNTING STRUCTURE
PRODUCT REFERENCE GUIDE
41
Bolt the Br
acket to the Mounting Structur
e

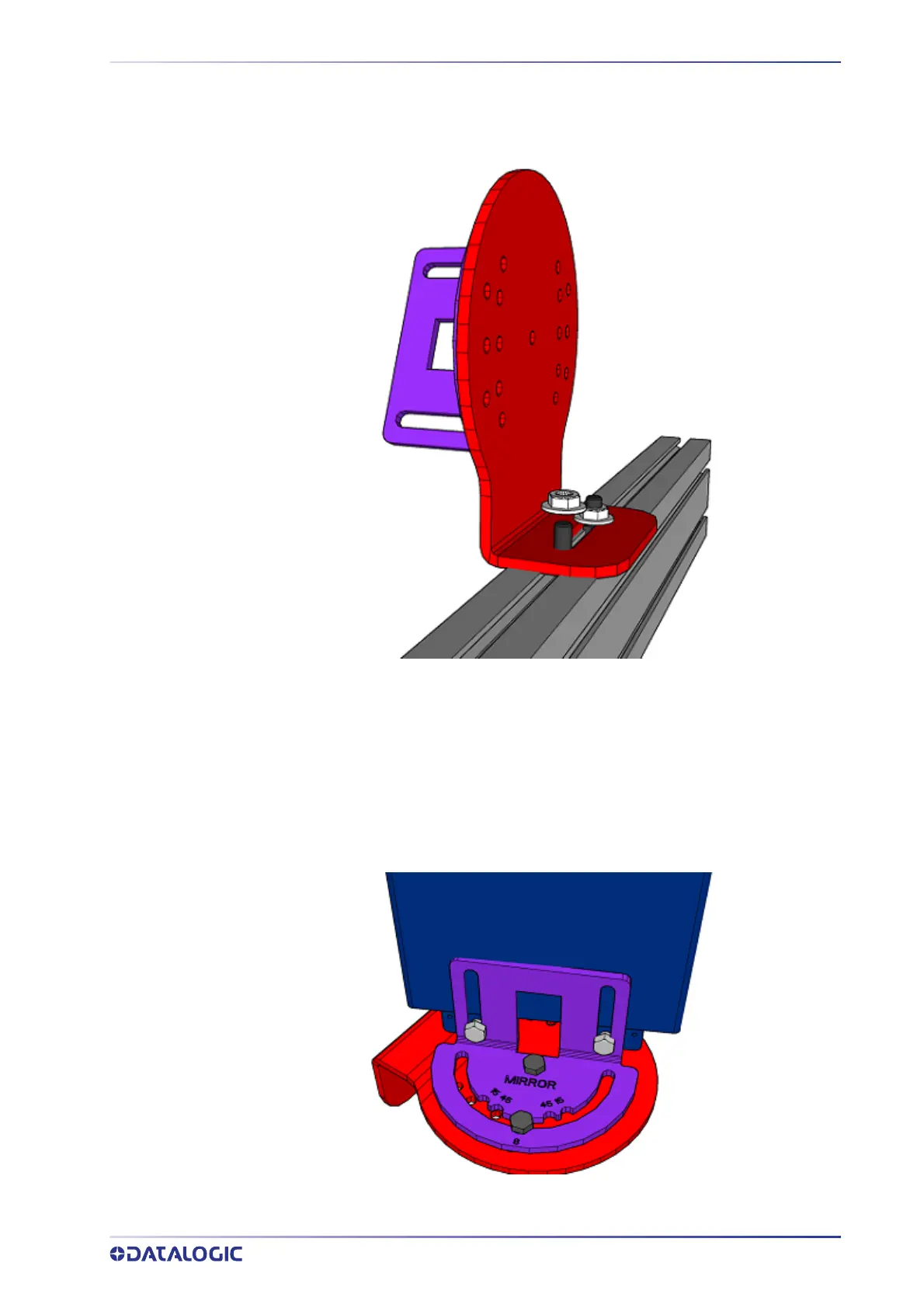

Bolt the Rising brack
et to the mounti
ng structure with T
-bolts,
as shown.
Bolt A
V7000 Mir
r
or to Main Brack
et
A
ttach the mirror to the main br
ack
et and tighten. For ease of positioning, mak
e sure
the center bolt is tightened so y
ou feel the mirror is in place and secure, but you can still
rot
ate the br
acket t
o its correct angle.
8 degrees
60
62
