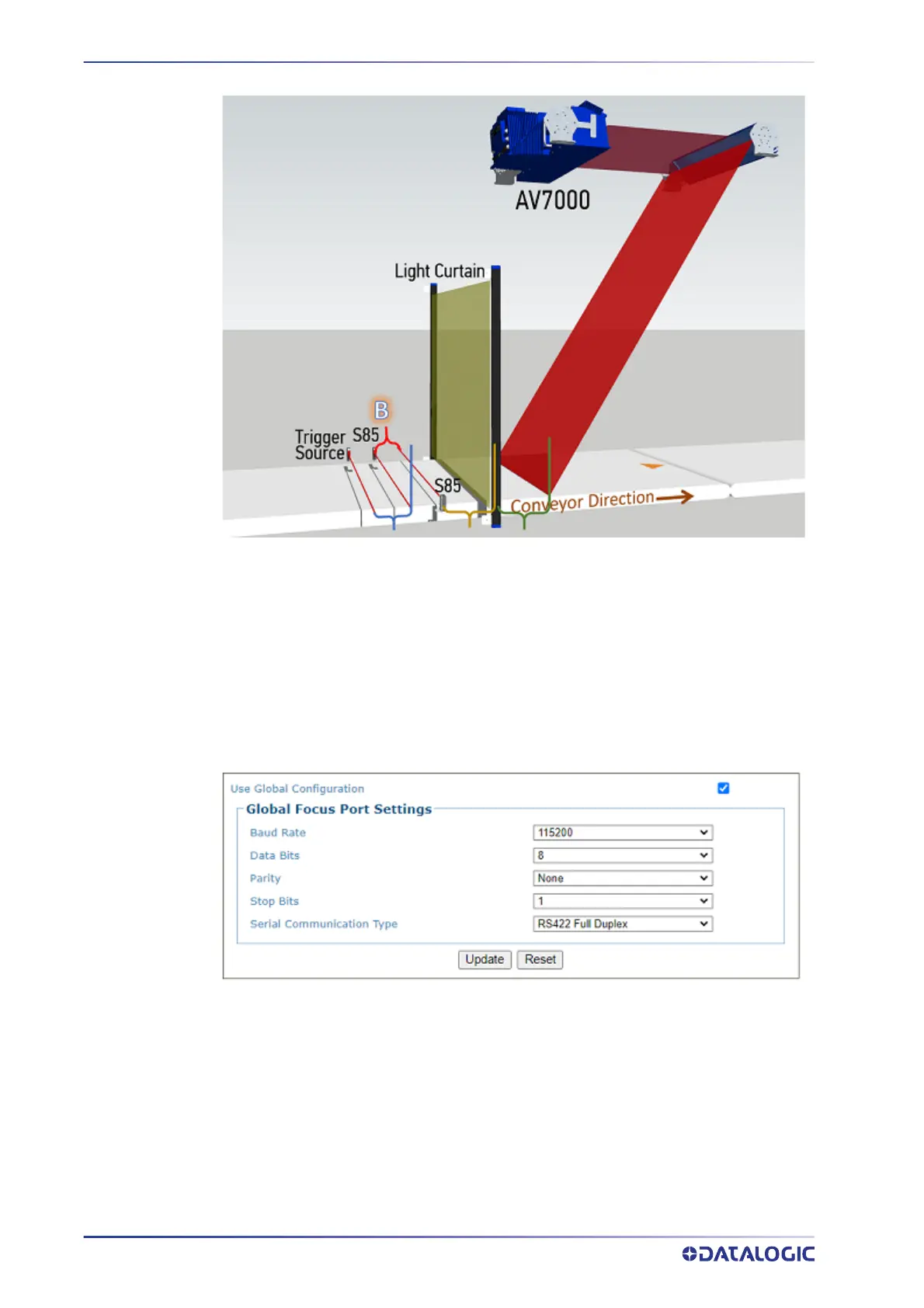

FOCUSING SETUP AND CALIBRATION
366
AV7000 LINEAR CAMERA
1. Mount the S85(s) and DL light curtain (if required), as previously described.
2. Connect the S85(s) to the focus serial port of the controller AV7000 in the tunnel.
3. If two S85’s are used, one S85 needs to be on the left side of the conveyor and the
oth
er on the right side. The left S85 is connected to the left side camera, the right
S85 is connected to the right side camera.
4. Set the focus serial port on each camera with an S85 connected, to RS422 – 9600 8
N 1.
5. The tach controller camera (with or without an S85 connected) tracks the con-
nected S85’s and DL light curtain to a point that is 127mm past the S85/LC that’s
loc
ated the furthest downstream from the PE (and closest to the first camera scan-
line).
S85 Setup and Calibration
To calibrate the S85 Distance Sensors, follow these steps:
Make sure to connect the correct S85 to the correct camera.
