MANUAL MOUNTING CALIBRATION
240
AV7000 LINEAR CAMERA
MANUAL MOUNTING CALIBRATION
• “e-Genius Calibration Presets” on page 240
• “Calibrating AV7000: Static Calibration” on page 242
• “AV7000 Manual Dynamic Calibration” on page 247
• “Dynamic Read Test” on page 256
• “Other Camera Checks” on page 257
e-Genius Calibration Presets
Before physical calibration is begun, a few settings need to be confirmed or modified in
e-Genius. Your PC’s IP address needs to match the camera system’s IP Address range,
see section for information on connecting a laptop to the AV7000.
System Info: Bring Each Camera into the Network
When power is applied to the AV7000 scan tunnel for the first time each camera will
n
eed to be brought into the sync network using the
e-Genius.

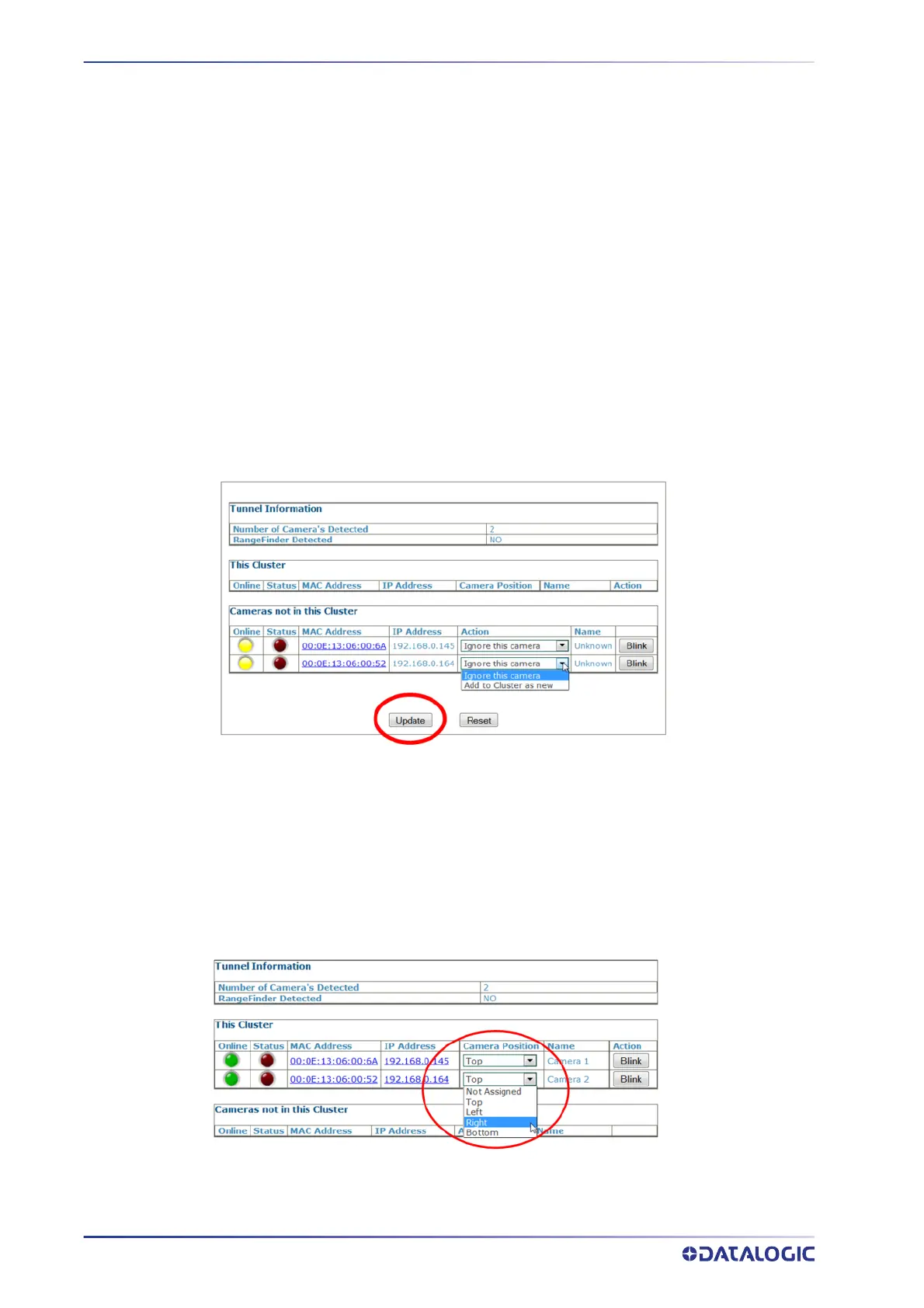

1. From the menu tree, navigate to the Modify Settings | System Info. The System
Info Page opens.
2. From the Action drop-down list, select the Add to Cluster as new.
3. Click Update to add the camera to the This Cluster table.
4. Once each AV7000 has been added under
This Cluster, its mounting positions will
need to be identified. Click
Blink in a camera’s row in the table. That camera’s illu-
mination will light.
5. Once the camera has been identified, select its mounting position from the
Cam-
era Position drop-down list.
6. Click Update to save the configuration
