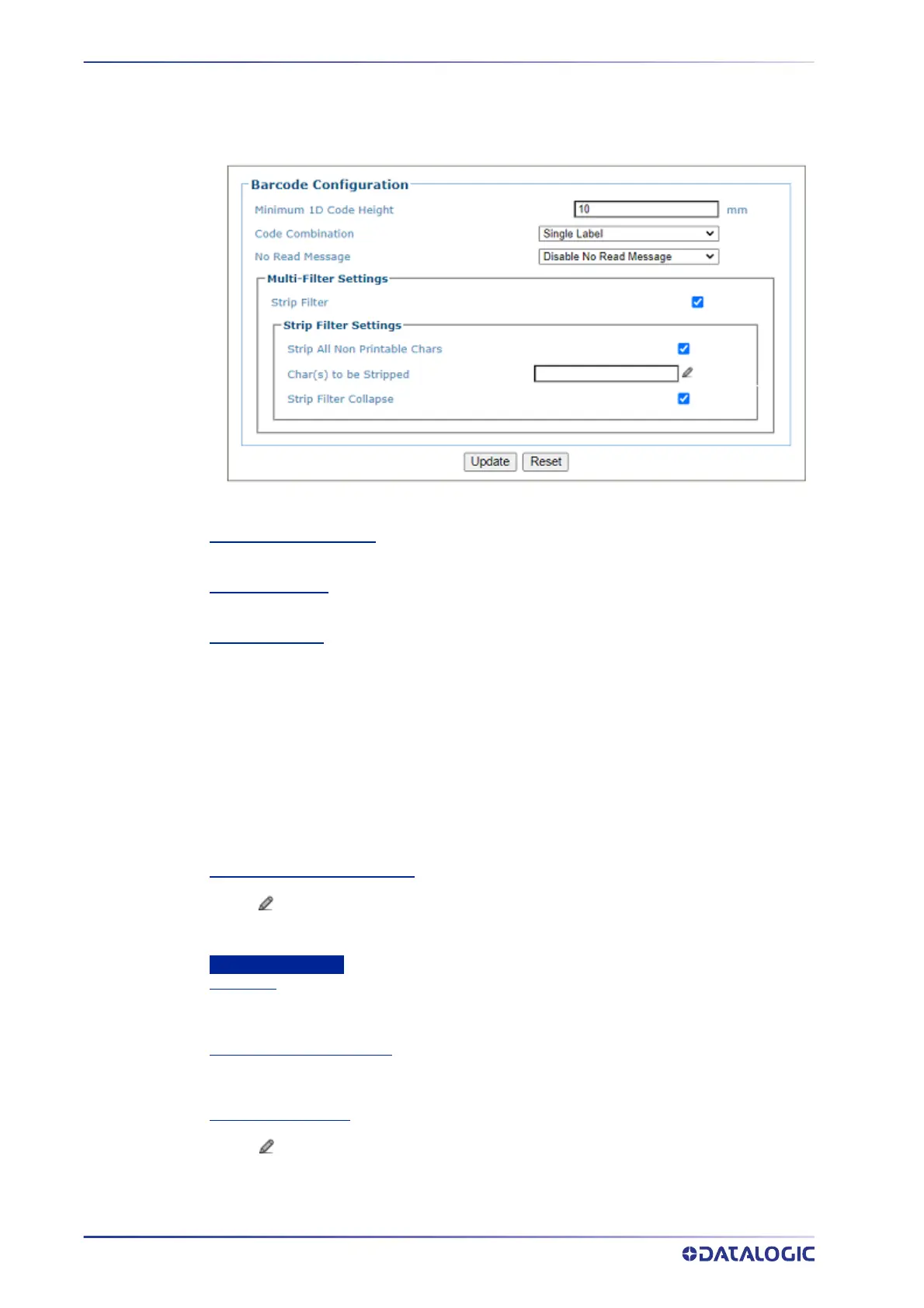

When Single Label has been selected from the Code Combination drop-down list, the
Barcode Configuration window reveals related input fields.
1. Enter the appropriate information in the form as described below:
Minimum 1D Code Height
Enter the Minimum Code Height in the field provided (mm [in]).
Code Combination
Single Label has been selected.
No Read Message
Select Disable No Read Message, Global No Read Message, or Local No Read(s)
Message from the drop-down list. The No Read condition occurs whenever a code cannot be
read or decoded.
Disable No Read Message: The No Read Message is not transmitted.
Global No Read Message: The No Read String will be sent if the barcode reader is unable to
decode one or more barcodes in the reading phase. When multiple codes are enabled in the
Barcode Settings Table, and not all of the codes are read within a trigger cycle, a single
Global No Read message is transmitted to the host.
Local No Read(s) Message: This option is used when Standard Multi Label or Code
Collection is selected. A Local No Read message is a configurable No Read message
associated with each individual code enabled in the Barcode Settings Table.
No Read String (max. 128 chars)
Click to “Enter Text with the Text Entry Tool” on page 92 and create a string to be
displayed when
Global No Read Message is selected from the No Read Message drop-
down list.
Multi-Filter Settings
Strip Filter
Select the check box to display the Strip Filter options. This filter, when enabled, allows the
elimination of characters not managed by the host.
Strip All Non Printable Chars
Select the check box to remove all non- printable ASCII characters from the code (000-020 and
127).
Char(s) to be Stripped
Click to “Enter Text with the Text Entry Tool” on page 92 and enter specific
characters to be stripped from the code.
