AV7000 LINEAR CAMERA
CONNECTING A PC TO THE AV7000
During initial setup, a PC (laptop) may be connected to the AV7000 with an RJ45 cable.
Connect an Ethernet cable from the HOST NET or IMAGE NET port of the AV7000 to the
Ethernet port of your PC. For information on connecting to e-Genius, see Chapter 4.
POWER CONNECTOR PIN-OUT TABLE (CUSTOM POWER
SUPPLY)
A recommended power supply and cabling is available for the AI7000 Illumination,
which then supplies the AV7000 Camera. However, if your installation requires custom
power supply wiring, the pin-outs of the AV7000 camera power connector are provided
below.
24V - - - 4A MAX
POWER Input
Unit Connector
(sh
own)
Mating cable connector
4-PIN M12-TYPE
MA
LE
4-PIN M12-TYPE
FEMALE
MALE 4-PIN M12-TYPE

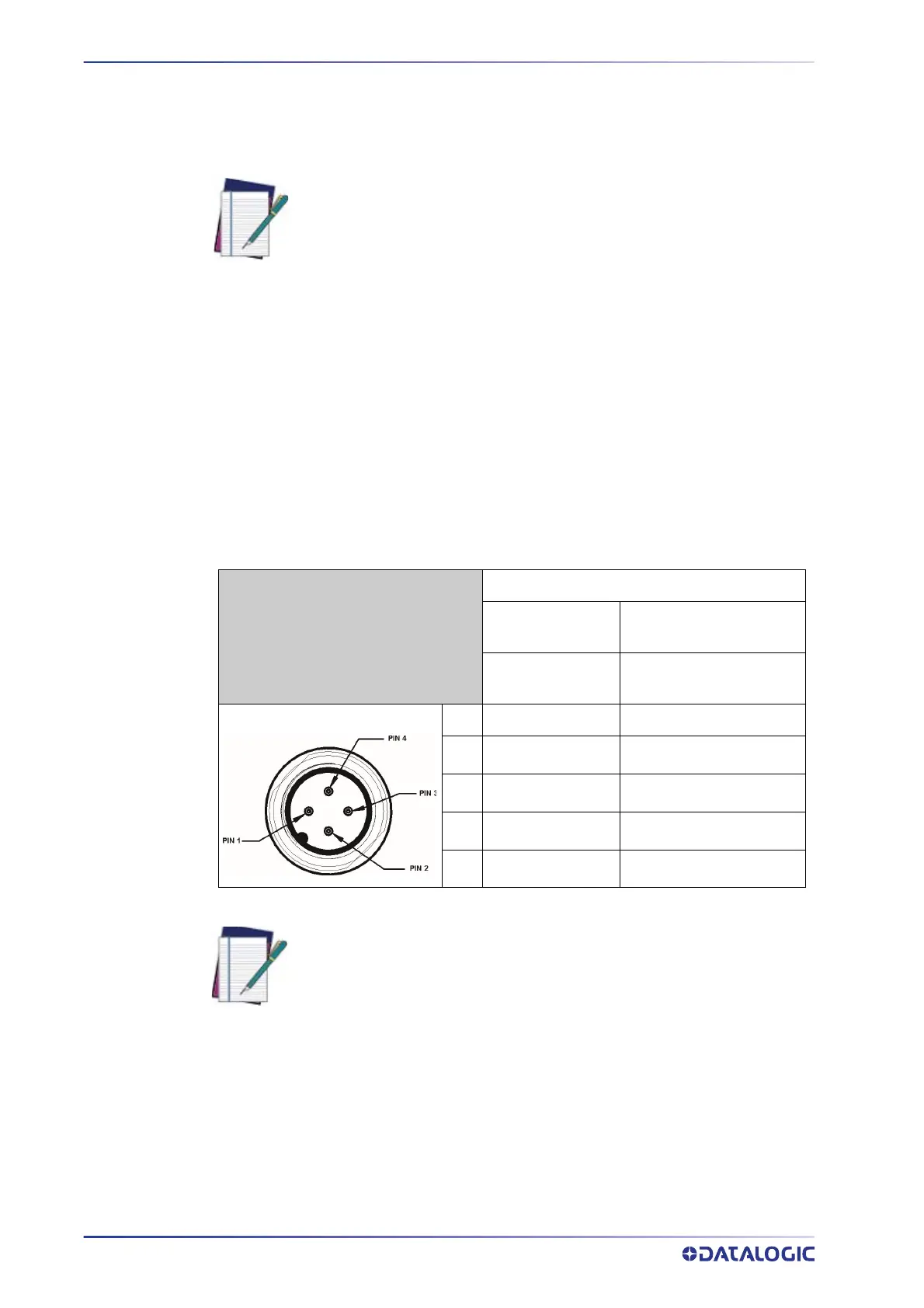

Pin Name Function
1 GND Input Power Ground
2 +24 VDC Input Power + 24Vdc
3 +24 VDC Input Power + 24Vdc
4 GND Input Power Ground
NOTE: Parameters for tunnel are set up in the MASTER AV7000 only.
IP Address for HOST NET and IMAGE NET are as follows:
HOST NET – 192.168.3.10
IMAGE NET – 10.0.40.20
NOTE: When using an AI7000 Illumination and AV7000 Camera, no power
supply is re
quired for the CBX connection box. All power and some commu-
nication options are fed to the CBX through the AV7000’s 19-pin I/O con-
nector to the CBX 25-pin connector using the cable provided.
