SETUP AND CALIBRATION
358
AV7000 LINEAR CAMERA

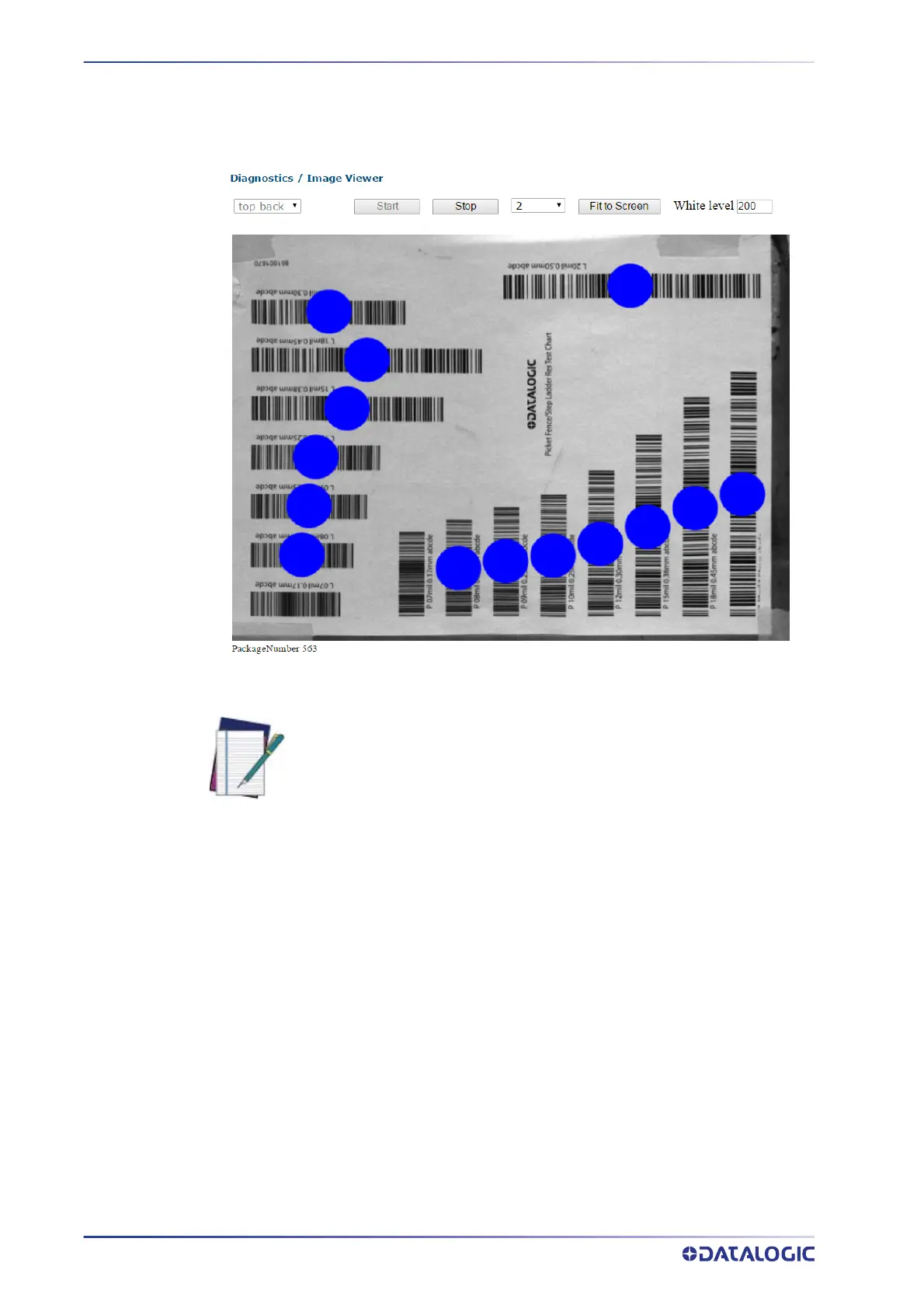

The image below is an optimized focus example with the same number of barcodes
decoded in ladder and picket fence orientation. However, there may be times when one
orientation will have one more barcode decoded than the other.
5. Continue running the box and making adjustments until the barcodes are in focus.
Make sure that barcodes from both columns have been read.
FINAL ACCEPTANCE TEST
Dynamic Read Test
Use the smallest, medium, and largest-sized system boxes for the dynamic read test.
• System smallest box: Used to test the far read distance from the camera
• System medium box: Used to test the center of the read area
• System tallest box: Used to test the near read distance from the camera
Code Placement
Obtain system code samples of various density and contrast.
Position the barcode on the surface of the box in the following manner (sample)
Remove the test barcode from the symbologies menu when completed.
