220 AV7000 LINEAR CAMERA
Save No Reads
Select the check box to save no read images.
Save Multiple Reads
Select the check box to save multiple read images.
Save Good Reads
Select the check box to save good read images.
Save Partial Reads
Select the check box to save partially read images.
If this camera contributed to a Good Read or Mult Read, the condition will be evaluated as true
for this camera. Each camera evaluates a parcel based on what it read only (not what the entire
cluster read).
Save Significant (per camera: if contributed to GoodRead or MultRead)
Select the check box to save an image only if it has contributed to a GOOD-READ or MULTI-
READ result. This helps cut down on the amount of storage used.
Example: If the parcel is GOOD-READ or MULTI-READ, at least one barcode must have been
decoded in an image for it to be considered “significant.”
Minimum Height of Object to Save
Enter a minimum package height from which images will be saved. This is used to avoid saving
images of various objects or debris caused by false triggers.
Image Frame Saving Options
Frame Save Criterion
AV500 Only
Since the camera is an area camera there may be a large number of images during each trigger
cycle. It may be necessary to limit the number of images saved. The Frame Save Criterion allow
for the limiting of the number of frames saved. Select one of the following from the drop-
down:
•All Frames
•Frames with Decode Results

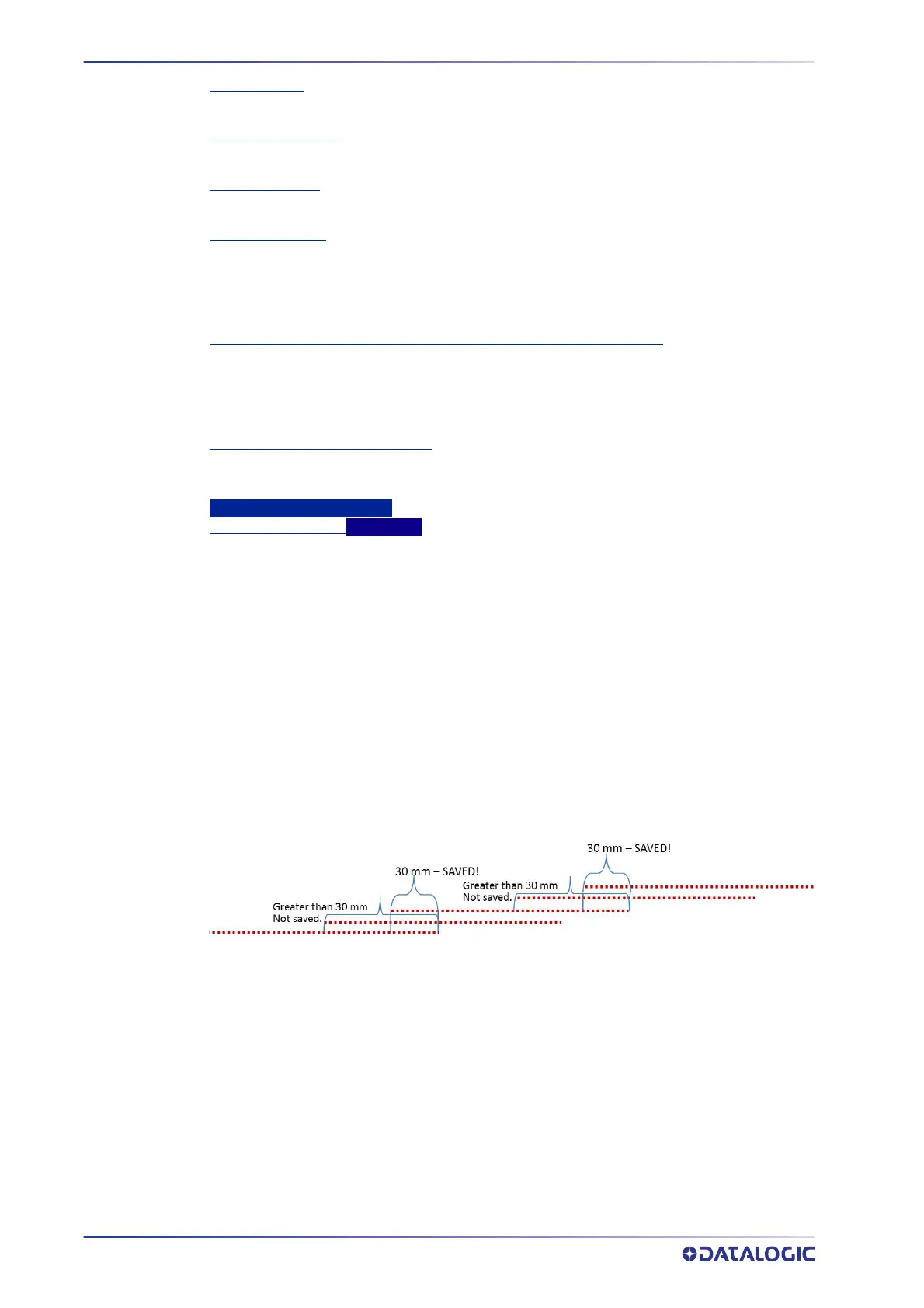

•Frames with Minimum Overlap: Specify an amount in mm that frames must overlap to
be saved. In the example below a 30 mm overlap has been defined
When a position sensor is connected and you are using PackTrack Mode, if Minimum Frame
Overlap is selected it also reveals additional image saving options.
It only starts saving images when a parcel's leading edge is a specified distance away before
exiting the frame, and stops saving images when a parcel's trailing edge is a specified distance
after entering the frame.
If the entire parcel is visible in one frame, only that one frame is saved. Extra frames are saved
to make sure no part of a parcel's top surface is missed.
•
Every Nth Frame: Specify which frame of the 32 frames per second to save.
