MANUAL MOUNTING CALIBRATION
PRODUCT REFERENCE GUIDE
255

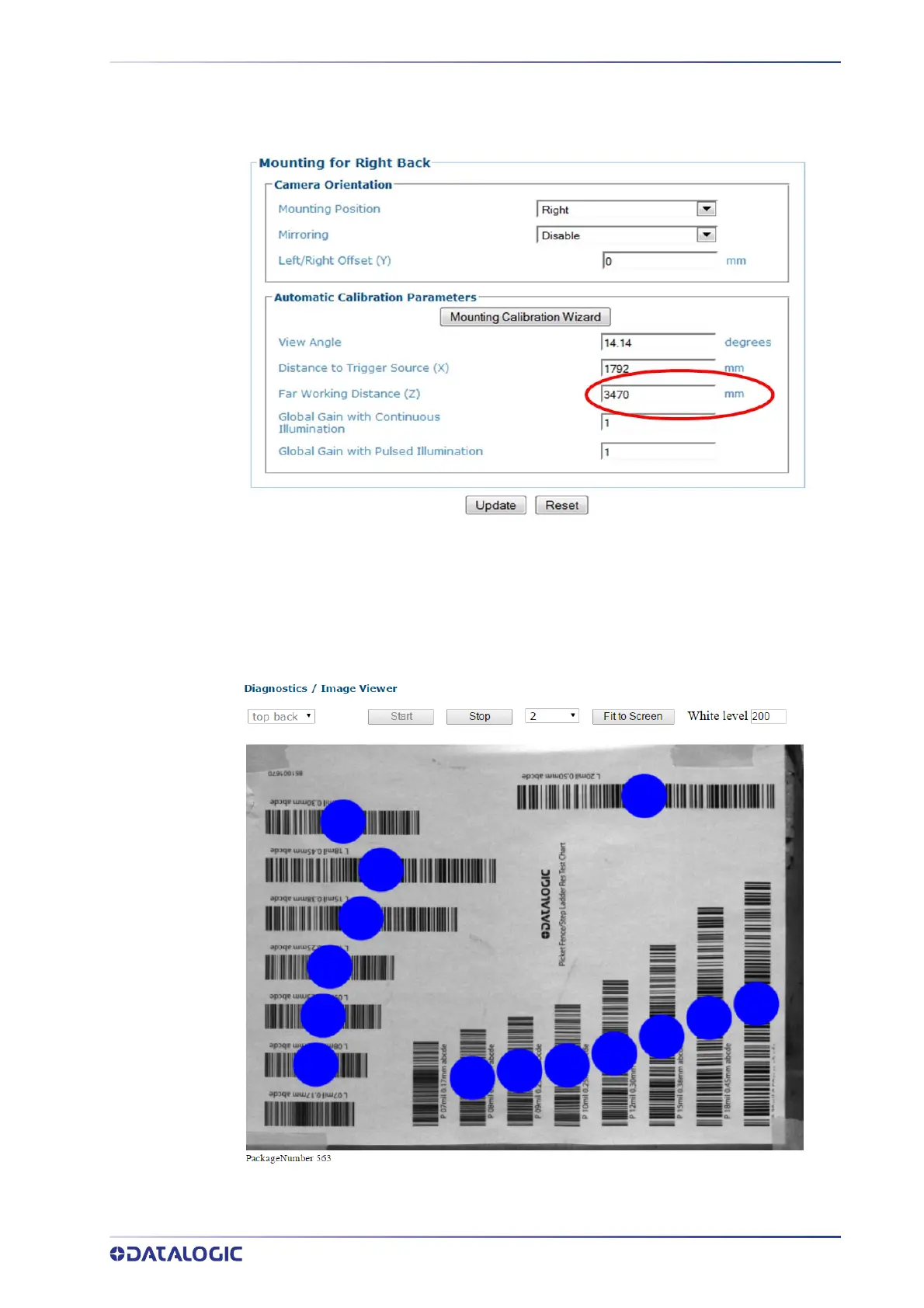

4. In the menu tree, navigate to Modify Settings | Device Setting | Camera n (unit
being calibrated) | Mounting. The Mounting window opens.
5. Adjust the Far Working Distance (Z) parameter incrementally and run the box
through the system again.
The image below is an optimized focus example with the same number of barcodes
dec
oded in ladder and picket fence orientation. However, there may be times when one
orientation will have one more barcode decoded than the other.
