AV7000 LINEAR CAMERA

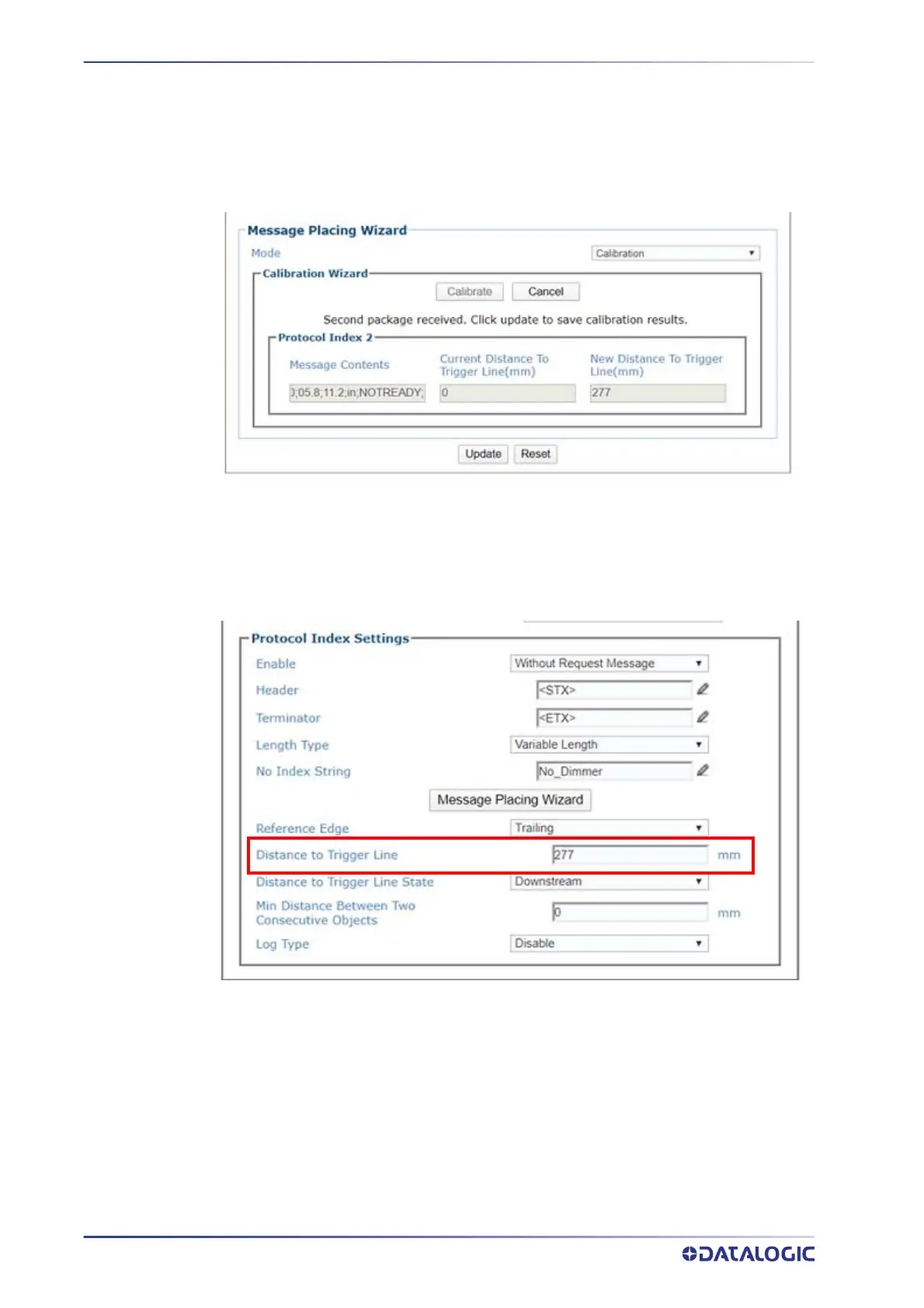

4. Send a second, different sized package down the conveyor. The message contents
will update with the new messages, and “
New Distance To Trigger Line” field is
now filled. A negative number means upstream and a positive number means
downstream. A negative value is not allowed for a Dimensioner, and a warning
message is shown.
5. Click Update if you are satisfied with the results. You can now view the DM3610
operating mode and/or transports Protocol Index page and see the updated val-
ues. If successful this information can be viewed on the
Diagnostics > Systems
Status page too.
