SETUP AND CALIBRATION
348
AV7000 LINEAR CAMERA
2. Turn on the conveyor.

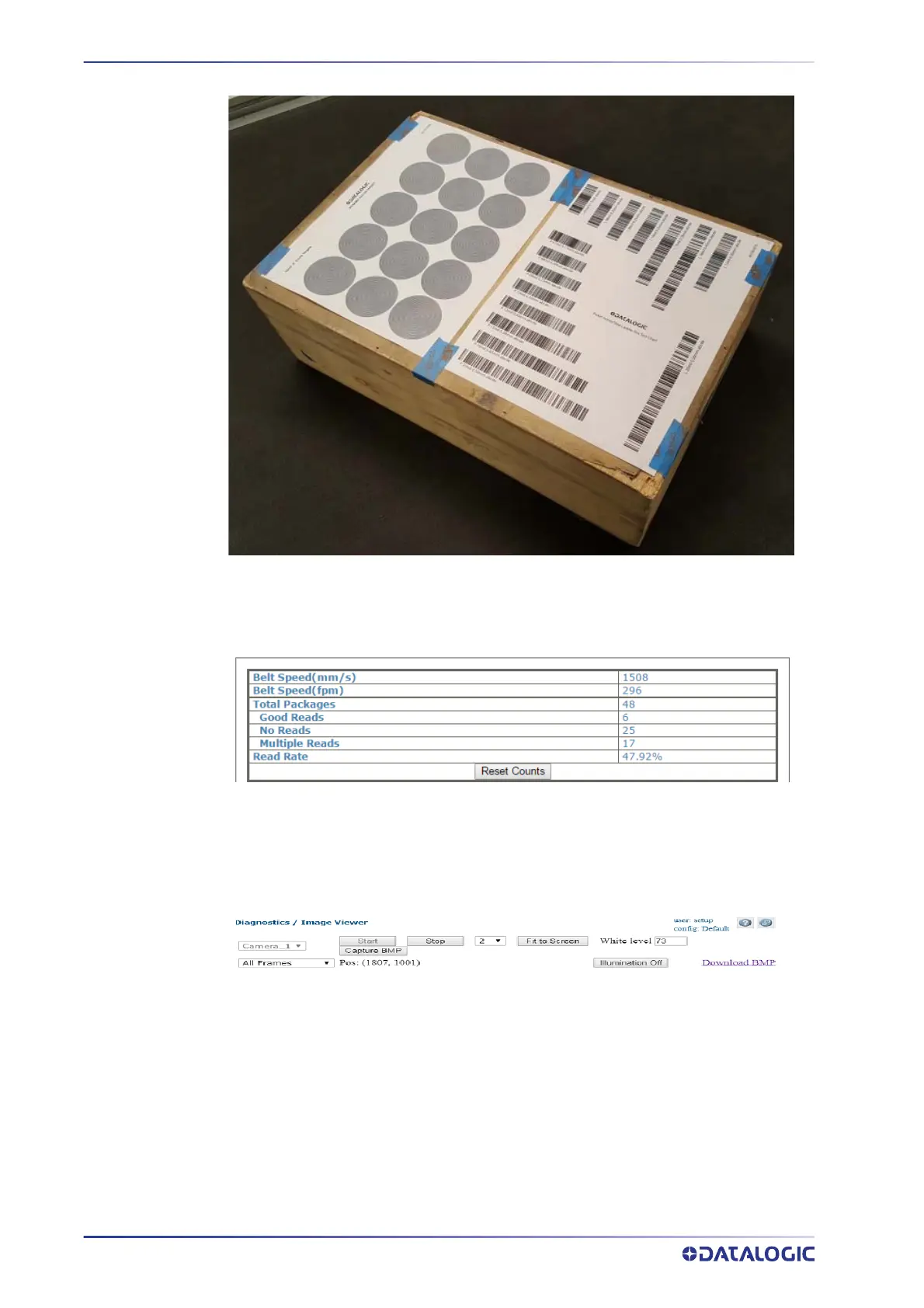

3. In e-Genius, navigate to Diagnostics | System Status and confirm that the belt
speed is correct.
Calibrating Distance to Trigger Source (X)
1. In e-Genius, navigate to Diagnostics | Image Viewer. The Image Viewer window
opens.
2. Select the camera to be calibrated from the first drop-down box.
3. Click S
tart.
4. Send a small box through the system (belt surface for top mount, and farthest dis-
tance from camera for side mount).
The
Image Viewer captures an image of the box. The purple line in the image indicates
the
Focusing Data Transition Point, which should align with the corner of the box.
