SETUP AND CALIBRATION
350
AV7000 LINEAR CAMERA
Calibrating Camera View Angle
After the Distance to Trigger Source (X) is set correctly, set the camera view angle.
1. From the menu tree, navigate to
Diagnostic | Image Viewer. The Image Viewer
window opens.
2. Run a box (TALL box for a top read, and NEAR box for a side read), through the sys-
tem and identify the position of the

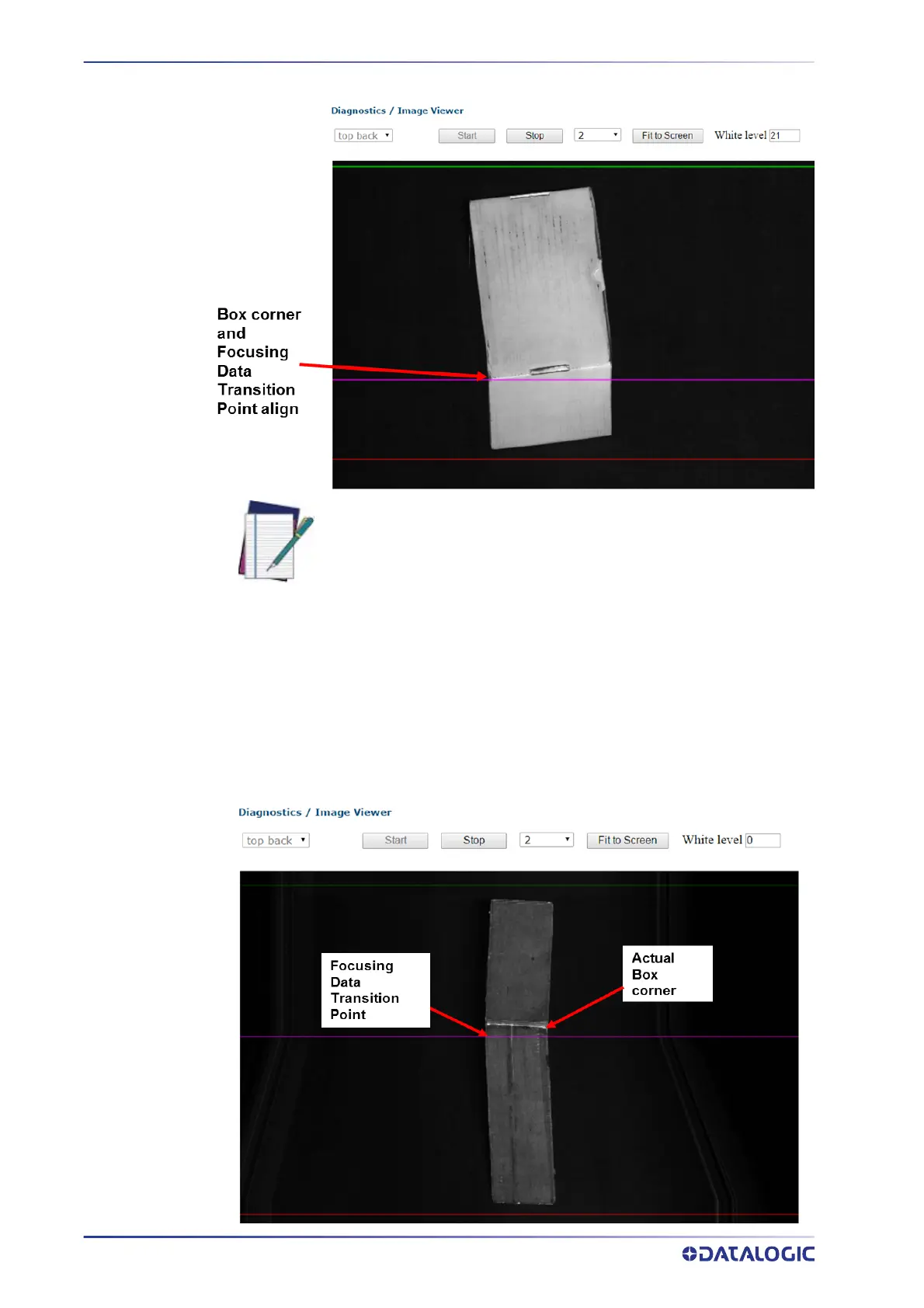

Focusing Data Transition Point (purple line)
in regards to the corner of the box.
The leading corner of the box should align with the purple Focusing Data
Transition Point.
To Next Page
