MECHANICAL INSTALLATION
32
AV7000 LINEAR CAMERA

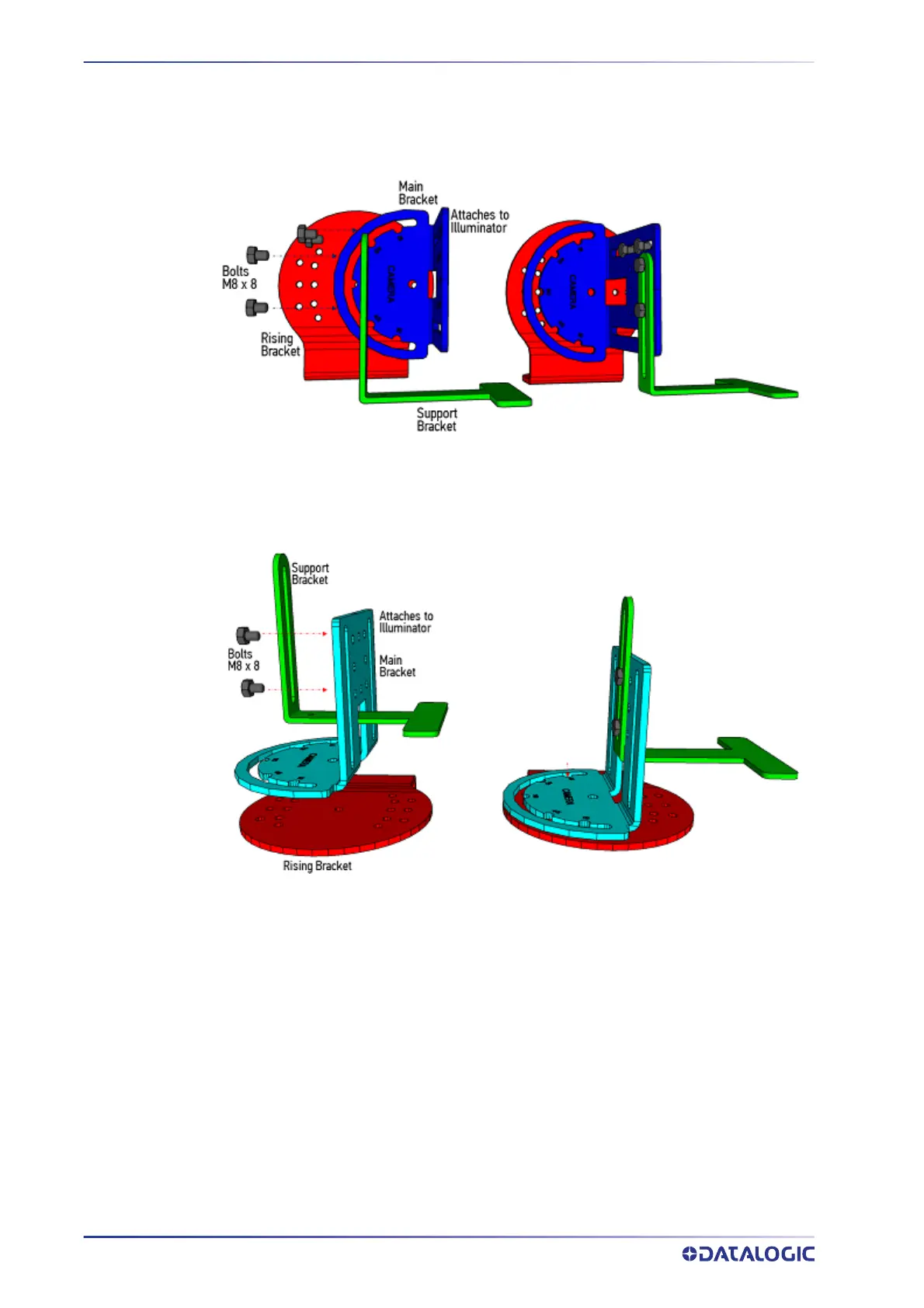

Top mount camera positions require the following pre-assembly of the illuminator
bracket.
Side mount camera positions require the following pre-assembly of the illuminator
bracket.
