202 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Expansion cards and backup units
Example network adapter D2755

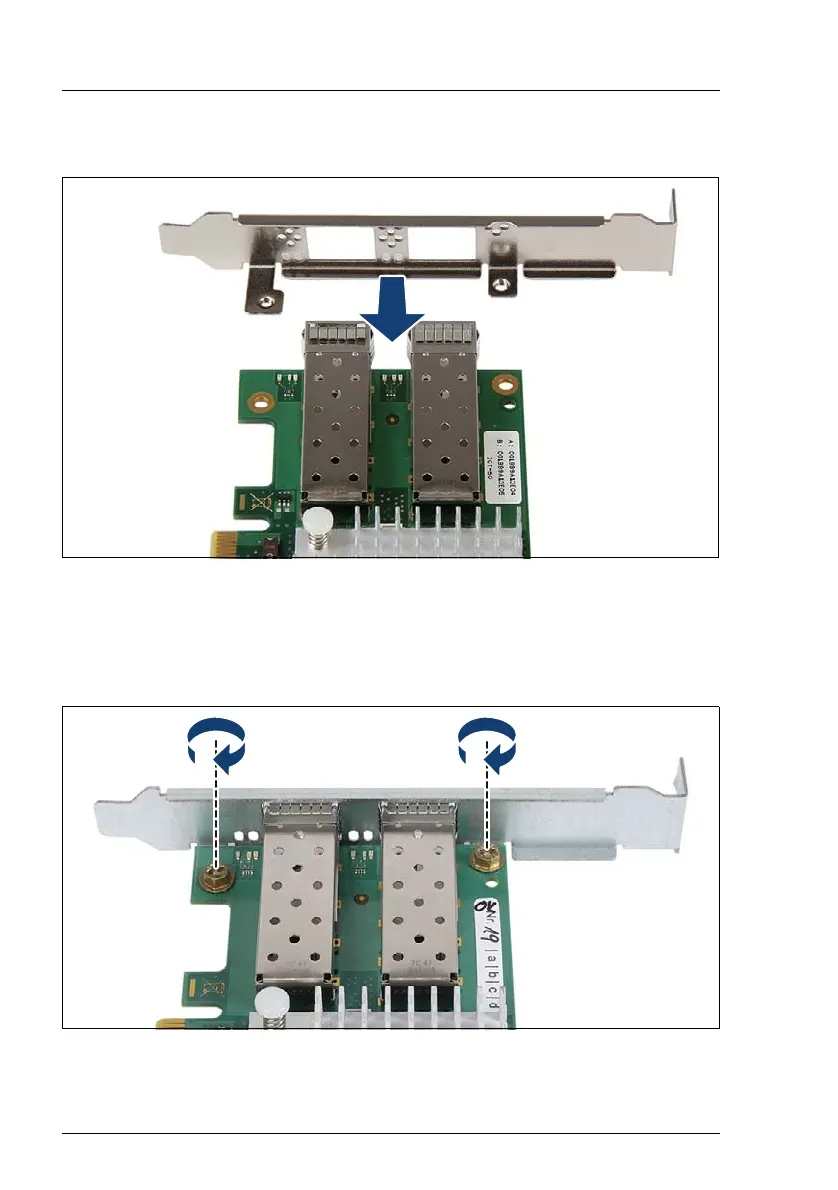

Figure 127: Installing the PCI slot bracket (A)
Ê Place the controller on the mounting tabs on the slot bracket.
Ê Carefully shift the slot bracket towards the controller until the plug shells
engage with the cut-outs in the slot bracket connector panel.
Figure 128: Installing the PCI slot bracket (B)
Ê Secure the slot bracket to the controller with two screws.
