TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 209
Expansion cards and backup units

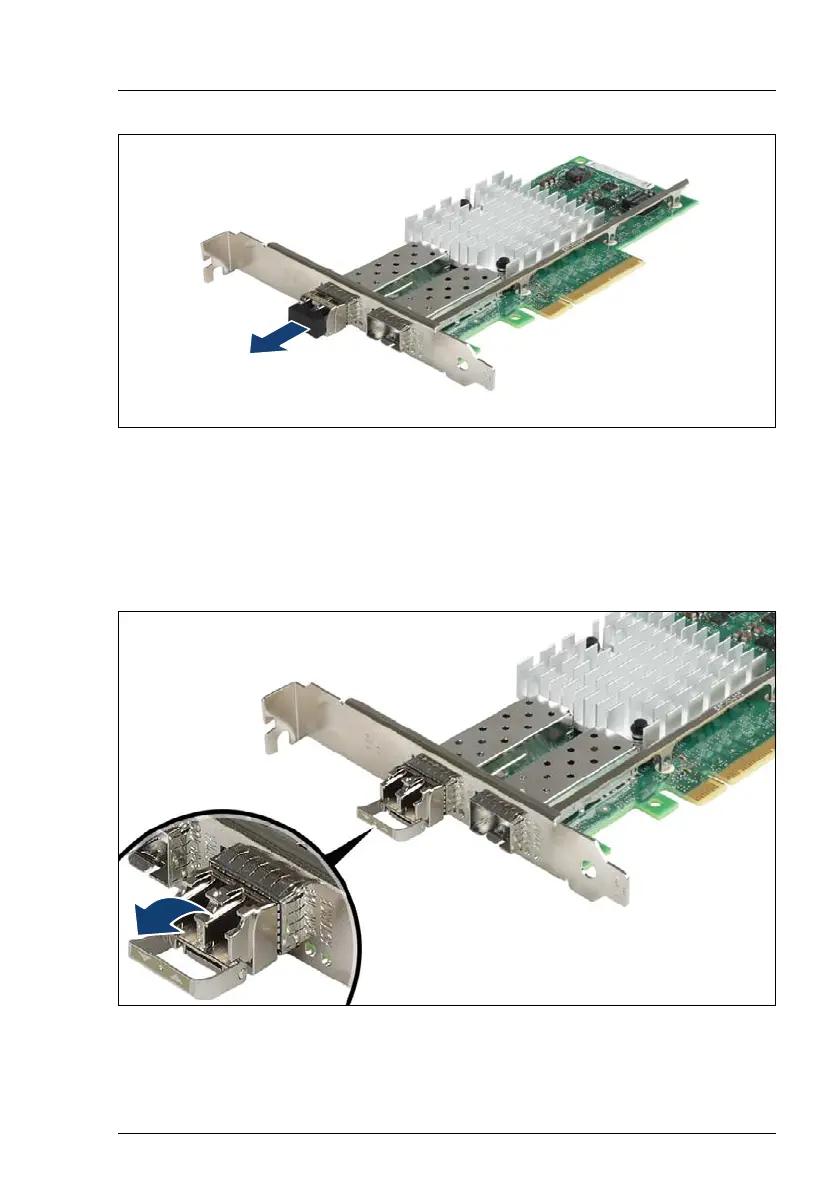

Figure 138: Removing the protective optical port plug
Ê If present, remove the protective optical port plug from the SFP+ transceiver
module.
V CAUTION!
Save the protective port plug for future use.
Figure 139: Unlatching the locking bail
Ê Carefully unlatch and fold down the locking bail on the SFP+ transceiver
module to eject the transceiver from the socket connector.
