210 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Expansion cards and backup units

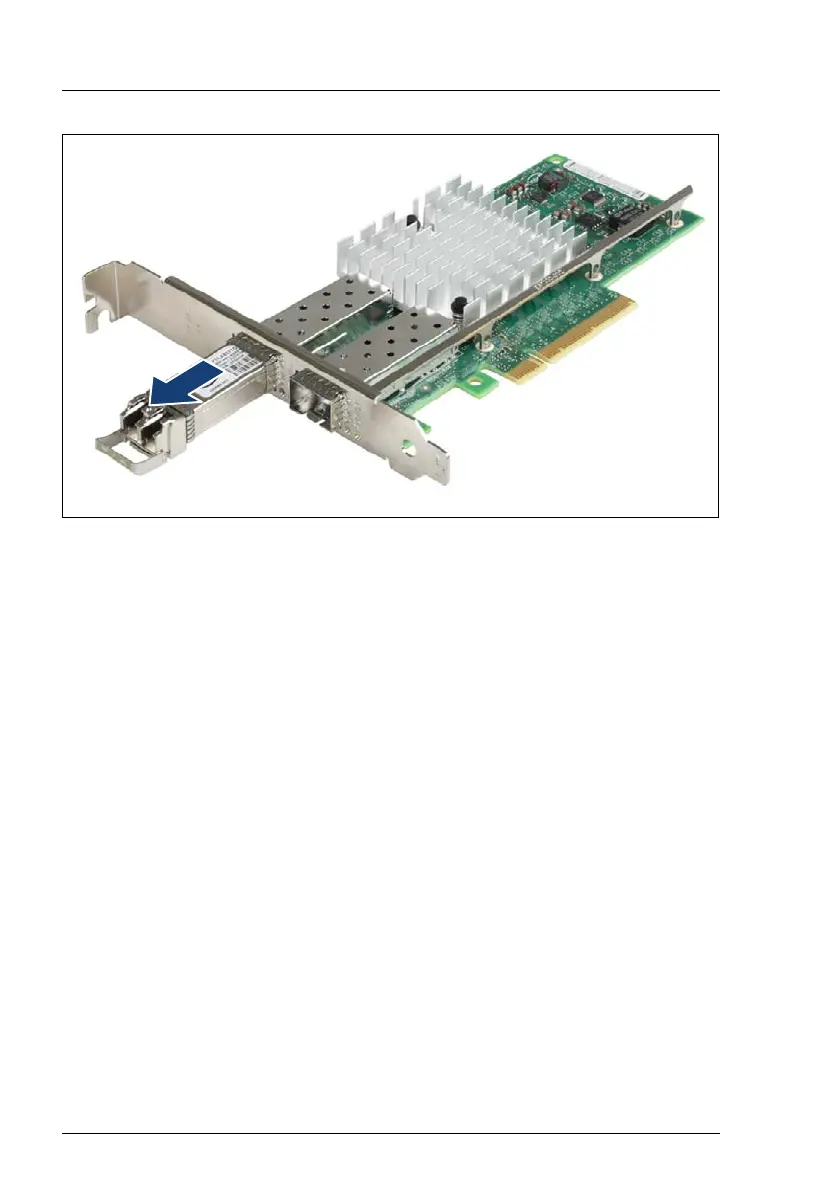

Figure 140: Removing the SFP+ transceiver
Ê Pull the SFP+ transceiver module out of its socket connector.
Ê Reattach the protective optical port plug to the transceiver optical bores.
I Place the removed SFP+ transceiver module in an antistatic bag or
other protective environment.
