280 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Accessible drives and LSD

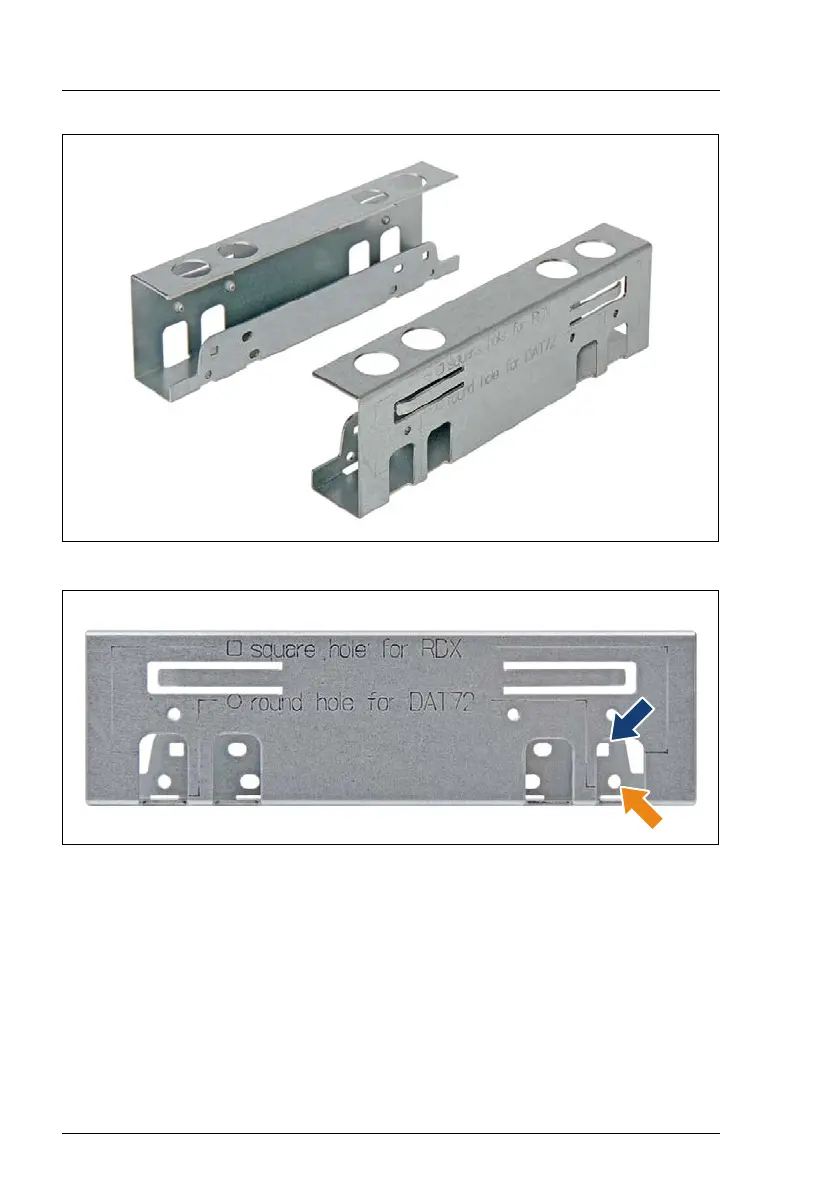

Figure 193: Backup drive mounting brackets
Figure 194: Screw holes on backup drive mounting brackets
Ê Note the screw hole description stamped onto the mounting bracket:
Ê Use the square screw hole for RDX backup drives (see blue arrow).
Ê Use the round screw holes for DAT72 backup drives (see orange arrow).
