TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 281
Accessible drives and LSD

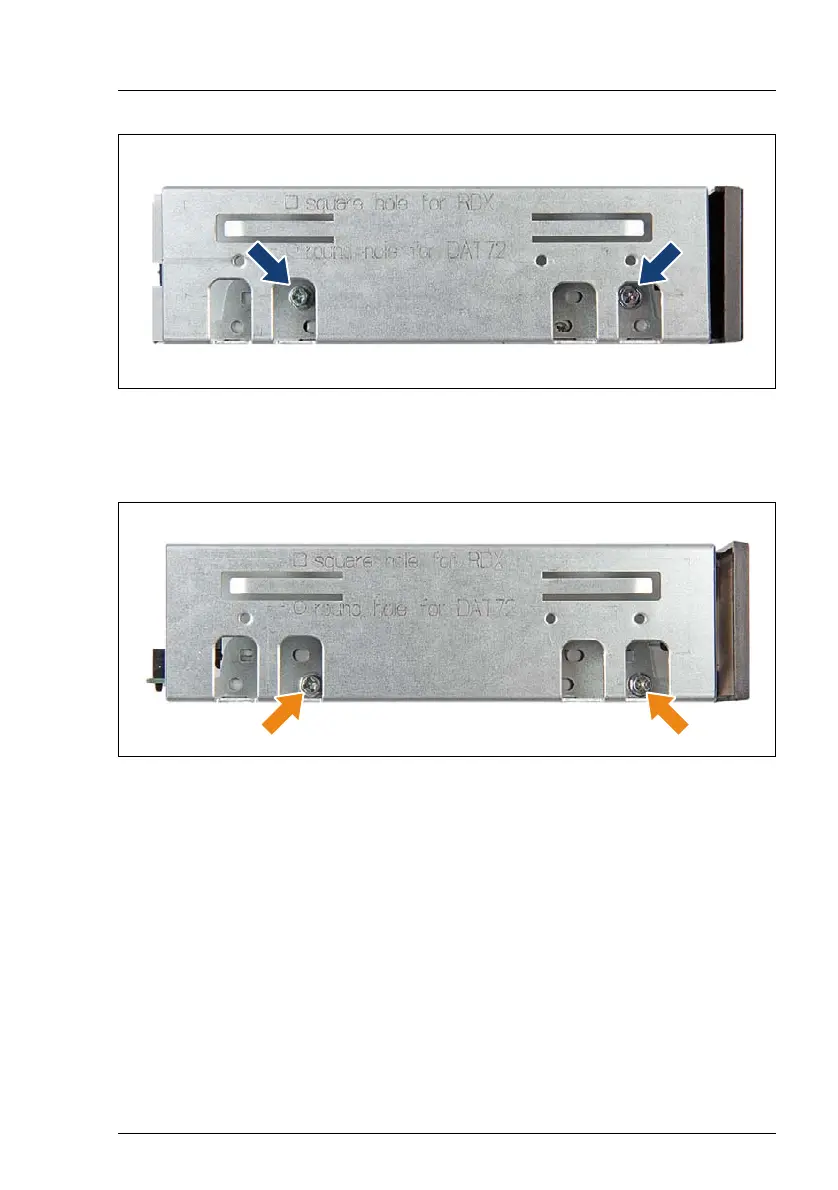

Figure 195: Securing mounting brackets to an RDX backup drive
Ê Secure the backup drive mounting brackets to the RDX backup drive with
two screws per bracket as shown.
Figure 196: Securing mounting brackets to a DAT72 backup drive
Ê Secure the backup drive mounting brackets to the DAT72 backup drive with
two screws per bracket as shown.
