318 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Accessible drives and LSD

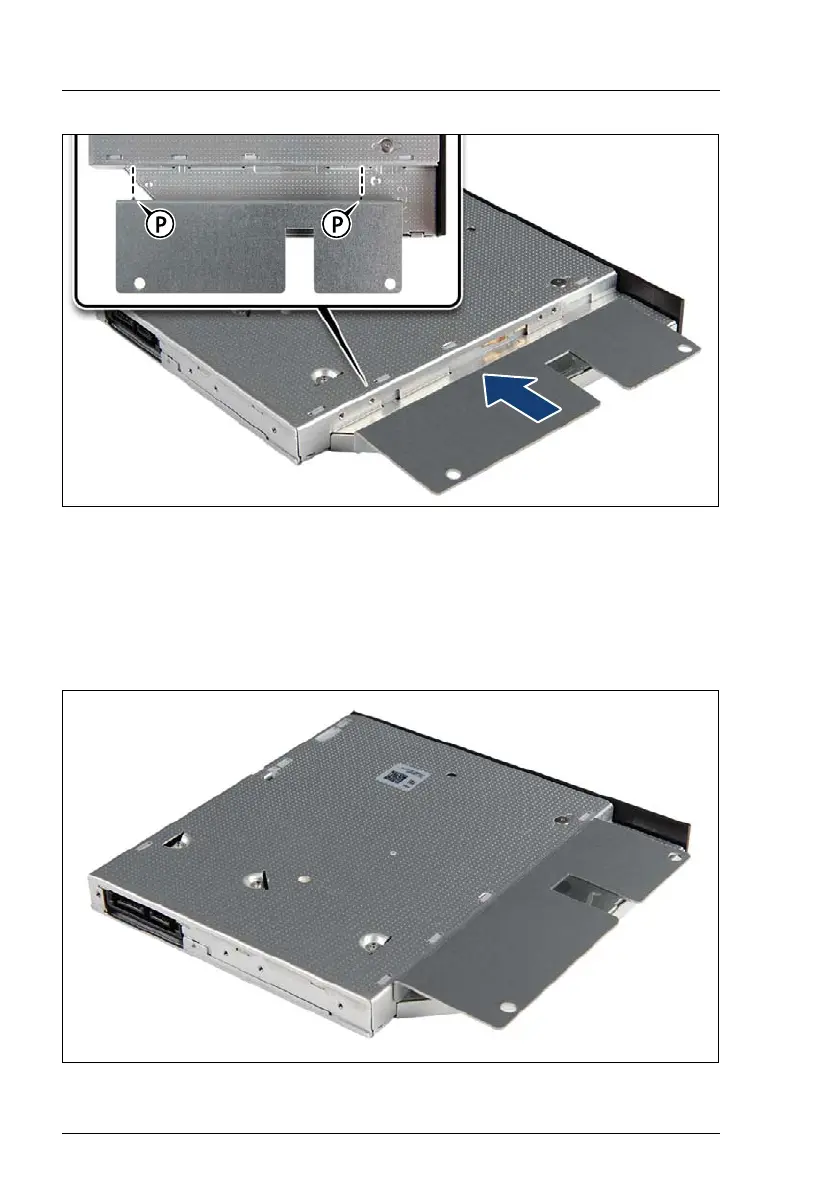

Figure 235: Installing the slimline ODD mounting bracket on the ODD (A)
Ê Turn the slimline ODD upside down.
Ê Fit the mounting bracket on the slimline ODD as shown.
Ê Ensure that the two pins (P) on the mounting bracket properly engage with
the screw holes in the drive.
Figure 236: Installing the slimline ODD mounting bracket on the ODD (B)
